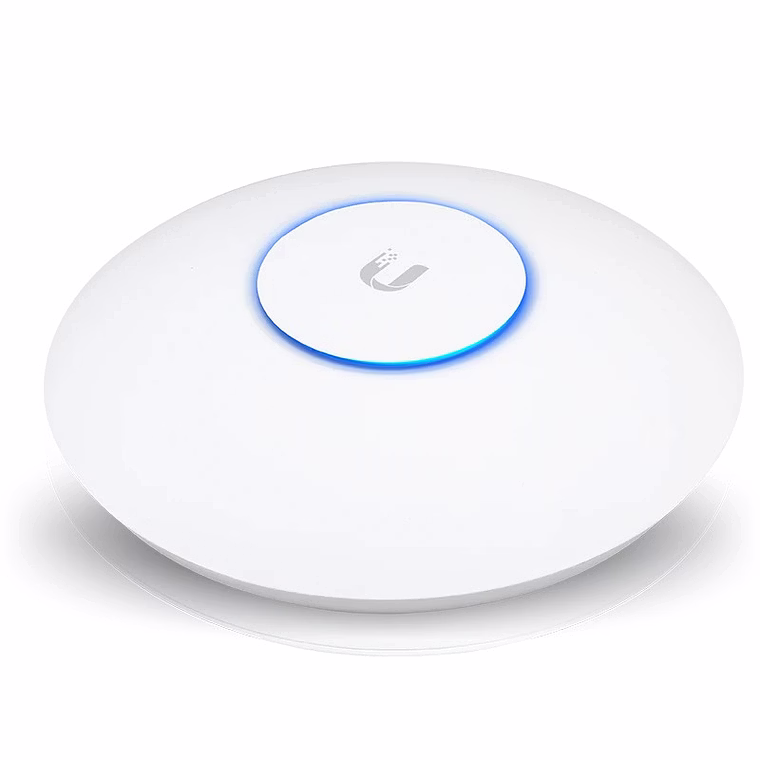

The Ubiquiti UniFi HD Access Point is a high-performance wireless access solution designed for enterprise-level deployments requiring robust, reliable, and scalable Wi-Fi connectivity. Featuring a sleek 220 x 220 x 48.1 mm form factor and weighing approximately 830 grams with mounting kits, this device seamlessly integrates into wall or ceiling installations. The UniFi HD Access Point is equipped with two 10/100/1000 Ethernet RJ45 ports plus one USB Type-C port to offer versatile networking connections. It supports advanced Wi-Fi standards including 802.11a/b/g/n/ac/ac-wave2 ensuring fast and stable wireless speeds, making it ideal for high-density environments such as offices, educational institutions, or hospitality venues. The device incorporates dual-band internal antennas (2.4 GHz and 5 GHz) with dual polarity for enhanced wireless coverage and minimal interference. Powered via PoE 802.3at, it consumes up to 17W of power, simplifying installation by eliminating bulky power adapters. Security is robust with support for WEP, WPA-PSK, WPA-Enterprise, and AES encryption protocols. Certified by CE, FCC, and IC, the UniFi HD Access Point guarantees compliance with international standards. With an operating temperature range from -10° to 70° C and humidity tolerance of 5 to 95% noncondensing, it is suitable for various environments. Its reset button and included mounting kits make deployment and maintenance straightforward. The UniFi HD Access Point stands out for delivering powerful, reliable, and secure wireless networking that meets the demands of modern enterprises.
Key Features
| Features | Description |
|---|---|
| Dimensions | 220 x 220 x 48.1 mm |
| Weight with Mounting Kits | 830 g (29.3 oz) |
| Networking Ports | (2) 10/100/1000 Ethernet RJ45, (1) USB Type-C |
| Antenna Configuration | (2) 2.4 GHz single band dual polarity, (2) 5 GHz single band dual polarity internal antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| Power Method | PoE 802.3at |
| Maximum Power Consumption | 17W |
| Maximum Transmit Power | 25 dBm |
| BSSID | 4 per radio |
| Security Protocols | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting Options | Wall or Ceiling (Mounting Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Attributes | Description |
|---|---|
| Product Type | Wireless High-Density Access Point |
| Model | UniFi AC HD |
| Dimensions | 220 x 220 x 48.1 mm |
| Weight | 700 g without mounting kits, 830 g with mounting kits |
| Networking Interface | 2x Gigabit Ethernet RJ45, 1x USB Type-C |
| Wi-Fi Standards Supported | 802.11a/b/g/n/ac/ac-wave2 |
| Frequency Bands | 2.4 GHz and 5 GHz dual-band |
| Antenna Type | Internal dual polarity single band antennas |
| Power Supply | PoE Injector 48VDC - 0.5A Gigabit |
| Power Consumption | Maximum 17 Watts |
| Maximum Transmit Power | 25 dBm |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certification | CE, FCC, IC |
| Mounting | Wall or Ceiling, mounting kits included |
| Operating Temperature Range | -10 to 70° Celsius |
| Operating Humidity Range | 5% to 95%, non-condensing |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, it supports PoE 802.3at allowing power and data transmission via a single Ethernet cable.
The device can be mounted on walls or ceilings using the included mounting kits.
It supports dual-band frequencies, specifically 2.4 GHz and 5 GHz bands.
The access point supports WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) for secure wireless communication.
The UniFi HD Access Point consumes a maximum of 17 watts during operation.
Yes, it operates in temperatures ranging from -10°C to 70°C making it suitable for various environmental conditions.
