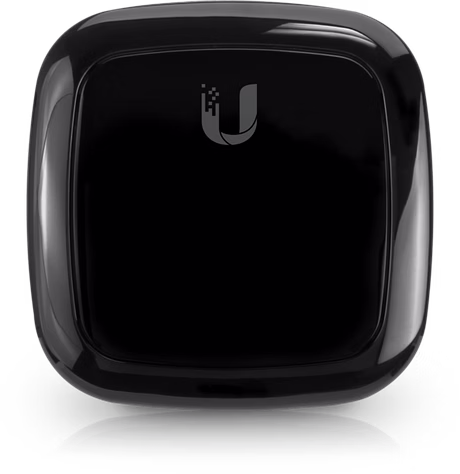

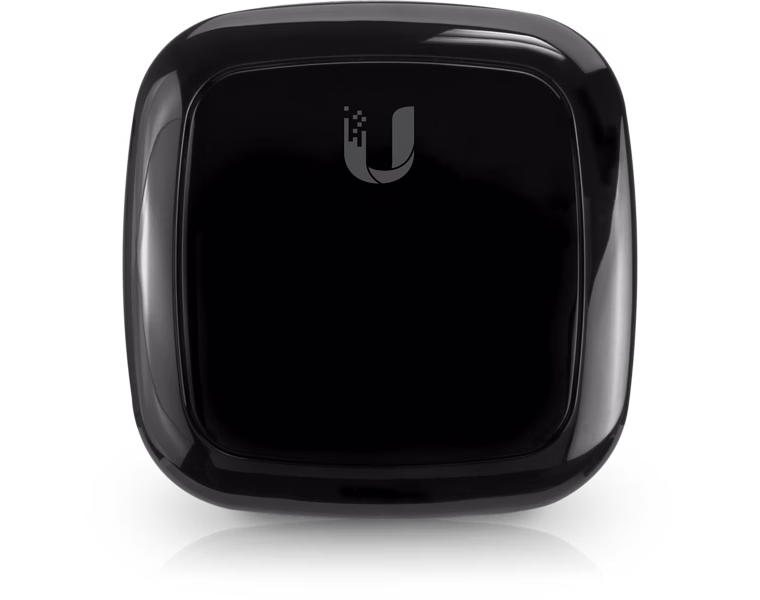

The Ubiquiti UFiber Nano G Network Unit is a compact and efficient fiber optic network device designed for seamless high-speed internet connectivity. Boasting dimensions of just 77 x 77 x 28 mm and a lightweight design of 110 grams, it is ideal for space-constrained network setups. This network unit features a single SC/APC GPON WAN interface compliant with ITU G.984 standards and one RJ45 Ethernet LAN interface to ensure reliable networking. It supports an optical power range with TX (Class B+) from 1.5 to 5 dBm and RX from -8 to -28 dBm, facilitating stable fiber optic transmission. Powered by 24V Passive PoE (Pins 4, 5+; 7, 8-), it consumes a maximum of 7 watts with support for voltage input from 20 to 28V, making it energy efficient and easy to deploy. Equipped with a 240 MHz MIPS-32 processor and 128 MB DDR3 memory, the UFiber Nano G guarantees performance optimized for GPON applications. Management of the device can be carried out via the in-band Ethernet/PON interface, enabling streamlined network administration. This unit is perfect for service providers and enterprises looking to implement Fiber to the Home (FTTH) or other GPON-based network infrastructures with compact, high-performance hardware.
Key Features
| Features | Description |
|---|---|
| Device Dimensions | 77 x 77 x 28 mm |
| Weight | 110 grams |
| GPON WAN Interface | 1 x SC/APC, compliant with ITU G.984 |
| Ethernet LAN Interface | 1 x RJ45 |
| Optical Power Range | TX: 1.5 to 5 dBm (Class B+), RX: -8 to -28 dBm |
| Power Supply Method | 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Max Power Consumption | 7 Watts |
| Supported Voltage Range | 20 to 28 Volts |
| Processor | MIPS-32, 240 MHz |
| Memory | 128 MB DDR3 |
| Management Interface | In-band Ethernet/PON |
| Attributes | Description |
|---|---|
| Model | Ubiquiti UFiber Nano G |
| Product Type | GPON Optical Network Unit (ONU) |
| Compliance Standard | ITU G.984 |
| Port Types | 1 x SC/APC GPON WAN, 1 x RJ45 Ethernet LAN |
| Power Adapter | 24V, 0.3A PoE adapter |
| Operating Temperature | Insufficient Information |
| Storage Temperature | Insufficient Information |
| Mounting Options | Surface mountable (typical for Nano size devices) |
| Optical Connector Type | SC/APC |
| Networking Speeds | GPON WAN - ITU G.984 standard speeds |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The UFiber Nano G uses a single SC/APC optical connector for its GPON WAN interface.
Yes, it complies with ITU G.984 standards, supporting standard GPON WAN speeds.
It is powered via 24V Passive PoE using pins 4, 5+ and 7, 8- and requires a 24V, 0.3A PoE adapter.
Yes, the device supports management through the in-band Ethernet/PON interface, enabling remote configuration and monitoring.
The maximum power consumption is 7 Watts.
Yes, its specifications and compliance with GPON standards make it suitable for enterprise and ISP FTTH infrastructure deployments.
