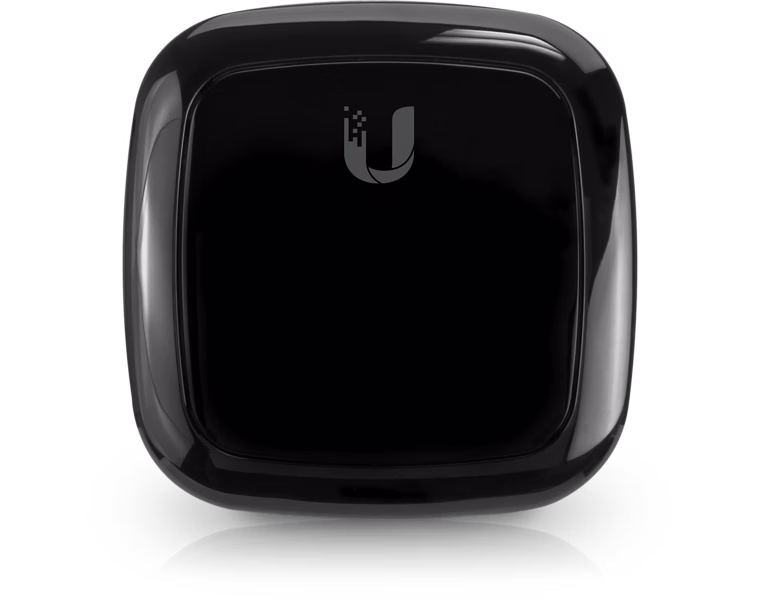

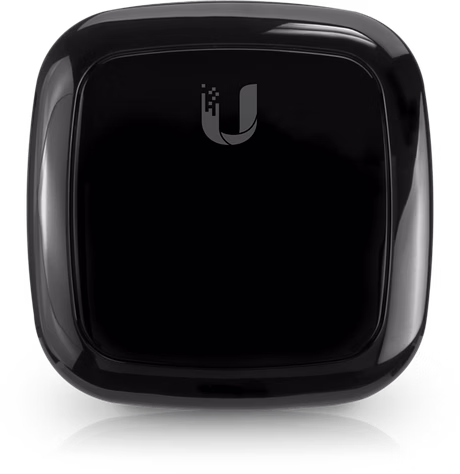

The Ubiquiti UFiber loco GPON CPE is a compact and efficient fiber optic network device designed for high-speed broadband access. Measuring just 76.5 x 76.5 x 26.4 mm and weighing only 77 grams, this device offers a lightweight solution for service providers deploying GPON networks. It features a single SC/APC GPON WAN interface compliant with ITU G.984 standards, enabling reliable optical network connectivity. The RJ45 Ethernet LAN port provides fast data transmission to local network devices. The device supports a normal optical power range with a transmitter output of 1.5 to 5 dBm and a receiver input range of -28 to -8 dBm, ensuring stable performance over fiber links. It is powered via Micro-USB (5V, 1A) or 24V Passive PoE, allowing flexible installation options. The UFiber loco consumes a maximum of 3.5W and includes a 240 MHz MIPS-32 processor and 128 MB DDR3 memory to handle network processing and management tasks efficiently. Ideal for GPON client premises equipment deployment, it supports in-band Ethernet PON management for easy configuration and monitoring, making it an optimal choice for ISPs and network integrators aiming to deliver high-speed fiber broadband connections.
Key Features
| Features | Description |
|---|---|
| Compact Dimensions | 76.5 x 76.5 x 26.4 mm |
| Lightweight Device | 77 g (2.72 oz) |
| GPON WAN Interface | (1) SC/APC compliant with ITU G.984 standard |
| Ethernet LAN Port | (1) RJ45 |
| Optical Power Range | TX: 1.5 to 5 dBm, RX: -28 to -8 dBm |
| Power Options | Micro-USB 5V 1A and 24V Passive PoE |
| Processor | MIPS-32, 240 MHz |
| Memory | 128 MB DDR3 |
| Maximum Power Consumption | 3.5W |
| Management Interface | In-band Ethernet PON |
| Attributes | Description |
|---|---|
| Product Type | GPON CPE (Customer Premises Equipment) |
| Networking Interfaces | 1x SC/APC GPON WAN, 1x RJ45 Ethernet LAN |
| Networking Speeds | GPON WAN compliant with ITU G.984 |
| Optical Power Transmitter (TX) | 1.5 to 5 dBm (Class B+) |
| Optical Power Receiver (RX) | -28 to -8 dBm |
| Power Supply | Micro-USB 5V 1A or 24V Passive PoE (Pins +4, 5; -7, 8) |
| Supported Voltage Range | 4.7 to 5.3V |
| Max Power Consumption | 3.5W |
| Processor | MIPS-32, 240 MHz |
| Memory | 128 MB DDR3 |
| Dimensions | 76.5 x 76.5 x 26.4 mm |
| Weight | 77 g (2.72 oz) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The device supports power input either via a Micro-USB power adapter (5V, 1A) or using 24V Passive PoE following pin assignments +4, 5 and -7, 8.
Yes, it complies with ITU G.984 standards for GPON WAN interface ensuring compatibility and reliable performance in fiber networks.
The transmitter outputs within the Class B+ optical power range from 1.5 to 5 dBm.
Yes, it provides in-band Ethernet PON management interface allowing remote configuration and monitoring capabilities.
It is powered by a 240 MHz MIPS-32 processor and has 128 MB DDR3 memory for efficient data and protocol handling.
