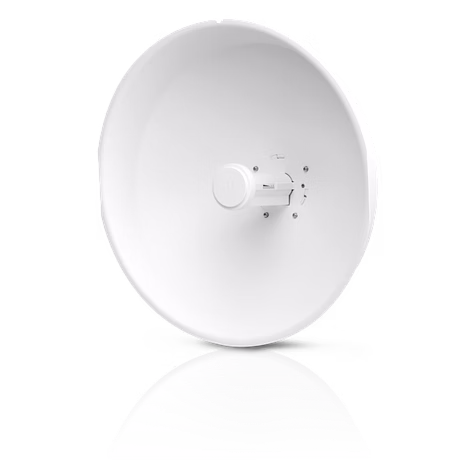

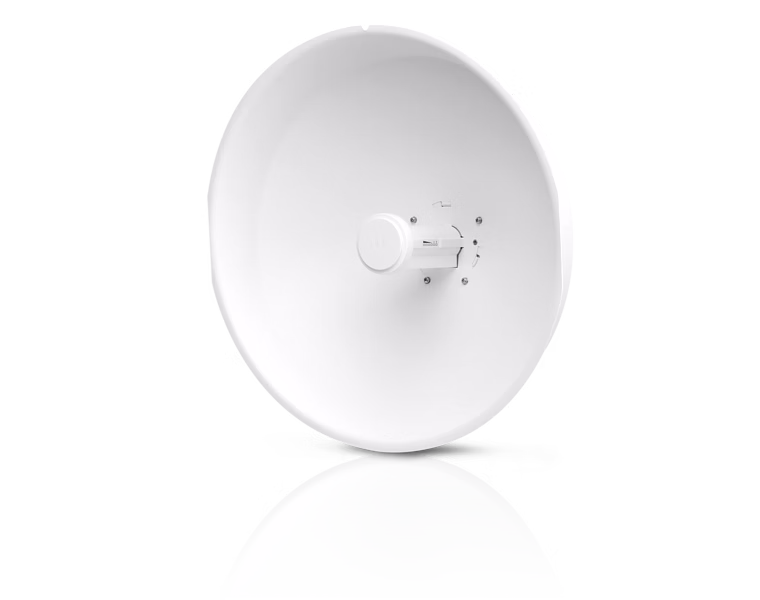

The Ubiquiti PowerBeam M5 400 ISO is a high-performance outdoor wireless networking device designed for long-range, point-to-point connectivity. Featuring a 400mm dish reflector and an isolator, it delivers a high gain of 25 dBi, optimized for 5 GHz frequency bands. Its compact dimensions (459 x 459 x 261 mm with radome) and lightweight build (3.22 kg including mount) make it ideal for stable installations even in challenging environments. The device supports a robust 10/100/1000 Mbps Gigabit Ethernet interface, ensuring fast and reliable data transfer. With an outdoor UV-stabilized plastic enclosure, it offers excellent durability against weather elements. It consumes a maximum power of 8W and operates on 24V Passive PoE with a 0.5A Gigabit PoE adapter included for seamless power and data transmission over a single cable. The PowerBeam M5 400 ISO tolerates strong winds with wind survivability up to 200 km/h and high wind loading capacity of 559 N at 200 km/h, making it highly resilient for outdoor deployments. This model is perfect for businesses and service providers seeking dependable wireless infrastructure with high transmission power (max TX power 24 dBm) and longevity for outdoor networking solutions.
Key Features
| Features | Description |
|---|---|
| Dish Size | 400 mm |
| Gain | 25 dBi |
| Dimensions with Radome | 459 x 459 x 261 mm |
| Weight (Mount Included) | 3.22 kg |
| Networking Interface | 1 x 10/100/1000 Ethernet Port |
| Enclosure Material | Outdoor UV Stabilized Plastic |
| Max Power Consumption | 8W |
| Max Transmission Power | 24 dBm |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Wind Survivability | 200 km/h |
| Wind Loading | 559 N @ 200 km/h |
| Attributes | Description |
|---|---|
| Frequency Band | 5 GHz |
| Mount Type | Included |
| Operating Temperature | Insufficient Information |
| Connector Type | RJ45 Ethernet |
| Radome Included | Yes |
| Transmit Power | 24 dBm |
| Power over Ethernet | Yes - Passive PoE |
| Material | UV Stabilized Plastic |
| Compliance Standards | Insufficient Information |
| Warranty | Insufficient Information |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the product weight specification includes the mount, which means it is included with the device.
It requires a 24V, 0.5A Gigabit PoE adapter, which is included in the package.
Yes, it has an outdoor UV stabilized plastic enclosure designed to withstand outdoor environmental conditions.
The PowerBeam M5 400 ISO can survive wind speeds up to 200 km/h.
Yes, it can handle wind loading of 559 Newtons at 200 km/h, ensuring stability in harsh weather.
Yes, the dimensions are provided with the radome, which means the antenna includes it for protection.
The device uses Passive PoE on pairs 4,5+ and 7,8 return.
