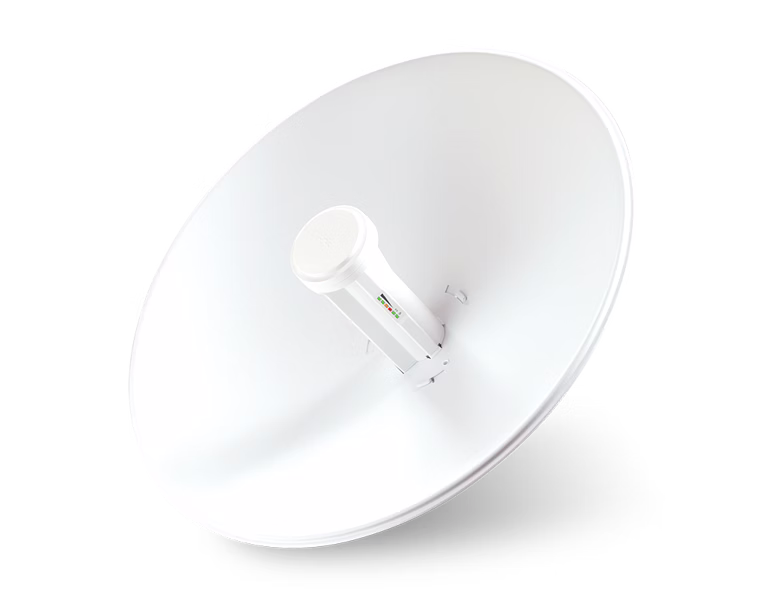

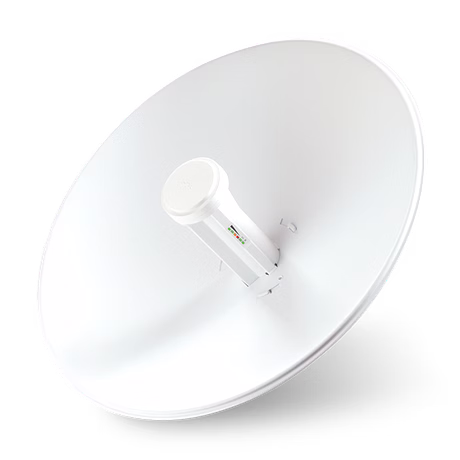

The Ubiquiti airMAX PowerBeam M5 is a 400 mm diameter, high-performance wireless bridge designed specifically for outdoor point-to-point or point-to-multipoint networking applications operating in the 5 GHz frequency band. Featuring a robust 25 dBi gain dish and a powerful 26 dBm maximum transmit power, this device ensures long-distance, reliable wireless connectivity with minimal interference. Encased in a UV stabilized plastic enclosure, it delivers durability against harsh environmental conditions, including winds up to 200 km/h, making it ideal for deployment in challenging outdoor environments. The PowerBeam M5 integrates a Gigabit Ethernet port supporting 10/100/1000 Mbps speeds, facilitating high throughput data transmission. Powered via a 24V 0.5A Gigabit PoE adapter with passive PoE technology, installation is simplified, requiring only a single cable for both data and power. This product is perfectly suited for telecommunications providers, network specialists, and businesses requiring sturdy, high-capacity wireless bridging solutions to extend network reach efficiently and securely over long distances.
Key Features
| Features | Description |
|---|---|
| Frequency Band | 5 GHz |
| Dish Diameter | 400 mm |
| Gain | 25 dBi |
| Maximum Transmit Power | 26 dBm |
| Networking Interface | 1 x 10/100/1000 Ethernet Port |
| Enclosure Material | Outdoor UV Stabilized Plastic |
| Power Consumption | 8W max |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 342.5 N @ 200 km/h |
| Dimensions (L x W x H) | 420 x 420 x 275 mm (16.54 x 16.54 x 10.83 in) |
| Weight (Mount Included) | 1.753 kg (4.789 lbs) |
| Attributes | Description |
|---|---|
| Model | PowerBeam M5 |
| Operating Frequency | 5 GHz |
| Antenna Type | Directional parabolic antenna |
| Gain | 25 dBi |
| Transmit Power | 26 dBm max |
| Ethernet Port | One 10/100/1000 Mbps RJ45 |
| Power Over Ethernet | Passive PoE (Pairs 4,5+; 7,8 return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Max Power Consumption | 8 Watts |
| Enclosure | UV Stabilized Outdoor Plastic |
| Wind Survivability | 200 km/h |
| Wind Loading | 342.5 N at 200 km/h |
| Dimensions (mm) | 420 x 420 x 275 |
| Weight | 1.753 kg (with mount) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the PowerBeam M5 is engineered with a sturdy UV stabilized plastic enclosure and supports wind survivability up to 200 km/h, ensuring stable operation even in harsh weather conditions.
Yes, it includes a 10/100/1000 Mbps Ethernet port, allowing for gigabit-level data transfer necessary for high bandwidth network applications.
Yes, a 24V 0.5A Gigabit Passive PoE adapter is included, and it employs passive PoE powering via pairs 4,5+ and 7,8 return.
The device measures 420 x 420 x 275 mm (approx. 16.5 x 16.5 x 10.8 inches) and weighs approximately 1.753 kg including the mount, so adequate supports and mounting space suitable for large outdoor antennas are necessary.
It is specifically designed for point-to-point and point-to-multipoint wireless bridging applications, providing reliable high-performance connectivity over long distances.
