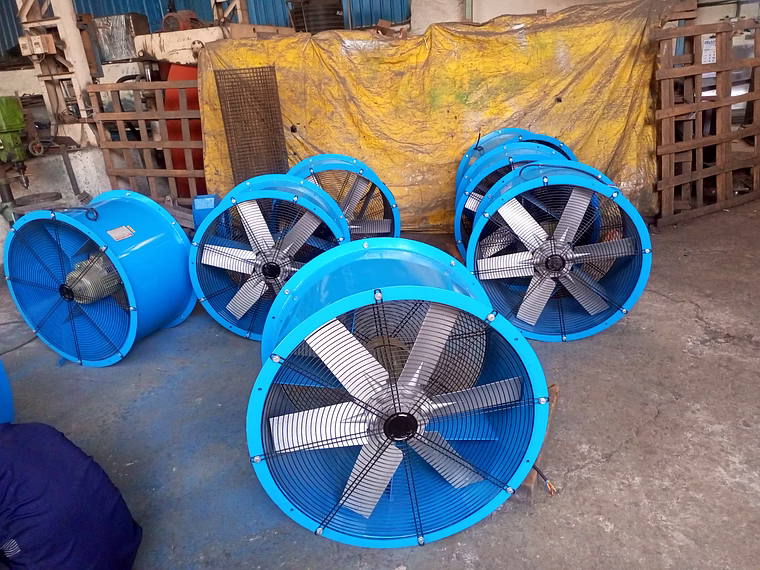

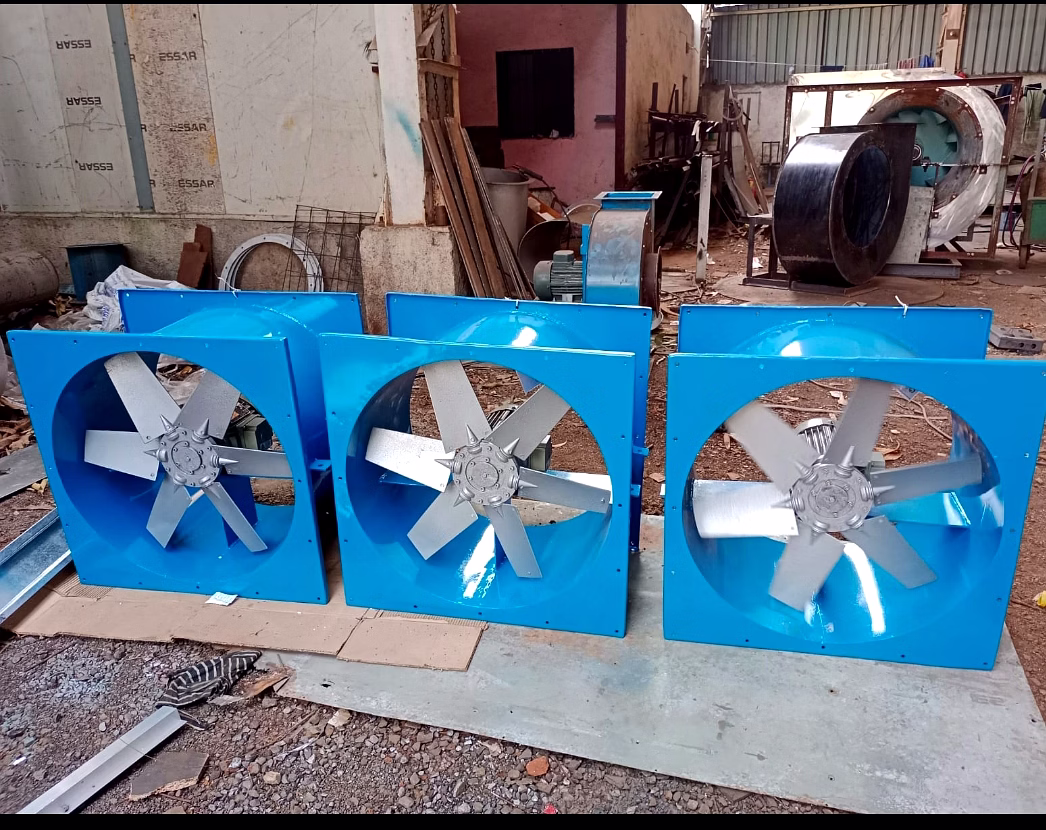

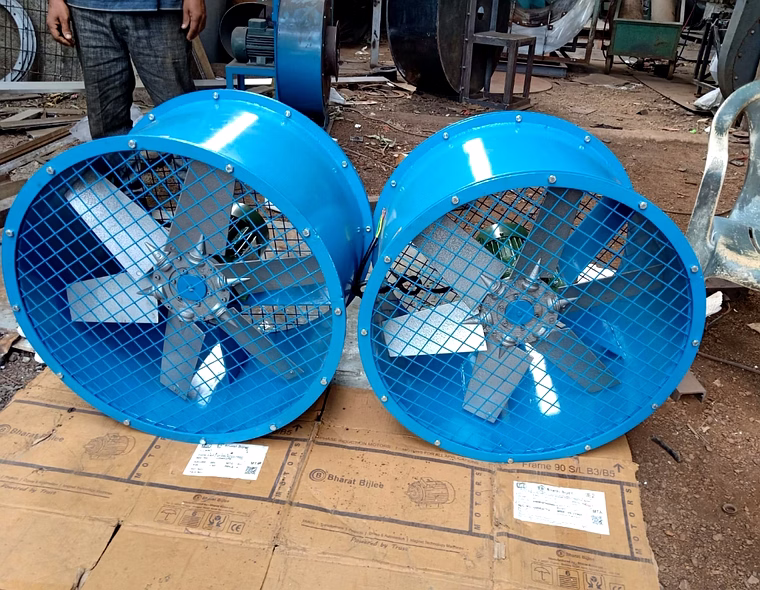

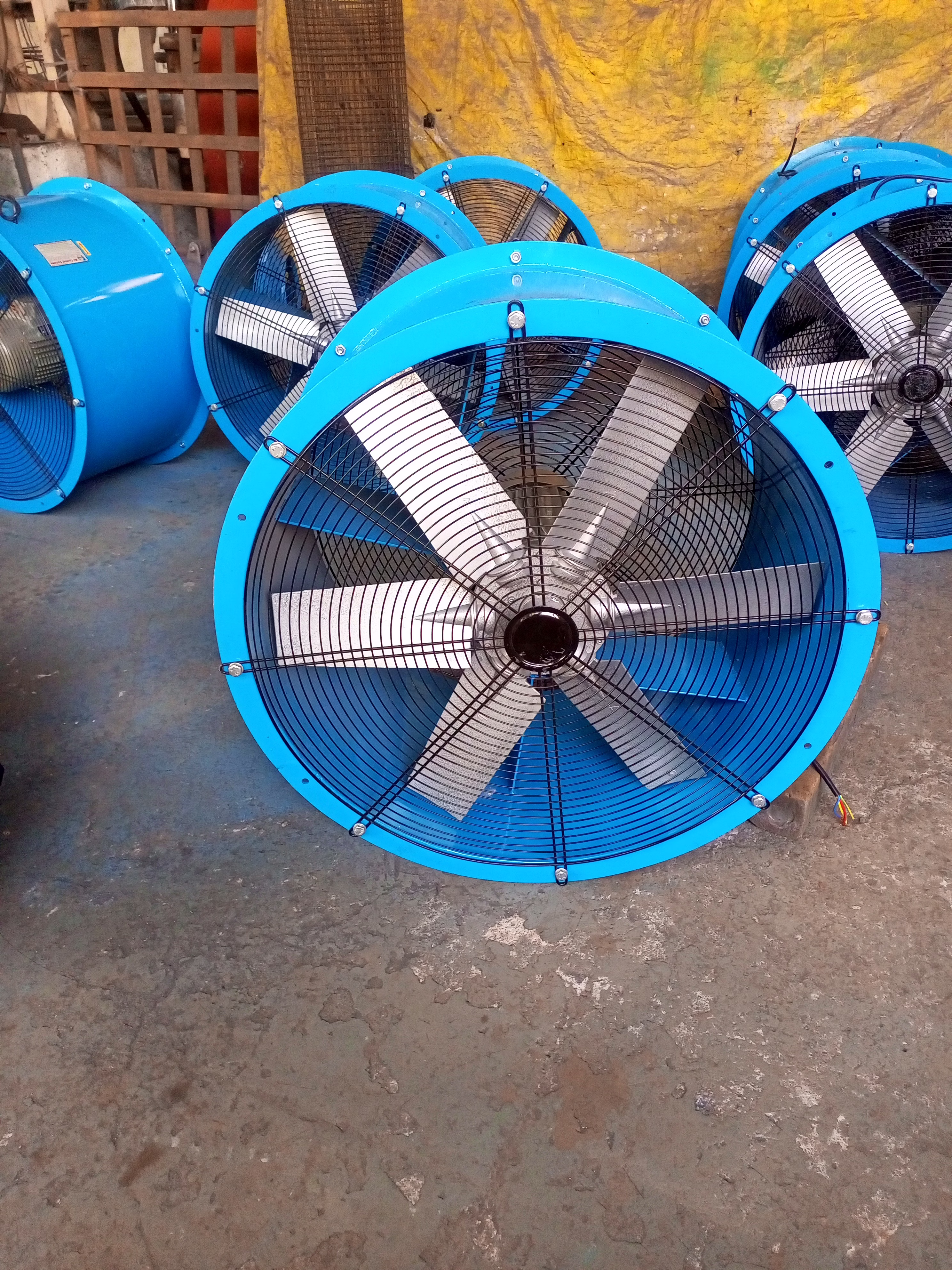

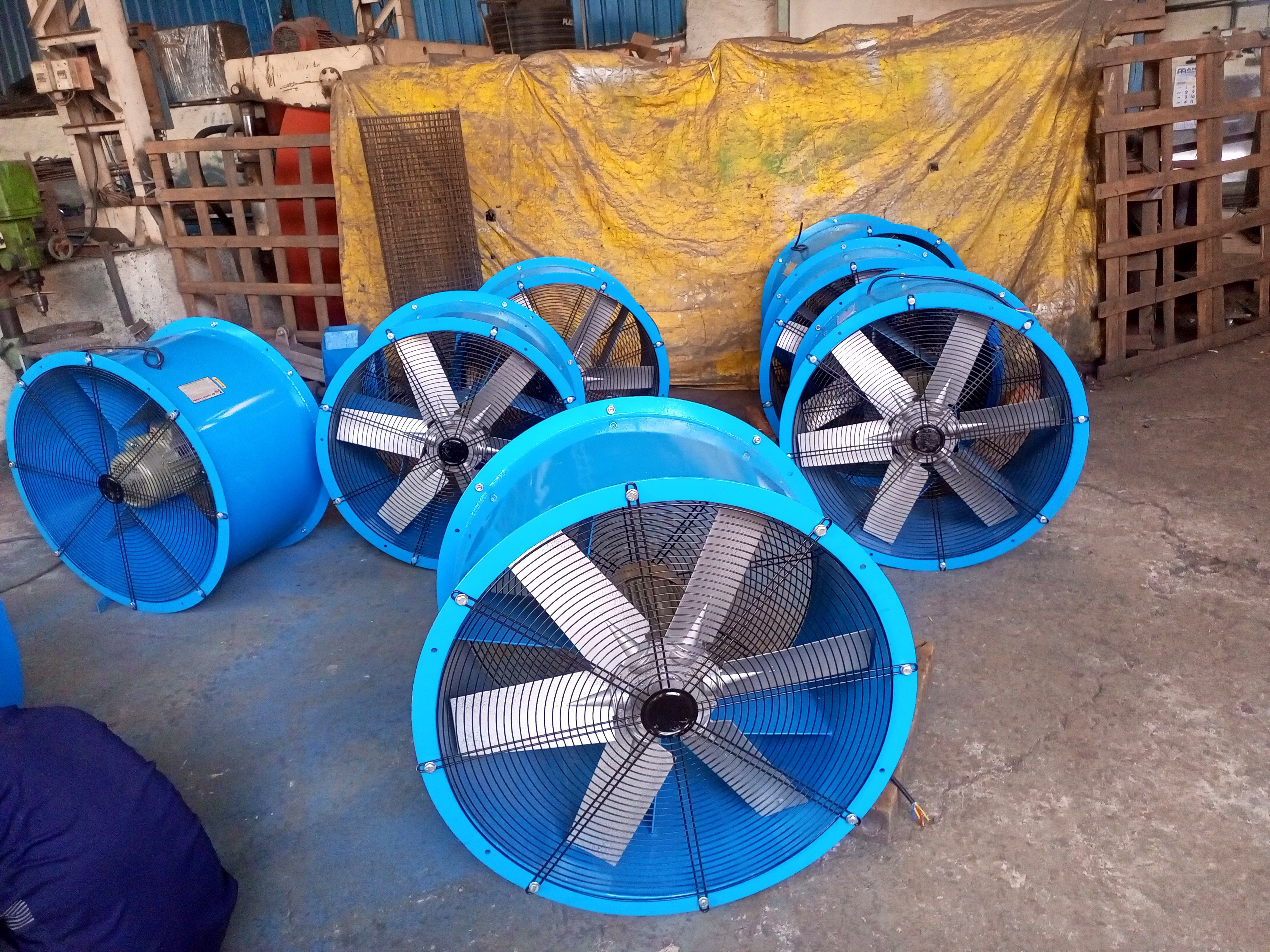

The Tube Axial Flow Fan from Air Control Systems is a high-performance ventilation solution engineered for industrial air movement applications. Featuring a fan capacity of 6000 CFM, this fan operates at a speed of 1440 RPM and maintains a pressure of 5 MMWC, delivering consistent and efficient airflow. The fan size is 24 inches (610 mm) in diameter and is equipped with 6 robust blades designed for optimal aerodynamic performance. Its direct drive arrangement eliminates the need for belts, enhancing reliability and reducing maintenance. The fan is powered by a Crompton-manufactured, TEFC squirrel cage motor rated at 1 HP with 1440 RPM synchronous speed, 415 V AC, 50 Hz, and IP55 protection with Class F insulation and IE2 energy efficiency. Constructed using durable mild steel (MS), this Tube Axial Flow Fan is built to withstand rigorous industrial environments, making it an ideal choice for factories, workshops, and industrial ventilation systems.
Key Features
| Features | Description |
|---|---|
| Fan Capacity | 6000 CFM |
| Fan Size | 24 inches (610 mm) diameter |
| Number of Blades | 6 Nos |
| Operating Speed | 1440 RPM |
| Pressure | 5 MMWC |
| Motor Power | 1 HP |
| Motor Type | TEFC Squirrel Cage Motor |
| Drive Arrangement | Direct Drive |
| Motor Make | Crompton |
| Material of Construction | Mild Steel (MS) |
| Motor Specifications | 415V AC, 50 Hz, IP55 protection, Class F insulation, IE2 efficiency |
| Duty Cycle | S-1 continuous duty |
| Attributes | Description |
|---|---|
| Model | ACSLL |
| Fan Diameter | 24 inches (610 mm) |
| Number of Blades | 6 |
| Air Flow Capacity | 6000 Cubic Feet per Minute (CFM) |
| Operating Pressure | 5 Millimeter Water Column (MMWC) |
| Fan Speed | 1440 RPM |
| Motor Power | 1 Horsepower (HP) |
| Motor Type | Totally Enclosed Fan Cooled (TEFC) squirrel cage motor |
| Motor Voltage and Frequency | 415 Volts AC, 50 Hz |
| Motor Speed | 1440 RPM (synchronous) |
| Motor Protection Class | IP55 |
| Insulation Class | Class F |
| Energy Efficiency | IE2 |
| Drive Type | Direct Drive |
| Material | Mild Steel (MS) |
| Manufacturer | Air Control Systems |
| Motor Manufacturer | Crompton |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The fan is equipped with a Crompton-manufactured TEFC squirrel cage motor rated at 1 HP, 1440 RPM synchronous speed, 415 V AC, 50 Hz, IP55 protection, Class F insulation, and IE2 energy efficiency, designed for continuous S-1 duty.
The fan uses a direct drive arrangement which eliminates belts and pulleys, resulting in reduced maintenance needs and improved operational reliability.
The fan housing and blades are constructed from durable mild steel (MS), ensuring robustness suitable for industrial environments.
The fan operates at a capacity of 6000 CFM with a pressure rating of 5 millimeters water column (MMWC), ideal for moderate pressure ventilation needs.
Yes, with an IP55 protection rated motor and TEFC enclosure, the fan is designed to resist dust ingress and water jets, making it suitable for humid and dusty industrial conditions.
Brand: air control systems
Country Of Origin: India
Tube Axial Flow Fan.
Make :- Air Control Systems
Fan Capacity :-6000CFM
Fan Size :-Dia.24’’, (610MM) No. Of Blade : 06Nos.
Motor HP :-1HP/1440 RPM
Drive arrangement :-Direct Drive .
Tube Axial Flow Fan.
Model :- ACSLL
Make :- Air Control Systems
Fan Capacity :-6000CFM
Pressure :- 5MMWC
Fan Speed :-1440RPM
Fan Size :-Dia.24’’, (610MM) No. Of Blade : 06Nos.
Motor Description
Motor HP :-1HP/1440 RPM
Motor :- Motor TEFC Sq/ Cage 415 V AC ,50HZ, S-1 DUTY IP55 ,CLASS F.IE2.
Motor RPM :-1440 RPM , Synchronous RPM
Drive arrangement :-Direct Drive .
Motor Make Crompton
Material Of Construction :MS
