The NGE Tower Packing, featuring the innovative Plastic Pall Ring, is designed to enhance mass transfer efficiency in various industrial applications. With a nominal size of 25mm and available diameters ranging from 25mm to 100mm, these polypropylene packing elements provide versatility and high performance. The 95% void fraction percentage ensures a high free volume, allowing for low-pressure drops and excellent gas-liquid contact. The key advantage of the Pall Ring design, which incorporates two rows of punched-out holes and webs turned into the cylinder's center, significantly boosts mass transfer efficacy, making it ideal for applications that require optimal throughput and minimal pressure loss. Suitable for operating temperatures between 60°C to 150°C, these tower packings are perfect for various chemical, petrochemical, and wastewater treatment operations. They are lightweight, weighing only 7g each, and are available in minimum order quantities of 5000 pieces, making them an excellent choice for bulk industrial applications.
Key Features
| Features | Description |
|---|---|
| Brand | NGE |
| Material | Polypropylene |
| Available Diameters | 25, 38, 50, 75, 100 mm |
| Nominal Size | 25 mm |
| Void Fraction Percentage | 95% |
| Weight | 7g |
| Minimum Order Quantity | 5000 pieces |
| Application Temperature Range | 60°C to 150°C |
| Attributes | Description |
|---|---|
| Color | White |
| Packaging Factor | 1 |
| Material of Construction | Polypropylene, PPH etc. |
| High Free Volume | Yes |
| Low-Pressure Drop | Yes |
| High Mass Transfer Efficiency | Yes |
| Uniform Gas-Liquid Contact | Yes |
| Small Specific Gravity | Yes |
| High Flooding Point | Yes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum operating temperature for the Plastic Pall Ring is 150°C, depending on the material of construction.
The Pall Ring design incorporates punched-out holes and webs that enhance gas-liquid contact and increase throughput, resulting in improved mass transfer efficiency.
Yes, the Plastic Pall Ring is suitable for various applications, including wastewater treatment, due to its high efficiency and low-pressure drop.
In addition to polypropylene, the tower packing is available in various materials of construction including PPH.
Country Of Origin: India

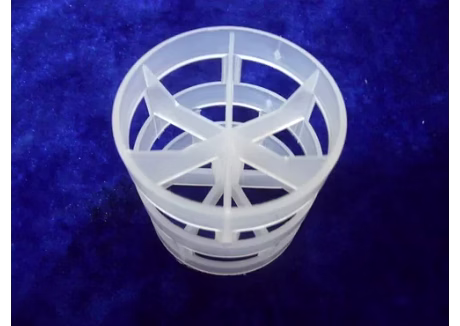

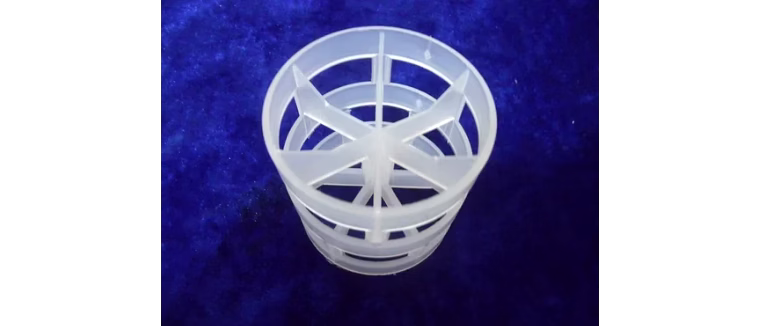

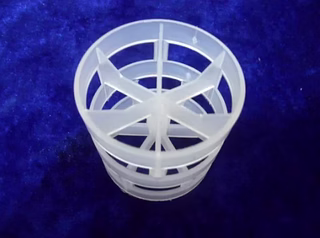

Plastic Pall Ring is versatile. This product was advanced on the basis of Plastic Raschig Ring, and compared with it, both of them have similar cylindrical dimensions but the Plastic Pall Ring has two rows of punched out holes, with fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the packing, in terms of throughput, efficiency and pressure drop.
Available in MOC : Polypropylene , PPH etc. Advantages of Plastic Pall Ring:
High free volume
Low-pressure drop
Low mass-transfer unit height
high flooding point
Uniform gas-liquid contact
Small specific gravity
High mass transfer
Efficiency
Application of Plastic Pall Ring:
A variety of different sizes of products provide the ability to optimize capacity and efficiency based on different application requirements, and the application temperature in media ranges from 60oC to 150oC (Depends up on MOC temp range change)
