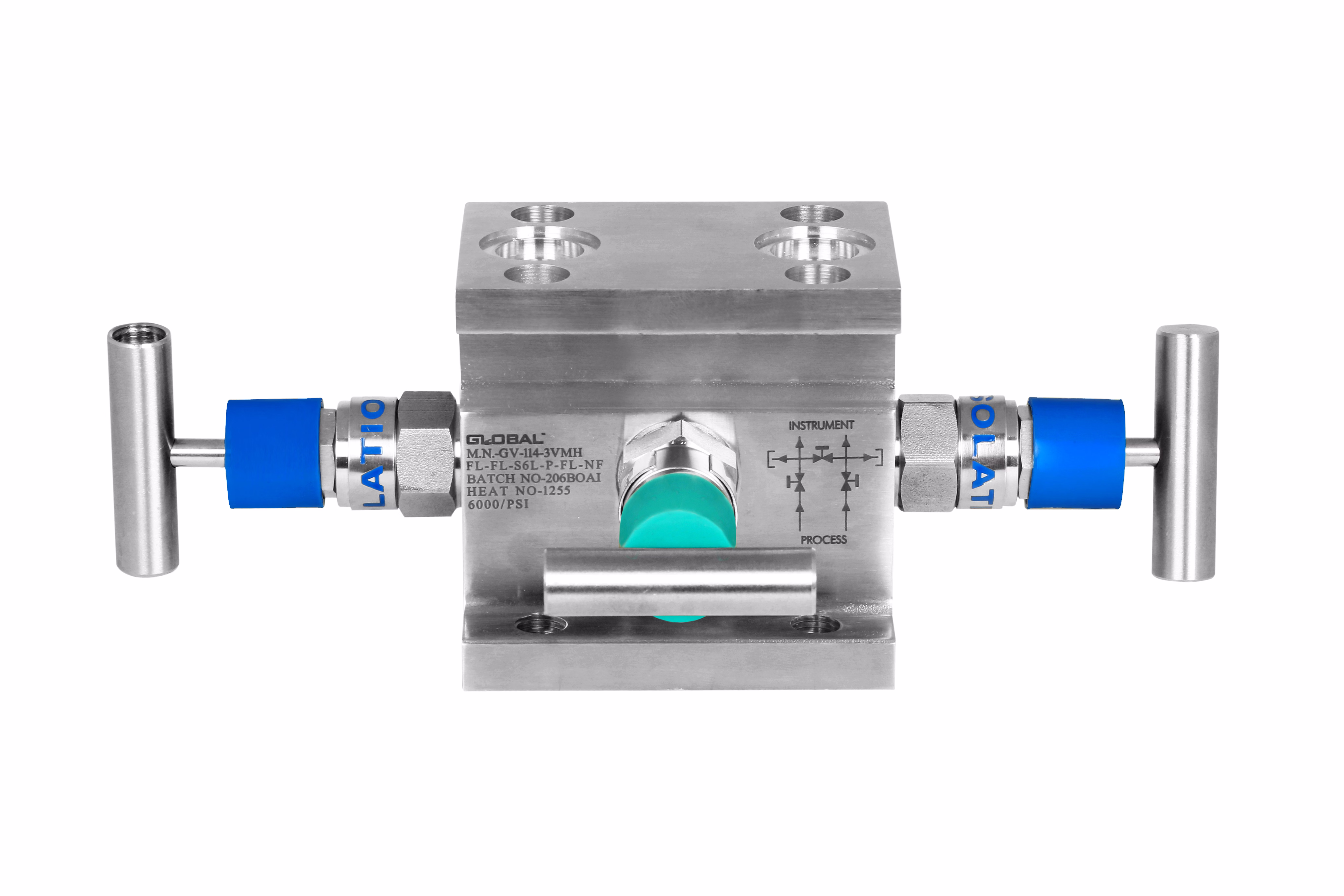

The GV-114-3VMH Three Valve Manifold Direct Mount H Type (Flange x Flange) is engineered for superior performance in challenging environments, maintaining high efficiency and durability. With a maximum working pressure of 6000 psi (414 bar) at 100°F (38°C), and an impressive working temperature range from -65°F (-54°C) to 464°F (240°C), this manifold is perfect for applications involving differential pressure, level, and transmitters. The manifold features distinctive color caps for immediate identification of valve functions, ensuring quick and effective operation. Each unit is meticulously factory tested and carries heat code traceability for quality assurance. Constructed from high-grade materials such as A479 304, A479 316, and A182 GRF 316, the GV-114-3VMH is robust yet lightweight, making it a reliable choice for various industrial applications. Its natural stainless steel finish and shot-blasted surface provide enhanced corrosion resistance, extending the lifespan of the product in diverse operational settings. Whether handling gases, steam, or liquids, this manifold model is an ideal choice for professionals seeking quality and reliability.
Key Features
| Features | Description |
|---|---|
| Maximum Working Pressure | 6000 psi (414 bar) at 100°F (38°C) |
| Working Temperature Range | -65°F (-54°C) to 464°F (240°C) |
| Configuration Diversity | Suitable for differential pressure, level, and transmitters. |
| Color Caps | Identify valve function quickly and effectively. |
| Factory Tested | 100% factory tested for quality assurance. |
| Heat Code Traceability | Allows for tracking of manufacturing specifications. |
| Material Composition | A479 304, A479 316, A182 GRF 316. |
| Finish | SS Natural, Shot Blast for corrosion resistance. |
| Attributes | Description |
|---|---|
| Model Number | GV-114-3VMH (Flange x Flange) |
| Vent Model Number | GV-114-3VMH-V |
| Body Material | SS 316 |
| Gland Material | SS 316 |
| Gland Retainer Material | SS 304 |
| Check Nut Material | SS 304 |
| Spindle Material | SS 316 |
| Gland Packing Material | P.T.F.E (Graphite optional for high temperature) |
| Gland Ring Material | SS 304 |
| Gland Washer Material | SS 304 |
| Trim Material | SS 316 |
| Dust Cap Material | Rubber |
| Handle Material | SS 304 |
| Grub Screw Material | SS |
| Lock Pin Material | SS 304 |
| Packing Options | Optional graphite for high temperature to 450°F. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum working pressure is 6000 psi (414 bar) at 100°F (38°C).
Yes, it has a working temperature range from -65°F (-54°C) to 464°F (240°C).
The manifold is made from A479 304, A479 316, and A182 GRF 316 materials.
Yes, the manifold has color caps that help identify the valve function quickly.
Yes, each manifold comes with heat code traceability for quality assurance.

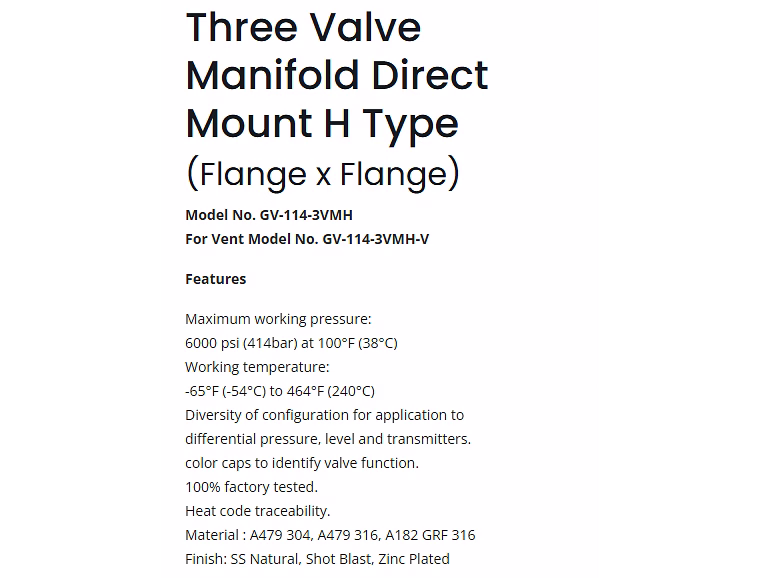

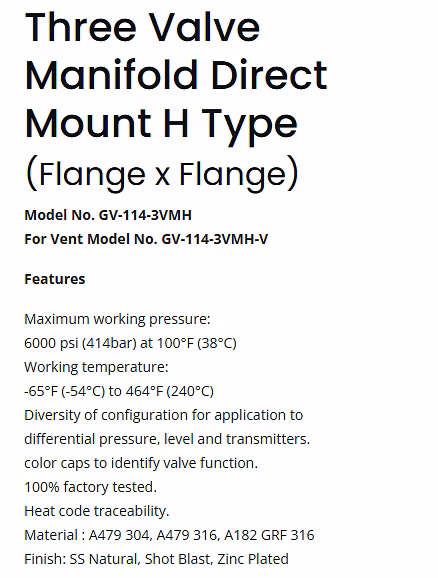

Three Valve Manifold Direct Mount H Type
(Flange x Flange)
Model No. GV-114-3VMH
For Vent Model No. GV-114-3VMH-V
Features
Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)
Diversity of configuration for application to
differential pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast
Description
Part No. Part Description Material Qty.
1 Body SS 316 1
2 Gland Body SS 316 2
3 Gland Retainer SS 304 2
4 Check Nut SS 304 2
5 Spindle SS 316 2
6 Gland Packing P.T.F.E 4
7 Gland Ring SS 304 2
8 Gland Washer SS 304 2
9 Trim SS 316 2
10 Dust Cap Rubber 2
11 Handle SS 304 2
12 Grub Screw SS 2
13 Lock Pin SS 304 2
Note: 1. Packing is optional with graphite for high temperature to 450℃
