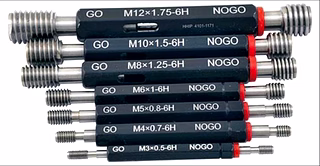

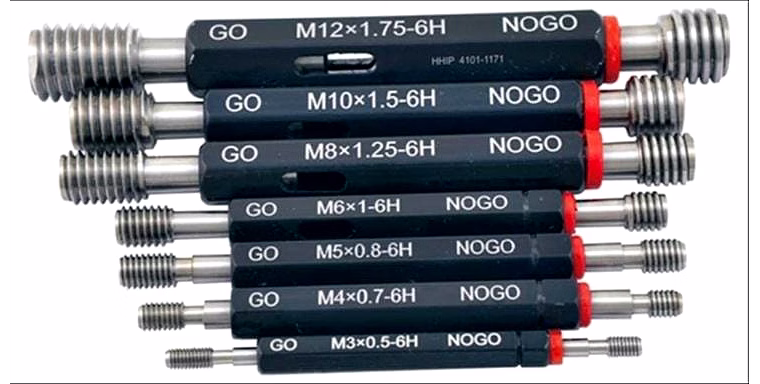

The Thread Plug Gauge is a precision measuring instrument designed specifically for inspecting the internal thread dimensions of threaded holes in various industrial components. Used extensively in manufacturing and quality control processes, this gauge ensures that thread holes conform accurately to specified tolerances, guaranteeing proper fit and function in assembly operations. Constructed from high-grade hardened steel, this tool offers exceptional durability and resistance to wear, providing reliable measurements over long periods of use. Its ergonomic design facilitates ease of handling, making it an indispensable tool for machine shops, automotive manufacturers, aerospace parts producers, and other industries requiring high precision in threaded hole verification. The Thread Plug Gauge is suitable for checking a wide range of thread sizes and pitches, ensuring comprehensive compatibility with different standards such as ANSI, ISO, and DIN. Incorporating the Thread Plug Gauge in inspection protocols improves manufacturing consistency, reduces rework, and enhances overall product quality by ensuring that internal threading meets exact engineering criteria.
Key Features
| Features | Description |
|---|---|
| Gauge Type | Thread Plug Gauge |
| Material | Hardened High-Grade Steel |
| Thread Size Compatibility | Supports multiple thread sizes and pitches as per ANSI, ISO, DIN standards |
| Accuracy | High precision dimensional tolerance checking |
| Usage | Inspecting internal threaded holes |
| Application | Quality inspection, Manufacturing process control, Assembly verification |
| Durability | Wear-resistant for long-term industrial use |
| Design | Ergonomic handle for ease of use |
| Attributes | Description |
|---|---|
| Length | Varies based on thread size |
| Diameter | Corresponds to specific thread pitch and size |
| Weight | Lightweight design for comfortable handling |
| Compliance Standards | ANSI, ISO, DIN thread specifications |
| Tolerance Range | Typically within ±0.01 mm depending on gauge type |
| Finish | Polished surface to prevent thread damage |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This Thread Plug Gauge supports commonly used standards such as ANSI, ISO, and DIN to cover a wide range of internal thread sizes and pitches.
The gauge is manufactured with high precision and hardened steel, maintaining tight dimensional tolerances typically within ±0.01 mm to ensure exact internal thread inspection.
Yes, its construction from wear-resistant hardened steel and ergonomic design make it ideal for repeated use in manufacturing and quality control settings.
Depending on the specific model, Thread Plug Gauges can be designed for either metric or imperial (inch) thread measurements or both, depending upon customer requirements.
Yes, the gauge features a polished surface finish which minimizes the risk of damaging the internal threads while performing inspections.
Country Of Origin: India
