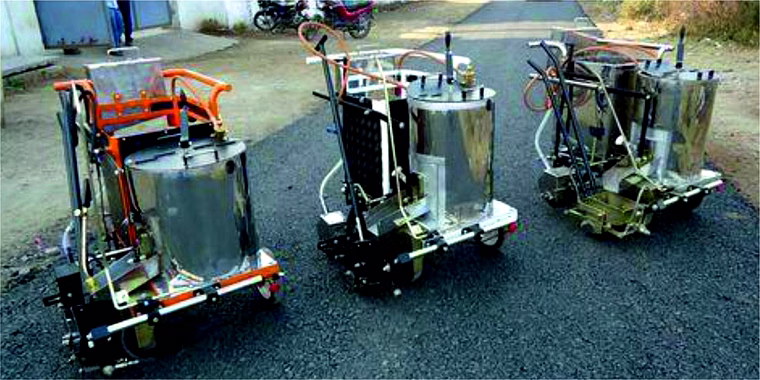

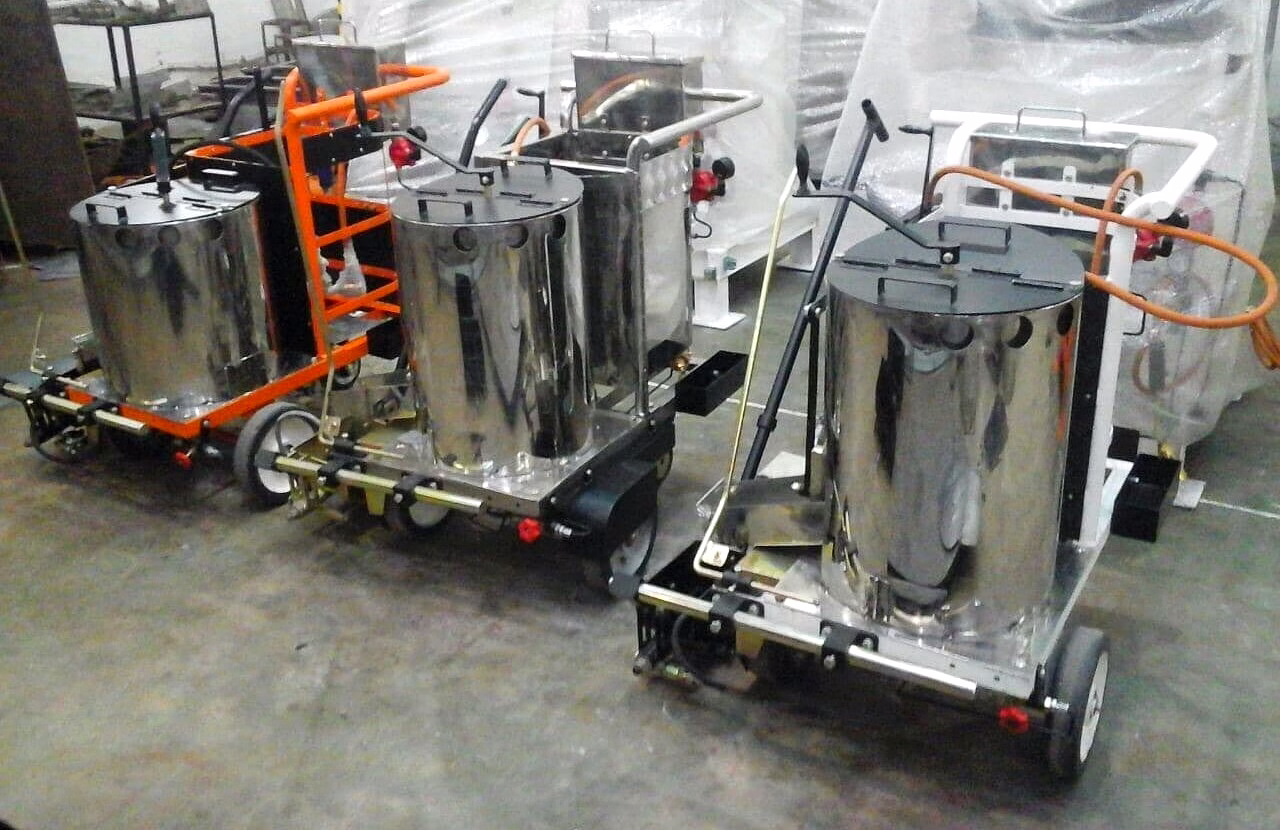

The Thermoplastic Road Marking Machine is a highly efficient and operator-propelled device designed specifically to apply durable and precise traffic lines on both bituminous and concrete road surfaces. Featuring a robust stainless steel marking screed box available in 10 cm and 15 cm widths, this machine ensures sharp and fine alignment of road markings, facilitated by a rear wheel auto-lock system. Its manual agitator within the 100 kg stainless steel paint container guarantees consistent thermoplastic paint mix, while the adjustable screed thickness is precisely controlled via a rotating knob. Enhanced with a specialized glass bead spraying mechanism with 10 cm and 15 cm spray widths, including a 10 kg bead storage container with an indicator, it maximizes road visibility and safety. The equipment includes reliable LPG burners with quality torch, valves, and adaptors for optimal paint heating, reinforced by a bimetal paint temperature gauge. For thermoplastic paint feeding, a complementary unit with a 300 kg stainless steel tank maintains continuous feed of heated paint, powered by a 5 hp air-cooled diesel engine with a 3” - 15:1 gearbox to drive the agitator, ensuring uniform paint consistency. This unit employs high-pressure industrial LPG burners for efficient heating of thermoplastic paint, thermic oil, and screed, each with separate temperature gauges for precise temperature management. Designed for mounting on a mini truck or tempo, the thermoplastic feeding unit features a material transfer funnel for seamless paint supply to the applicator. Together, these features culminate in a highly reliable road marking solution for comprehensive traffic safety and management.
Key Features
| Features | Description |
|---|---|
| Marking Screed Box Width | 10 cm and 15 cm options |
| Screed Thickness Adjustment | Rotating knob mechanical control |
| Paint Container Capacity | 100 kg stainless steel with manual agitator |
| Glass Bead Spraying Mechanism | 10 cm and 15 cm spray widths with 10 kg storage container and indicator |
| Paint Temperature Control | Bimetal paint temperature gauge included |
| Alignment System | Rear wheel auto-lock for straight and fine line marking |
| Heating System | Reputed LPG burners with torch, valves, and adaptors |
| Thermoplastic Paint Feeding Unit Capacity | 300 kg stainless steel tank |
| Engine Power | 5 hp air cooled diesel engine powering agitator |
| Mounting Type | Mini truck or tempo mounted with material transfer funnel |
| Attributes | Description |
|---|---|
| Model | LRMM – 300 |
| Material | Stainless steel construction for durability |
| Paint Feeding Mechanism | Continuous feeding of heated thermoplastic paint |
| Temperature Gauges | Separate gauges for paint and thermic oil |
| Gearbox | 3" - 15:1 ratio for agitator drive |
| Operator Type | Operator propelled |
| Glass Bead Container | 10 kg capacity with indicator |
| Burner Type | High-pressure industrial LPG burners |
| Screed Box Thickness Adjustment | Manual with rotating knob |
| Paint Agitation | Manual agitator in paint container and powered agitator in feeding unit |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The thermoplastic paint feeding unit is equipped with a 300 kg stainless steel tank designed to continuously feed heated thermoplastic paint to the road marking machine.
The machine allows thickness adjustment of the thermoplastic markings via a rotating knob on the marking screed box, enabling operators to set the desired paint layer thickness accurately.
Yes, the marking screed box and glass bead spraying mechanism both come in two sizes, 10 cm and 15 cm, to accommodate different width requirements for road markings.
The machine uses high-pressure industrial LPG burners for heating thermoplastic paint, thermic oil, and screed, complemented by separate temperature gauges ensuring optimal heating conditions.
The road marking machine is operator propelled, allowing better control and maneuverability during road marking tasks.
Glass beads are stored in a dedicated 10 kg container with an indicator for monitoring supply, and sprayed via a mechanism synchronized with the marking width to enhance road visibility.
Country Of Origin: India

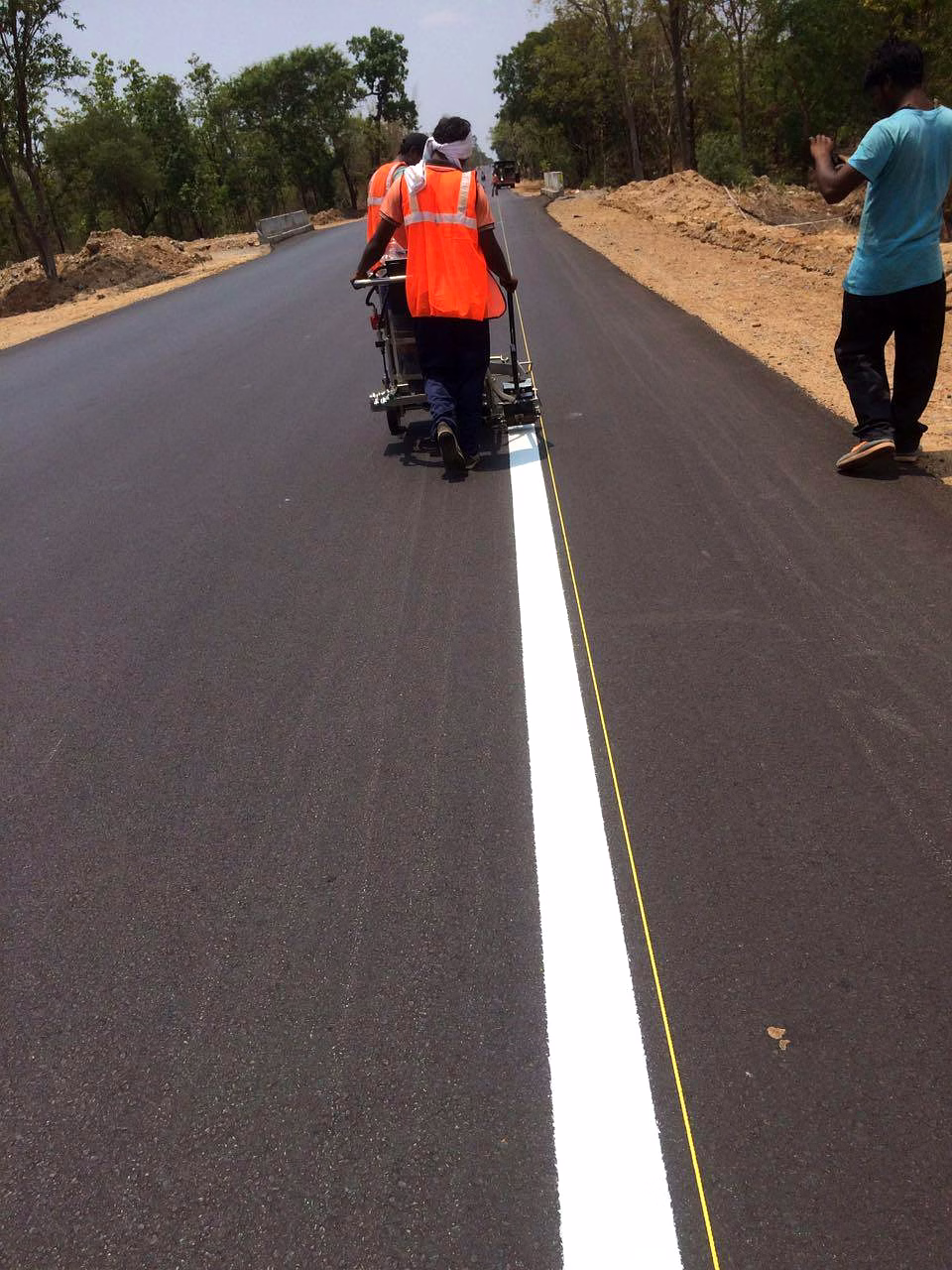

The road marking machine is an equipment used to delineate diverse traffic lines on bituminous and concrete road surface in order to provide guidance and information to motorists and pedestrians.

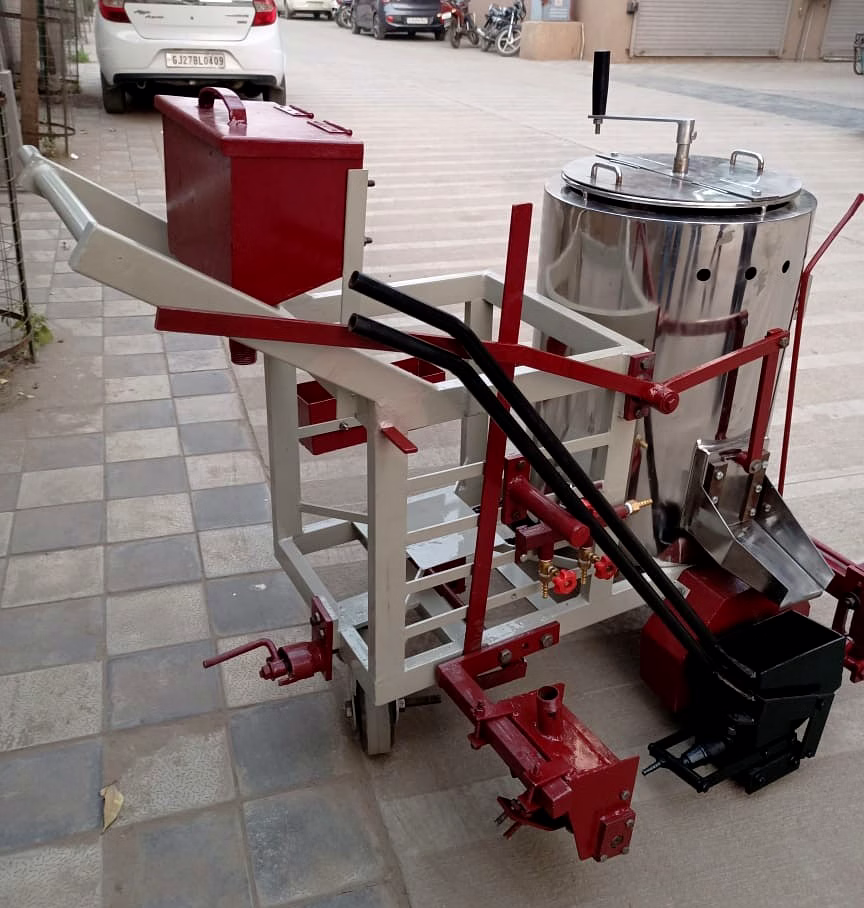

1. ROAD MARKING MACHINE, MODEL LRMM – 300 : TECHNICAL SPECIFICATION
• Stainless Steel of 100 kg with manual agitator.
• Marking screed box of 10 cm &15 cm each
• Thickness adjustment with rotating knob.
• Glass bead spraying mechanism of 10 cm & 15 cm each
• 10 kg. glass bead storage container with indicator
• Bimetal paint temperature gauge
• Straight & fine alignment of markings through rear wheel auto lock
• LPG burners, torch, valves, adaptors etc. attached are of reputed and reliable make
• Operator propelled
THERMOPLASTIC ROAD MARKING

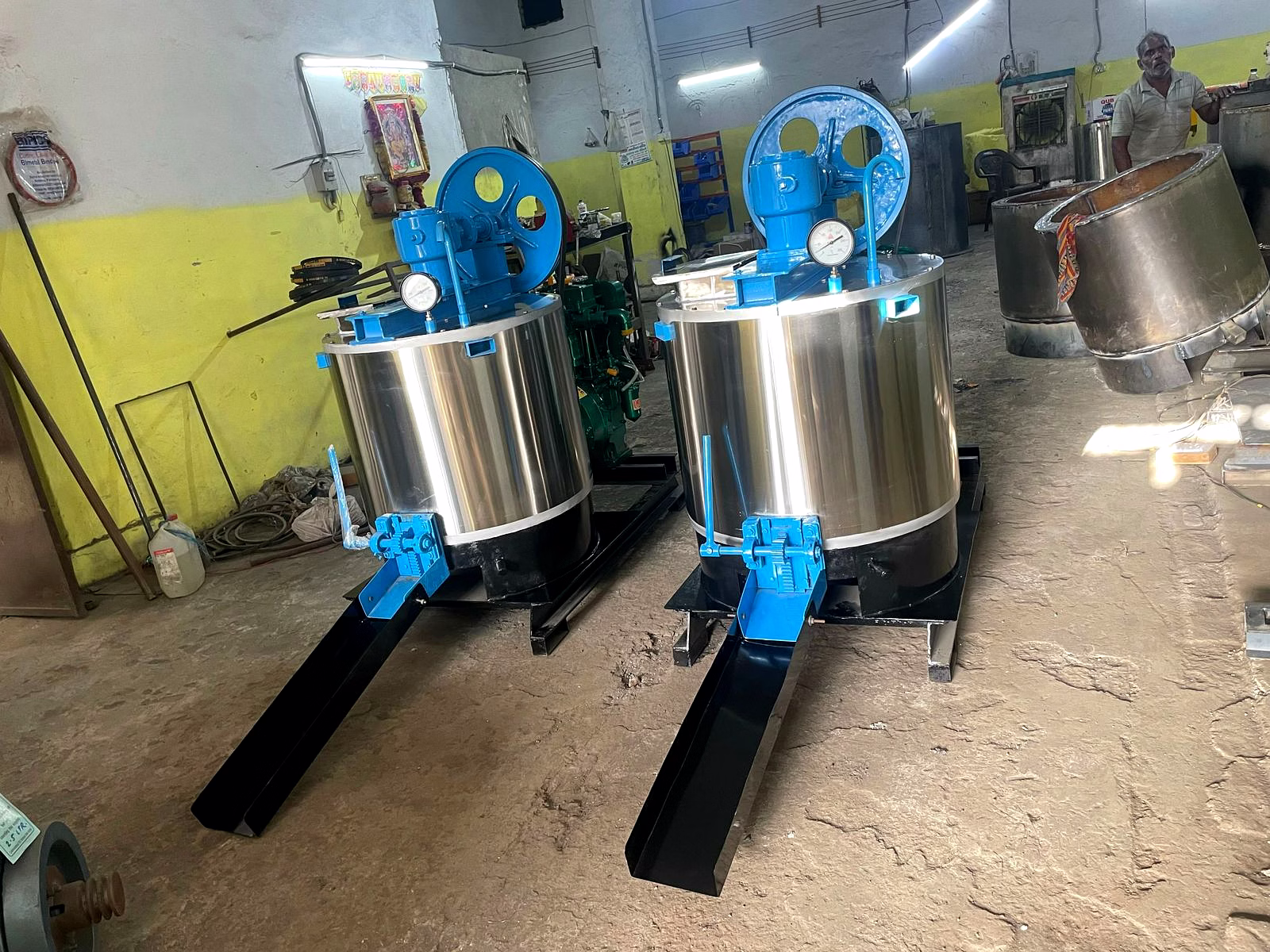

• This unit feeds continuously heated thermoplastic paint to the Road Marking Machine (Applicator)
• Stainless Steel tank of 300 kg
• High-pressure industrial type LPG burners for heating of thermo plastic paint, thermic oil and screed
• Separate temperature gauge for paint and thermic oil
• 5 hp air cooled diesel engine for powering agitator driven by 3” - 15:1 gearbox for agitation of paint inside tank
• Mini Truck or Tempo mounted unit with material transfer funnel to Road Marking Machine (Applicator).
