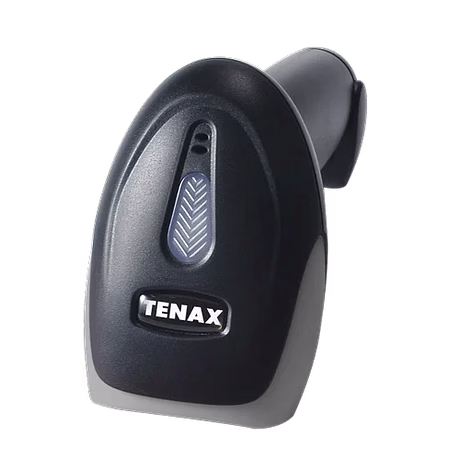

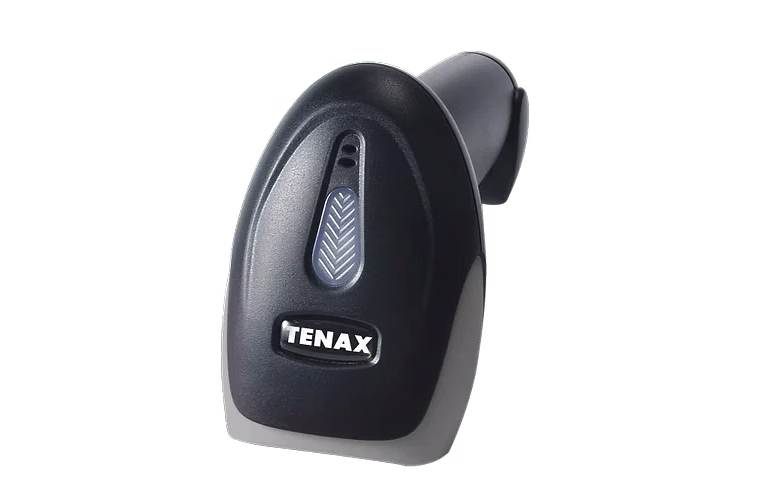

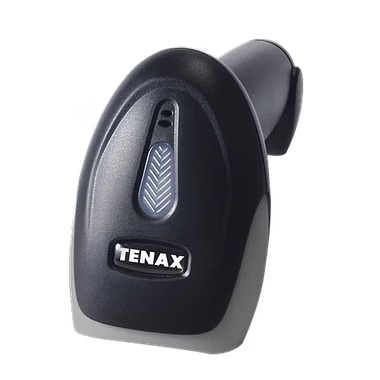

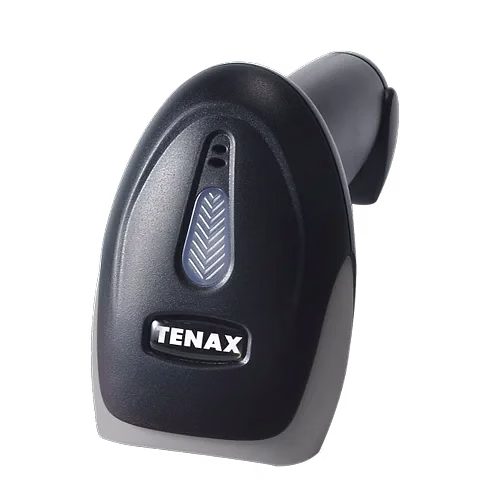

TENAX TS220W Handheld Wired 2D Scanner

Brand: pos bank

Inclusive of all taxes

The TENAX TS220W Handheld Wired 2D Scanner is a robust and versatile barcode scanning solution designed for commercial and industrial applications. Equipped with a high-resolution 640x480 pixel CMOS image sensor, it efficiently scans both 1D and 2D barcodes including QR codes, Data Matrix, PDF417, and many more. Featuring a wired interface with USB, RS-232, and Serial Port connectivity, this device offers flexibility and easy integration with various operating systems like Windows, iOS, Android, and Linux. The scanner ensures optimal readability with a 625 nm aiming LED and 4000K illumination LED while providing a wide scan angle of ±55° horizontally and vertically, plus 360° rotation capability for effortless scanning. Designed to withstand harsh work environments, it boasts strong drop resistance from heights up to 2 meters, an IP52 rating for dust and water protection, and a high-temperature-resistant 1.8-meter cable for durability. The LED indicator and buzzer give clear feedback during operation, and the plug-and-play setup minimizes downtime. Compact and lightweight with dimensions of 175 x 68 x 94 mm and weighing only 183 grams, the TENAX TS220W is an ideal choice for businesses seeking a reliable, high-performance wired barcode scanner that combines durability with high functionality in retail, logistics, manufacturing, and healthcare sectors.

Key Features

Features Description
Barcode Types Supported Reads both 1D (UPC, EAN, Code 39, Code 128, etc.) and 2D (QR Code, Data Matrix, PDF417, Aztec) barcodes
Interface Options Wired with USB, RS-232, and Serial Port connectivity
Image Sensor 640 (H) x 480 (V) pixel CMOS sensor
Operating Modes Handheld (Manual) and Hands-free (Automatic) scanning
Durability Drop resistant up to 2 meters, IP52 dust and water protection
Cable 1.8 meters long, high temperature resistant
Power Input Voltage: 5VDC ±5%
Compatibility Supports Windows, iOS, Android, Linux operating systems
Scan Angle ± 55° Left/Right, ± 55° Front/Rear with 360° rotation
Feedback LED indicator with buzzer for operational status
Attributes Description
Image Resolution 640 x 480 pixels
Light Source 625 nm aiming LED; 4000K illumination LED
Scan Mode Handheld & Hands-free
Transmission Mode Wired
Cable Length 1.8 meters
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +70°C
IP Rating IP52
Drop Resistance Up to 2 meters
Dimensions (LxWxH) 175 x 68 x 94 mm
Weight 183 grams (with cable)
Case Material ABS+PC & TPU
Color Black

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

Yes, the TENAX TS220W supports Linux along with Windows, iOS, and Android operating systems.

The scanner can withstand drops from heights up to 2 meters, making it highly durable for industrial environments.

Yes, this scanner supports both handheld manual scanning and hands-free automatic scanning modes.

It can decode common 2D barcodes including QR Code, Data Matrix, PDF417, Aztec, Maxicode, and GS1 DataBar stack.

Yes, it includes an LED indicator and buzzer to signal successful scans and operational status.

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: pos bank

Country Of Origin: China

 LED Indicator with Buzzer

- Support USB, RS-232, Serial Port

- Strong drop resistance

- High temperature resistant cable

- Plug and Play

- Read 1D and 2D Barcodes

Image(Pixels): 640 (H)*480 (v) pixels

Scan Mode: Handheld (Manual) / Hand free (Automatic )

Interface: USB, RS-232, Serial Port

OS: Windows, iOS, Android, Linux

Power: Input Voltage: 5VDC±5%

Light Source: Aiming: 625 nm LED; Illumination: 4000K LED

Scan Angle: Left & Right: ± 55°, Front & Rear: ± 55°, Rotate: 360°

Image Sensor: CMOS

Transmission Mode: Wired Transmission

Cable Length: 1.8 Meters

Environmental: Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +70°C

IP Rating: IP 52

Drop Resistance: 2 Meters

Dimension L x W x H: 175*68*94(mm)

Weight : 183 Gms (with cable)

Case Material: ABS+PC & TPU

Colour: Black

Decoding: 1D: UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8, JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode),RSS-14、RSS-Limited, RSS-Expand, etc. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Dotcode, GS1 DataBar stack, etc.
