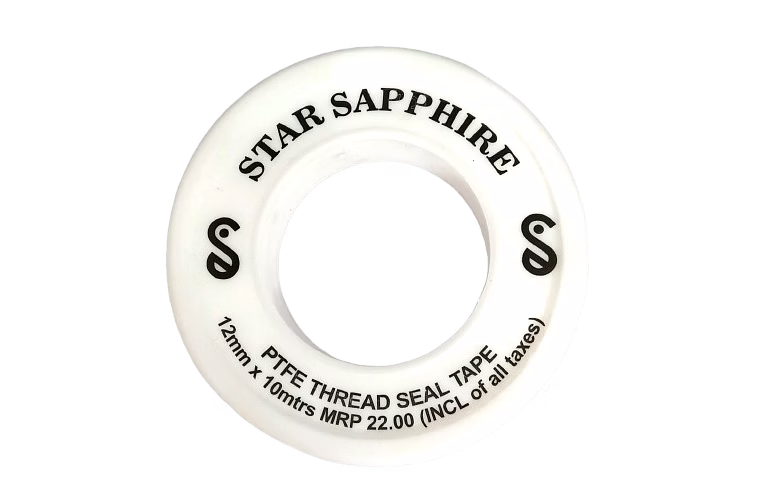

STAR Sapphire PTFE Thread Seal Tape is a premium quality, medium density sealing tape designed specifically for reliable, leak-proof joints in plumbing and gas fittings. Manufactured from 100% pure virgin PTFE, this tape offers superior sealing performance with less than 0.1% residual lubricant, ensuring a clean, safe, and effective seal. Available in two colors — white for water applications and yellow for gas — it meets the highest standards of safety and durability. With thickness precision (0.1mm ±5%) and lengths of 10 meters, it is ideal for sealing threaded pipe joints up to 50mm nominal bore. The tape’s high elongation, tensile strength, and wide temperature resistance (-250° to +200°C) ensure excellent durability even under extreme pressure (100–150 KG/CM²). Resistant to acids, alkalis, solvents, and chemicals, STAR Sapphire PTFE Thread Seal Tape fills thread voids effectively, preventing leaks and enabling easy assembly and disassembly. FDA approved for indirect food contact and OSHA compliant, it is a trusted choice for industrial, commercial, and professional use in plumbing, gas, and air systems.
Key Features
| Features | Description |
|---|---|
| Material Composition | 100% Virgin PTFE (Polytetrafluoroethylene) |
| Color Options | White (Water), Yellow (Gas) |
| Width Options | 12 mm, 19 mm, 25 mm |
| Thickness | 0.1 mm ±5% |
| Length per Roll | 10 Meters |
| Density | 0.3 gm/cm³ |
| Elongation at Break | ≥ 50% |
| High Pressure Resistance | 100 – 150 KG/CM² |
| Tensile Strength | ≥ 8 MPa |
| Temperature Range | -250°C to +200°C |
| Chemical Resistance | Resistant to acids, alkalis, solvents, and chemicals |
| Certifications | FDA approved (21CFR175), OSHA compliant (29CFR 1910.12009(c)) |
| Attributes | Description |
|---|---|
| Intended Application | Sealing threaded joints in plumbing, gas pipelines, compressed air systems |
| Suitable Pipe Size | Up to 50mm nominal bore |
| Thread Compatibility | Taper/Taper and Taper/Parallel threaded connections |
| Residual Lubricant | < 0.1% |
| Toxicity | Non-toxic |
| Flammability | Non-flammable |
| Lubrication | Self-lubricating |
| Seal Type | Positive pressure seal |
| Assembly | Easy to assemble and disassemble |
| Food Safety | FDA approved for indirect food contact |
| Regulatory Compliance | Classified as 'ARTICLE' under OSHA standard 29CFR 1910.12009(c) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the tape is color-coded with white for water and yellow for gas applications, making it suitable and safe for use in both types of pipelines.
The tape can resist pressures from 100 to 150 KG/CM² and can operate effectively between -250°C and +200°C.
Yes, it is compatible with taper/taper and taper/parallel threaded connections, accommodating a wide range of threaded pipe joints.
The tape offers a positive pressure seal while also enabling easy assembly and disassembly, making maintenance convenient.
Yes, the tape is FDA approved for indirect food contact under 21CFR175, ensuring it is safe for potable water systems.
Brand: star sapphire
Country Of Origin: India
Star Sapphire PTFE Threaded Seal Tape is medium density, premium quality, available in white & yellow color for Water & Gas respectively. It is manufactured from 100% pure virgin PTFE and containing less than 0.1% of residual lubricant. It is self-lubricating, non-hardening, non-toxic, non-flammable tape.
SPECIFICATION:
1) Composition of Material 100% Virgin PTFE
2) Colour: White & Yellow
3) Width: 12mm, 19mm & 25mm
4) Thickness: 0.1mm (±5%)
5) Length: 10Meters
6) Density: 0.3gm/cmᶟ
7) Elongation: ≥ 50%
8) High Pressure Resistance: 100 – 150 KG/CM²
9) Tensile Strength: ≥ 8MPA
10) Temperature: +200° to -250°
APPLICATION:
It is suitable for use on pipelines of any material up to 50mm nominal bore with taper/taper or taper/parallel threaded connections. It can be successfully used with the commoner flow products such as hot and cold water (including potable water), compressed air. It is resistant to all acids, alkalis, solvents and chemicals over wide operating temperature. Fills irregular voids between threads. Easy to assemble and disassemble. Its offers positive pressure seal.
STANDARDS AND CERTIFICATION LISTINGS:
