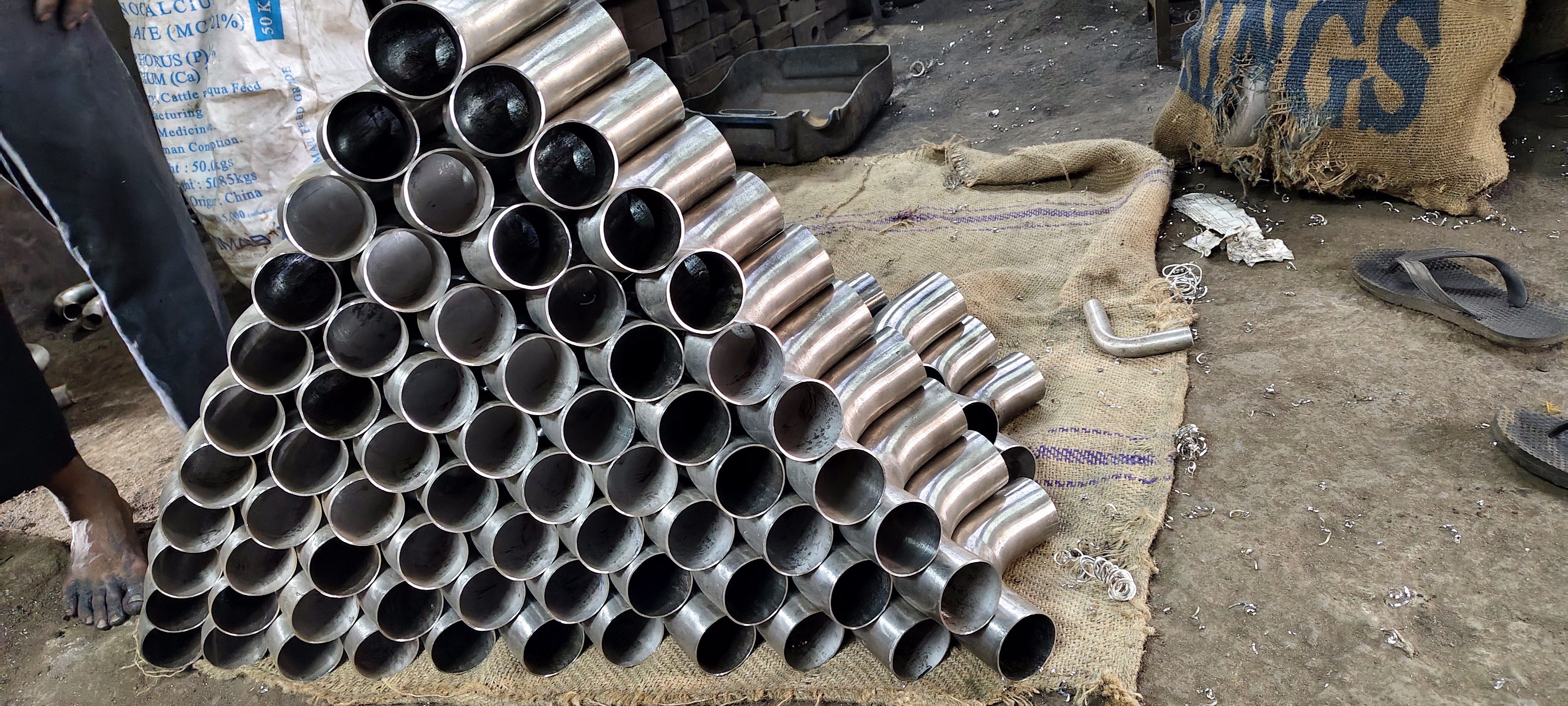

The Stainless Steel (SS) 1.5D Bend is a precision-engineered pipe elbow designed to deliver optimal fluid flow performance in industrial piping systems. Featuring a centerline radius 1.5 times the nominal pipe diameter, this long-radius bend significantly reduces turbulence and friction, ensuring efficient fluid transfer and minimizing pressure loss. Crafted from high-quality stainless steel, commonly grades 304 and 316, this bend offers superior corrosion resistance, mechanical strength, and durability, making it ideal for demanding environments such as chemical processing, dairy production, plumbing, and automotive exhaust systems. Available in standard angles like 90° and 180°, the SS 1.5D Bend facilitates smooth directional changes in piping layouts without compromising structural integrity or flow efficiency. The precise radius and premium material composition ensure compliance with industry standards, providing reliable service in sanitary and industrial applications that require long-lasting and hygienic piping solutions.
Key Features
| Features | Description |
|---|---|
| Material | Stainless Steel (Grades 304, 316) |
| Centerline Radius | 1.5 times Nominal Pipe Diameter (1.5D) |
| Bend Type | Long Radius (LR) Elbow |
| Available Bend Angles | 90°, 180° |
| Corrosion Resistance | High corrosion resistance suitable for chemical and food processing |
| Applications | Industrial piping, chemical plants, dairy processing, plumbing, automotive exhaust systems |
| Flow Efficiency | Reduced friction and turbulence due to long-radius bend design |
| Durability | Robust construction for high-pressure and high-temperature environments |
| Compliance | Manufactured to meet industry standards for sanitary and industrial piping |
| Attributes | Description |
|---|---|
| Material Grades | SS 304, SS 316 |
| Centerline Radius | R = 1.5D (where D is nominal pipe diameter) |
| Bend Radius Example | For 2-inch pipe: Radius = 3 inches |
| Bend Angles | 90 degrees, 180 degrees |
| Surface Finish | Polished or mill finish available |
| Pressure Rating | Dependent on pipe specification and stainless steel grade |
| Temperature Range | -196°C to 870°C (varies by SS grade) |
| Standards Compliance | ASTM A403, ASME B16.9, ISO 9001 certified manufacturing |
| Weight | Varies by pipe diameter and wall thickness |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The 1.5D bend has a larger centerline radius which reduces friction and turbulence, resulting in better flow efficiency and less pressure drop compared to a 1D short radius bend, making it ideal for applications requiring smooth fluid dynamics.
Grades 304 and 316 are commonly used; Grade 304 suits general chemical and food industry applications, while Grade 316 offers enhanced corrosion resistance, making it ideal for more corrosive environments or higher hygienic standards like dairy processing.
Yes, while 90° and 180° bends are most common, many manufacturers offer customization in bend angles and surface finishes including polished surfaces for sanitary applications.
Yes, depending on the stainless steel grade and pipe specifications, the 1.5D bends can withstand high temperatures (up to approximately 870°C) and substantial pressures, making them suitable for various industrial scenarios.
They generally comply with ASTM A403 for stainless steel fittings, ASME B16.9 for factory-made wrought steel butt-welding fittings, and are manufactured under ISO 9001 certified processes.
