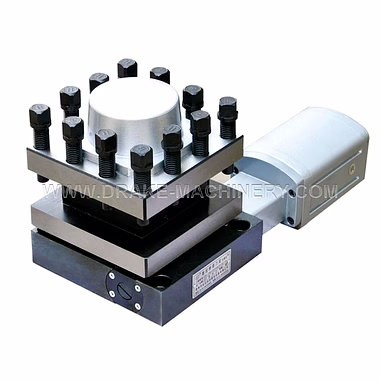

Introducing the SQUARE-TURRET-SQT-190-87-CC, an advanced turret solution specifically designed for flat bed CNC lathes. This innovative product features a robust 3-piece face gear system that enables efficient indexing without the need to lift the turret. The clamping mechanism is powered through a combination of cam and disc springs, providing consistently rigid clamping necessary for high-precision applications. With a focus on speed, this turret allows for fast unidirectional indexing, significantly enhancing productivity. Additionally, it comes with the option for internal coolant support, which is ideal for BWS drills, making it a versatile choice for complex machining tasks. The turret is available in a standard 4-position setup, with an additional option for a 6-position turret, allowing flexibility based on your specific production needs. This makes the SQUARE-TURRET-SQT-190-87-CC a perfect fit for manufacturers looking to enhance their CNC machining capabilities.
Key Features
| Features | Description |
|---|---|
| Compatibility | For use on flat bed CNC lathes. |
| Indexing Mechanism | 3 Piece face gear allows turret to be indexed without lifting. |
| Clamping System | Clamping through Cam and disc spring ensures consistent rigid clamping. |
| Indexing Speed | Fast unidirectional indexing for high efficiency. |
| Coolant Option | Option with internal coolant allows use of BWS drills. |
| Position Options | 4 Position as standard, option for 6 position available. |
| Attributes | Description |
|---|---|
| Price | Ex Works Belagavi. |
| Payment Terms | 50% Advance along with PO, Balance against Proforma Invoice before dispatch. |
| GST | As Applicable at the time of Delivery. |
| Packing & Forwarding | Extra @ 5%. |
| Freight | Freight to Pay Basis. |
| Transit Insurance | Extra @ 0.5%. |
| Delivery | Ex Stock Subject to prior sale, confirm delivery date beforehand. |
| Warranty | 12 months from the date of shipment; limited to repair/replacement of manufacturing defects. |
| Force Majeure | Not responsible for delivery failure due to force majeure. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The warranty period is 12 months from the date of shipment, covering manufacturing defects only.
Yes, the turret comes standard in a 4-position design, with an option to upgrade to 6-position.
Yes, the SQUARE-TURRET-SQT-190-87-CC offers an optional internal coolant setup, suitable for BWS drills.
The turret employs a cam and disc spring clamping mechanism for consistently rigid clamping.
The payment terms are 50% advance along with the Purchase Order, with the balance due against a Proforma Invoice before dispatch.
Brand: pragati
Country Of Origin: India
SQUARE-TURRET-SQT-190-87-CC by Pragati is a precision-engineered square turrets designed for high-performance CNC machining operations. It offers robust clamping, consistent accuracy, and enhanced cycle efficiency, making it suitable for heavy-duty industrial applications and global machine tool exports.
