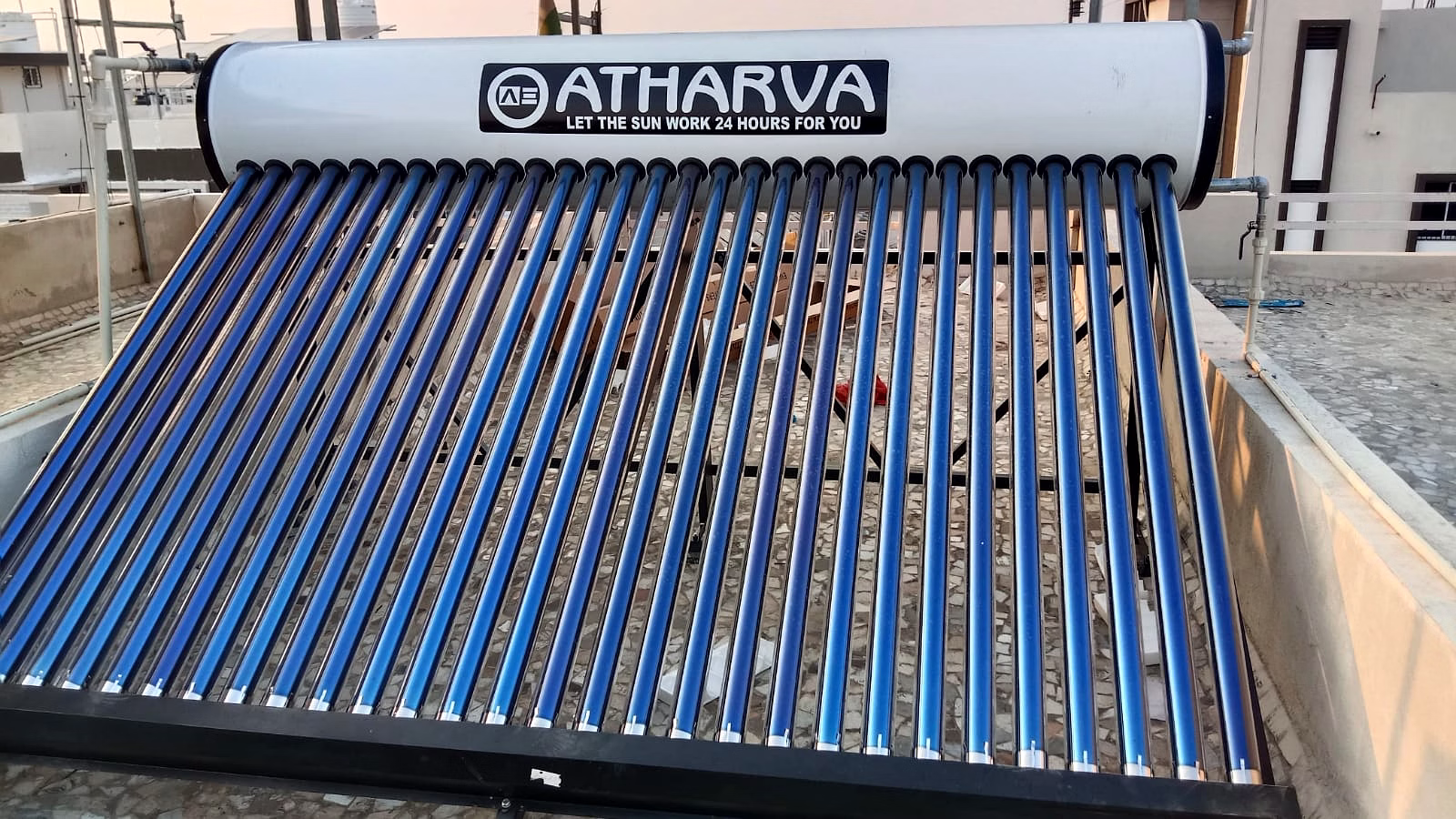

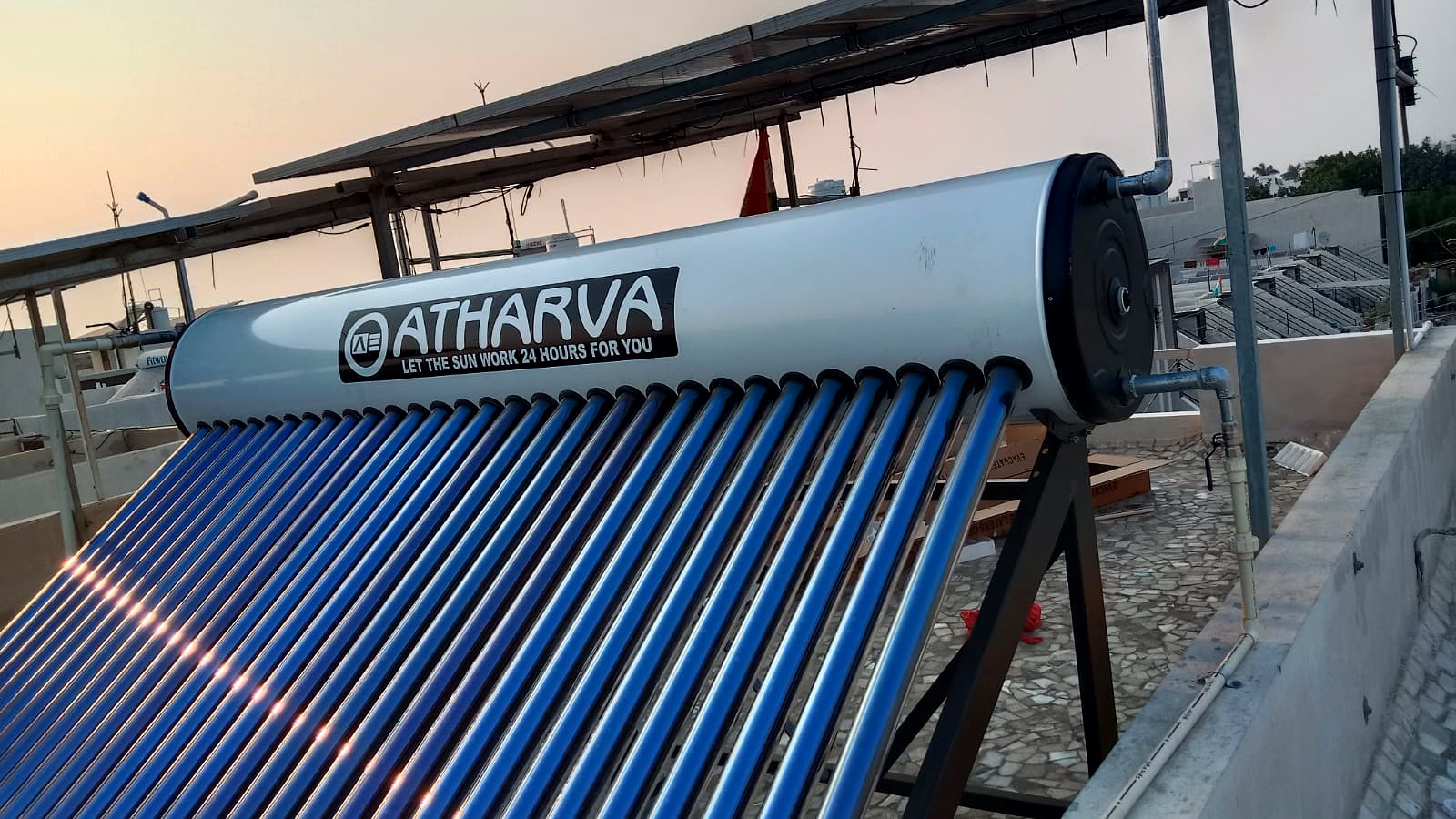

This high-capacity 200 LPD Solar Water Heater features a robust Galvanized Iron (GI) inner tank with a 2 mm thickness, expertly coated with an all-weather proof anti-corrosive layer to ensure durability and longevity. The water heater is equipped with 20 high-efficiency 3-layer vacuum tubes for optimized thermal performance, supported by a sturdy GI frame structure designed for secure rooftop installation. The system employs 50-65 mm thick polyurethane foam insulation that helps retain heat effectively, maintaining hot water availability for up to 48 hours. The tank operates as a non-pressurized unit with a maximum temperature range of 60°C to 80°C, making it suitable for soft to moderately hard water types. Ideal for commercial and industrial applications needing reliable, sustainable hot water supply, this solar water heater combines strength, weather resistance, and energy efficiency in a single package.
Key Features
| Features | Description |
|---|---|
| Tank Capacity | 200 Litres Per Day |
| Tank Material | 2 mm Thick Galvanized Iron (GI) with Anti-Corrosive Coating |
| Vacuum Tubes | 20 High-Efficiency 3-Layer Vacuum Tubes |
| Tank Insulation | 50-65 mm Thick Polyurethane Foam (PUF) for Thermal Retention |
| Supporting Frame | Durable Galvanized Iron (GI) Structure |
| Inner Tank Coating | All Weather Proof Anti-Corrosive Coating |
| Operating Temperature Range | 60°C to 80°C |
| Water Type Compatibility | Suitable for Soft to Moderately Hard Water |
| Pressure | Non-Pressurized (Max 1 Bar) |
| Installation | Horizontal Mounting, Rooftop Installation Compatible |
| Attributes | Description |
|---|---|
| Tank Material | Galvanized Iron (GI) with Powder Coating |
| Inner Tank Thickness | 2 mm |
| Tank Capacity Range | 100 LPD to 500 LPD |
| Anti-Corrosive Inner Coating | Glass-Lined / Epoxy / Polymer Coating |
| Outer Tank Coating | UV Resistant Powder Coating |
| Tank Insulation Material | Polyurethane Foam (PUF) |
| Insulation Thickness | 50-65 mm |
| Vacuum Tubes Quantity | 20 |
| Vacuum Tube Layer | 3-Layer |
| Supporting Frame Material | Galvanized Iron (GI) |
| Maximum Operating Temperature | 80°C |
| Tank Pressure | Non-Pressurized (Max 1 Bar) |
| Suitable Water Type | Soft to Moderately Hard Water |
| Expected Service Life | 5 to 8 Years |
| Installation Type | Horizontal Rooftop Mount |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The GI tank features a robust 2 mm thick Galvanized Iron construction combined with an all-weather proof anti-corrosive coating, including powder coating on the outer surface, which protects it from rust, UV rays, and other environmental elements.
The 3-layer vacuum tubes significantly reduce heat loss compared to single or double-layer tubes by providing superior insulation and vacuum pressure, resulting in better heat retention and water heating efficiency.
This system is optimized for soft to moderately hard water. Using it with very hard water might reduce its lifespan and efficiency because mineral deposition can impact the vacuum tubes and tank coating.
The heater uses 50-65 mm thick Polyurethane Foam (PUF) insulation around the tank, which helps maintain the water temperature for up to 48 hours by minimizing heat loss.

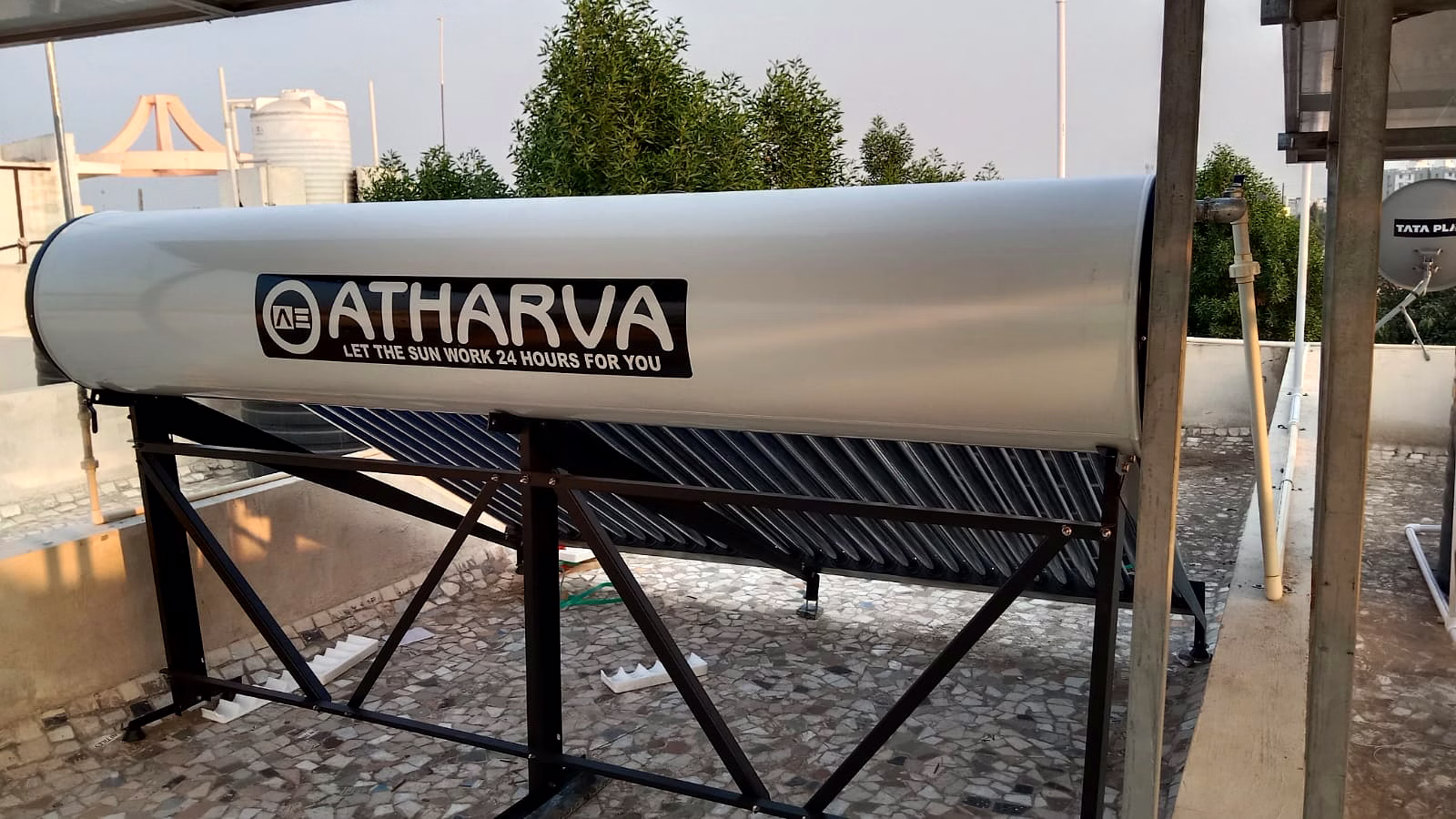

The solar water heater is designed for horizontal mounting and is suitable for rooftop installation with the integrated durable GI framework supporting the entire structure.
With proper maintenance and suitable water quality, the GI tank solar water heater is expected to last between 5 to 8 years.
Brand: atharva
Country Of Origin: India
Solar Water Heater :200 LPD GI TANK
> 2MM GI TANK THINKNESS
> ALL WETHAR PROOF COTING INNER TANK
> 3 LAYER VACUUM TUBE
> GI SUPPORTING FRAME STRUCTRU
> 20 VACUUM TUBE IN TANK
Solar Water Heater : 200 LPD GI TANK
> 2MM GI INNER TANK THINKNESS
> ALL WETHAR PROOF COTING INNER TANK
> 3 LAYER VACUUM TUBE
> GI SUPPORTING FRAME STRUCTRU
> 20 VACUUM TUBE IN TANK
🔧 GI Tank Solar Water Heater Specifications:
Parameter Typical Specification
Tank Material : Galvanized Iron (GI), often powder-coated or epoxy-coated
Tank Coating (Inner) : Anti-corrosive coating (Glass-lined, Epoxy, or Polymer)
Tank Capacity : 100 LPD to 500 LPD (Litres Per Day)
Outer Tank Material : GI sheet with powder coating (UV and weather-resistant)
Tank Insulation : 50–65 mm thick PUF (Polyurethane Foam)
Thermal Insulation : Keeps water hot for 24–48 hours
Tank Pressure : Non-pressurized (max 1 bar); high-pressure versions are rare
Max Temperature : 60°C to 80°C
Expected Life : 5–8 years (depends on water quality and maintenance)
Suitable Water : Type Soft to moderately hard water (not ideal for very hard water)
Tank Mounting : Horizontal (typically), rooftop mounted
