Features:

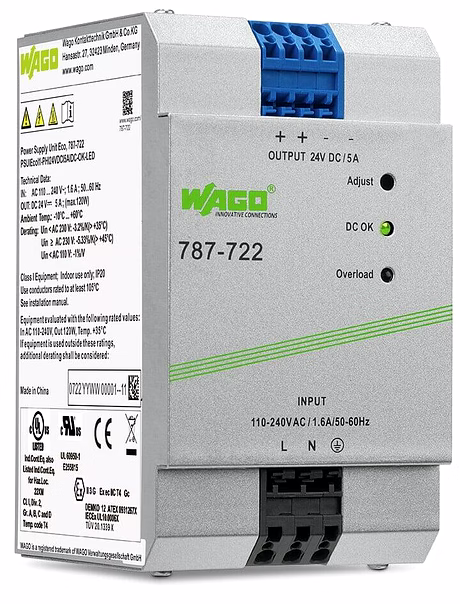

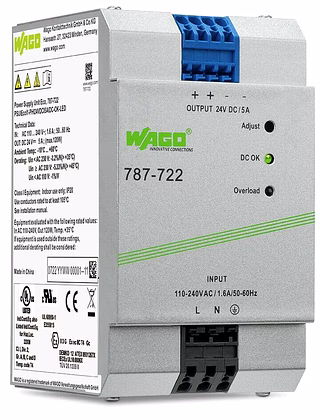

Switched-mode power supply
Natural convection cooling when horizontally mounted
Encapsulated for use in control cabinets
Suitable for both parallel and series operation
Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204
Nominal output voltage Uo nom DC 24 V (SELV)
Output voltage range DC 22 … 28 V (adjustable)
Default setting DC 24 V
Nominal output current Io nom 5 A (24 VDC)
Nominal output power 120W
Deviation ≤ 1 %
Residual ripple ≤ 100 mV (peak-to-peak)
Overload behavior Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit
Features:
Switched-mode power supply
Natural convection cooling when horizontally mounted
Encapsulated for use in control cabinets
Suitable for both parallel and series operation
Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204
Nominal output voltage Uo nom DC 24 V (SELV)
Output voltage range DC 22 … 28 V (adjustable)
Default setting DC 24 V
Nominal output current Io nom 5 A (24 VDC)
Nominal output power 120W
Deviation ≤ 1 %
Residual ripple ≤ 100 mV (peak-to-peak)
Overload behavior Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit
