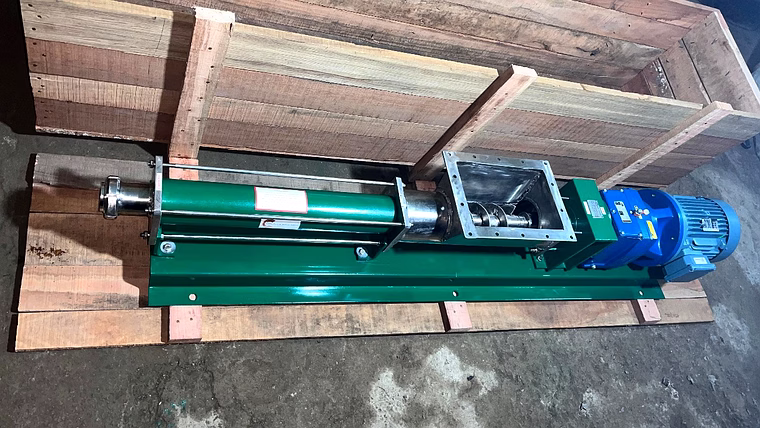

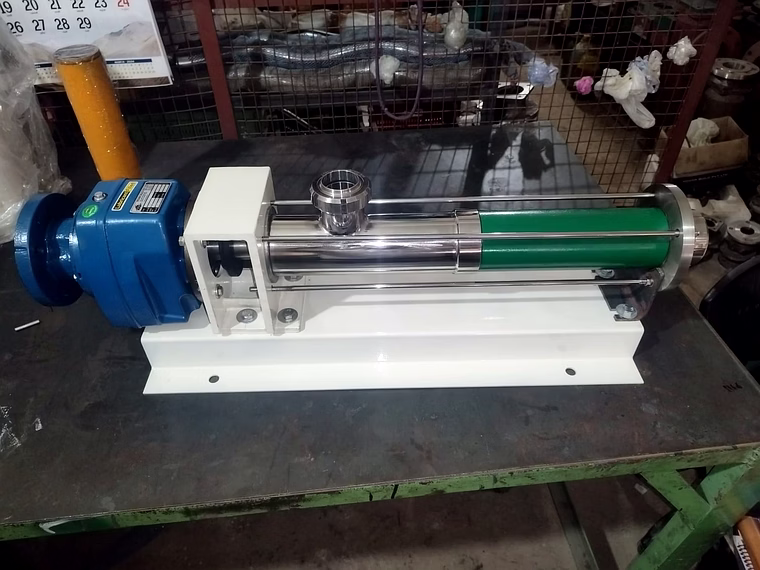

The Single Screw Pump, also known as the Progressive Cavity Pump, is designed for the efficient transfer of viscous liquids ranging from a viscosity of 50 cps to 1,000,000 cps. This bare shaft pump is ideal for a variety of industrial applications where handling thick fluids is paramount. The pump's contact parts are made from high-quality SS 304 or SS 316L materials, ensuring durability and resistance to corrosion. With options for different elastomers such as EPDM, Viton, and Nitrile, this pump is versatile and adaptable to a range of chemical environments. Designed to deliver a flow capacity of up to 200 m3/hr and a maximum head of 360 m, it can accommodate various connection sizes, including 1” (25 mm), 1-1/2” (38 mm), and larger sizes to meet your specific operational needs. Please note that this is a bare shaft version, meaning that the motor, gearbox, and base frame must be selected based on individual product specifications and operational requirements. Whether you need a single or double mechanical seal and specific seal face options, the Single Screw Pump can be customized for optimal performance in your process. For further assistance and to find the perfect pump for your application, please contact us.
Key Features
| Features | Description |
|---|---|
| Material of Construction (MOC) | SS 304/SS 316L |
| Stator Material | EPDM/Viton/Nitrile |
| Flow Capacity | Up to 200 m3/hr |
| Max Head | 360 m |
| Suction Option | Standard SMS Union, Hopper Type |
| Connection Sizes | 1" (25mm), 1-1/2" (38mm), 2" (50mm), 2-1/2" (65mm), 3" (76 mm), 4" (101mm) |
| Motor Rating Capacity | 0.75 KW to 7.5 KW and higher |
| Motor RPM Options | 3000/3600 rpm, 1500/1800 rpm |
| Frequency | 50 Hz/60 Hz |
| Phase | 3 Phase |
| Seal Type | Single/Double Mechanical Seal |
| Seal Faces Options | C/SiC, SiC/SiC, TC/TC |
| Attributes | Description |
|---|---|
| Pump Type | Single Screw/Progressive Cavity |
| Operational Viscosity Range | 50 cps to 1,000,000 cps |
| Motor Requirements | To be selected based on product specs |
| Elastomers | EPDM/Viton/Nitrile |
| Maximum Pressure (if applicable) | Dependent on motor and setup |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Single Screw Pump is specifically designed to handle viscous liquids with a viscosity range from 50 cps to 1,000,000 cps.
You can choose contact parts made from SS 304 or SS 316L, providing options based on your application’s chemical compatibility.
The right motor should be selected based on the flow capacity and head requirements of your application, considering options from 0.75 KW to 7.5 KW or higher.
Available connection sizes include 1" (25 mm), 1-1/2" (38 mm), 2" (50 mm), 2-1/2" (65 mm), 3" (76 mm), and 4" (101 mm).
Yes, the pump offers customizable sealing options, including single or double mechanical seals, with various seal face materials available.
