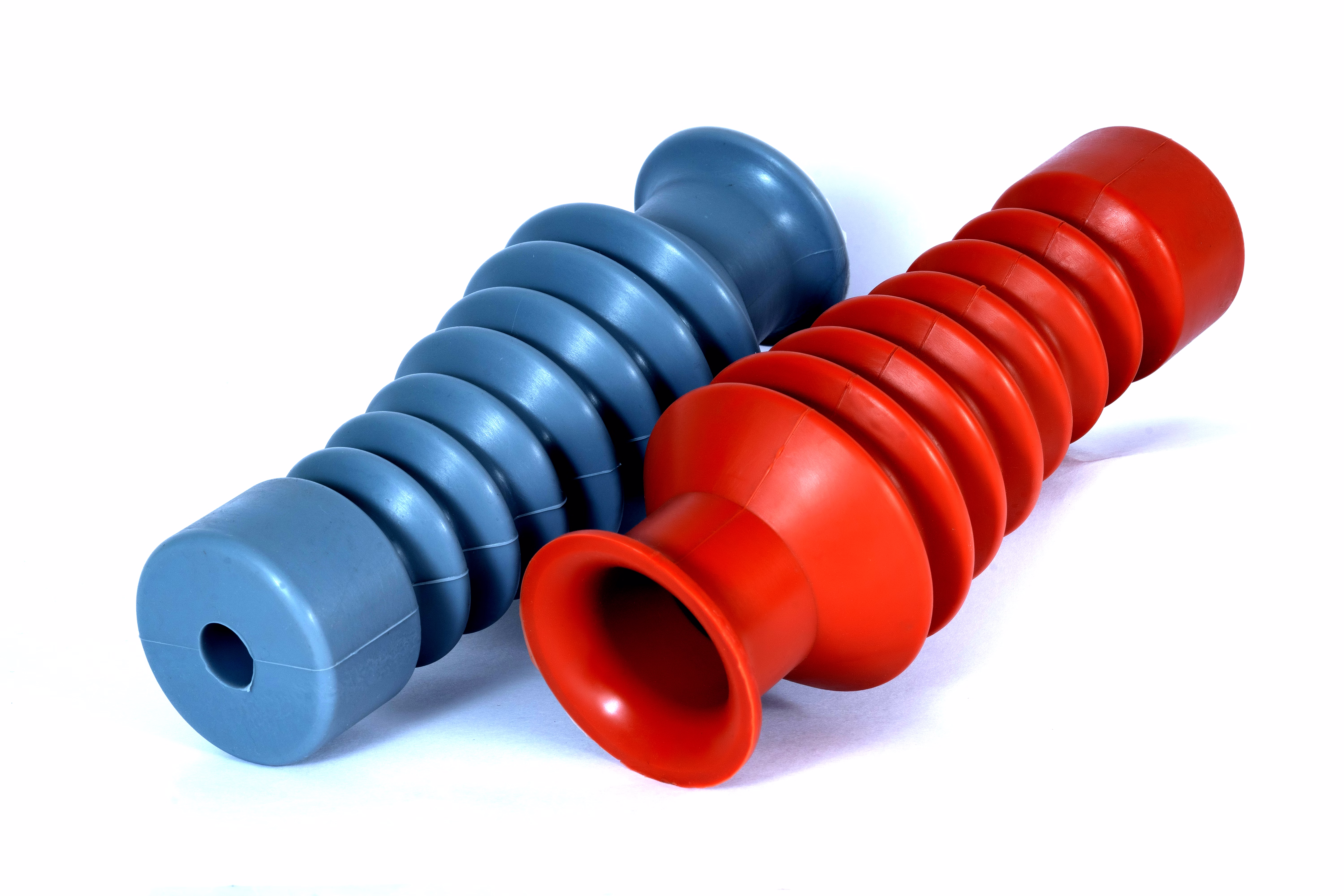

The Silicone Straight Bushing Boot is a high-performance insulating solution crafted from premium silicone rubber, providing exceptional flexibility and electrical insulation for bushing type 400/630A with a diameter of 70 mm. Designed to accommodate conductor sizes ranging from 35 to 400 mm², this boot features a versatile and flexible design suitable for both inline and right-angle applications. Its single-piece construction ensures easy installation and maintenance, with removable and reinstallable capabilities. The boot's high-grade silicone composition delivers robust temperature resistance from -60°C to +200°C, along with excellent UV, weather, and ozone resistance, ensuring reliable performance in harsh environmental conditions. Additionally, the boot offers moisture and dust sealing to protect electrical connections, an anti-tracking surface to minimize leakage currents and surface discharge, and corrosion protection against atmospheric and chemical exposure. An optional collar allows adaptation for smaller bushings (250A, 31-45mm diameter), making this product a cost-effective, broad-range insulating solution for high-voltage electrical systems.
Key Features
| Features | Description |
|---|---|
| Material | High-grade silicone rubber |
| Applicable Bushing Type | 400/630A with 70 mm diameter |
| Conductor Size Range | 35–400 mm² |
| Temperature Resistance | -60°C to +200°C |
| UV and Weather Resistance | Resistant to sunlight, ozone, rain, and environmental stress |
| Installation | Easy, removable, and reinstallable |
| Design Compatibility | Suitable for inline and right-angle applications |
| Moisture and Dust Protection | Seals electrical connections against water, dust, and contaminants |
| Anti-Tracking Surface | Reduces leakage current and surface discharge |
| Corrosion Protection | Protects terminals from atmospheric and chemical corrosion |
| Attributes | Description |
|---|---|
| Product Type | Silicone rubber bushing boot |
| Material Composition | Silicone rubber |
| Size Compatibility | Bushing diameter 70 mm (400/630A); Collars for 31–45 mm (250A) |
| Conductor Compatibility | 35–400 mm² |
| Temperature Range | -60°C to +200°C |
| Electrical Properties | High electrical insulation, anti-tracking |
| Environmental Resistance | UV, weather, ozone resistant |
| Mechanical Properties | Flexible, low compression set |
| Installation | Removable and reinstallable |
| Application | Inline and right-angle bushings |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, with the use of collars, it can properly fit smaller bushings ranging from 31 to 45 mm diameter (commonly 250A). This allows one boot size to cover a wider range of bushing sizes.
Yes, it features UV, ozone, rain, and weather resistance making it highly suitable for outdoor applications, providing durable protection against environmental stress.
The boot reliably performs in extreme temperatures from -60°C to +200°C, making it suitable for various climate conditions and industrial environments.
Yes, the boot offers effective moisture and dust sealing, protecting electrical connections from water ingress, dust, and other environmental contaminants.
Absolutely, it is designed to be removable and reinstallable, simplifying maintenance without compromising the sealing or insulating properties.
It supports conductor sizes from 35 mm² to 400 mm², covering a broad spectrum of electrical applications requiring high-voltage insulation.
Country Of Origin: India
Made of silicone rubber, which is both flexible and insulating. Easy and simple installation. Removable and reinstallable, making maintenance simple.
The flexible structure of the single design suits inline and right-angle applications.
Suit bushing type 400/630A with a diameter of 70 mm.
Collars can be used to accommodate smaller bushings (250 A with a 31–45 mm diameter). One size can cover a large range.
Conductor size: 35–400 mm2.
High-Grade Silicone Rubber: Made from durable, flexible silicone for long-term performance
Excellent Electrical Insulation: Prevents flashovers and arcing in high-voltage systems
High Temperature Resistance: Performs reliably in -60°C to +200°C environments
UV and Weather Resistant: Withstands exposure to sunlight, ozone, rain, and environmental stress
Flexible Design: Easily conforms to various bushing shapes and sizes without tearing
Moisture and Dust Sealing: Protects electrical connections from water, dust, and contaminants
Anti-Tracking Surface: Reduces risk of leakage current and surface discharge
Easy Installation: Slips on quickly with minimal tools, ideal for field or factory use
Low Compression Set: Maintains shape and sealing performance over extended periods
Corrosion Protection: Shields terminals from atmospheric corrosion and chemical exposure
