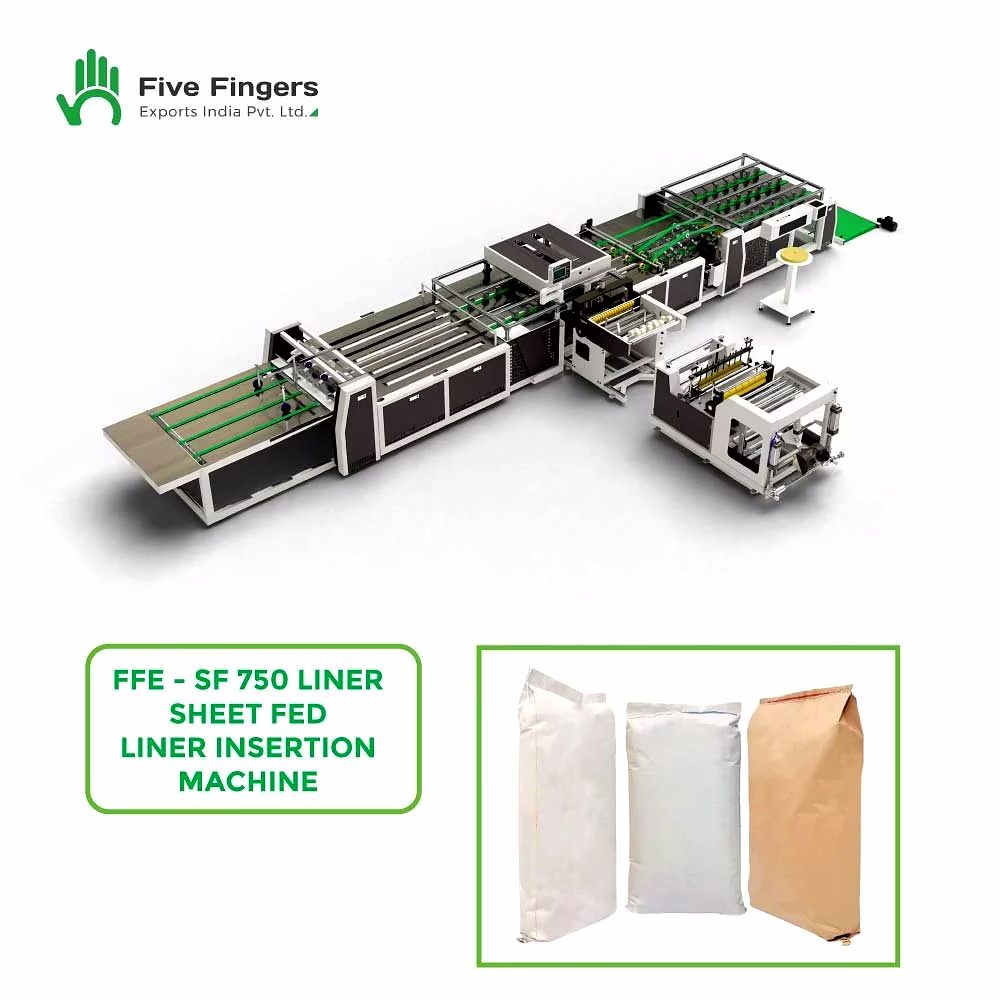

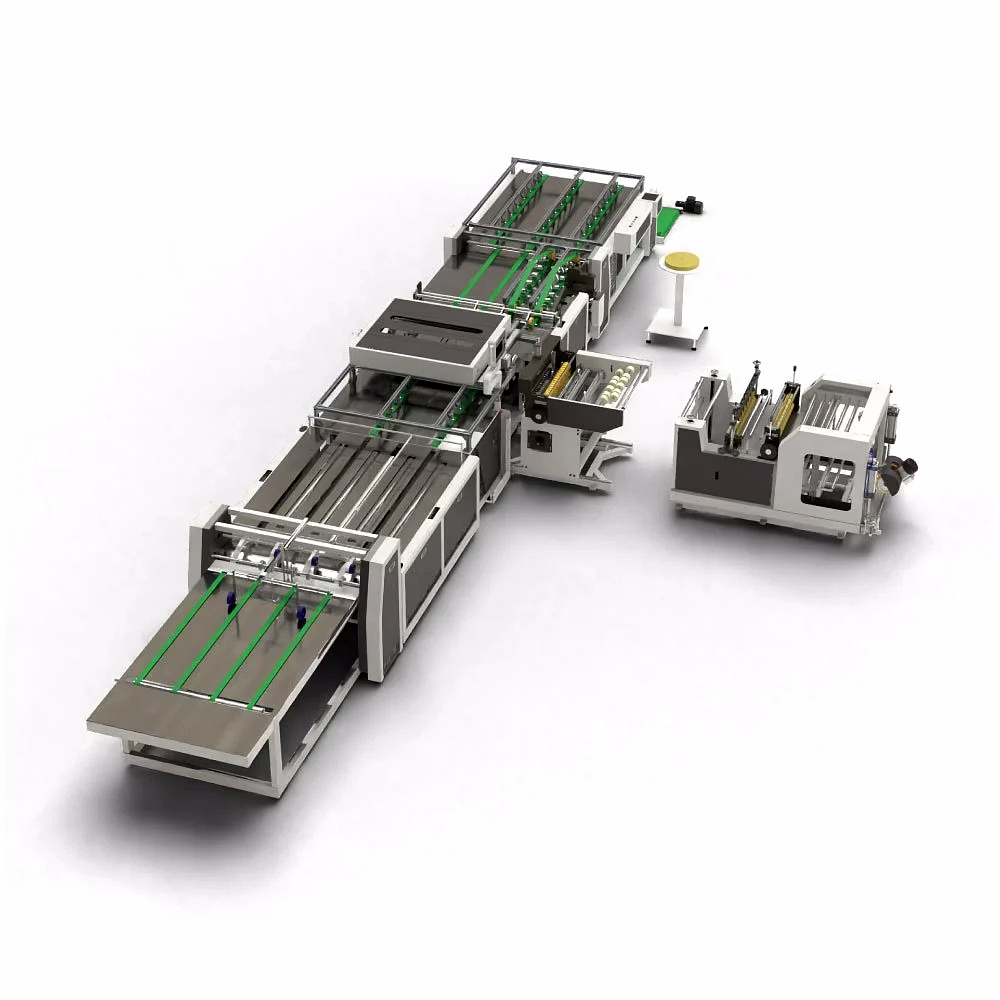

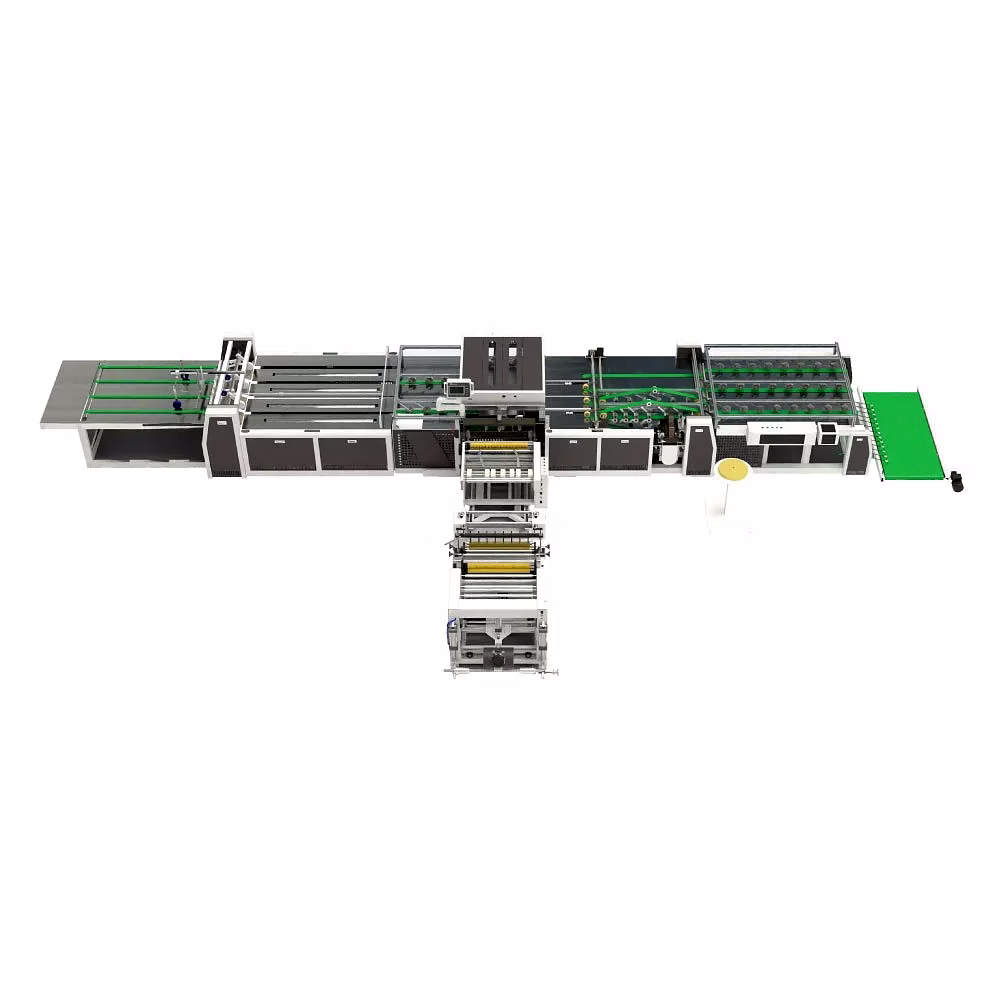

The Sheet Fed Liner Insertion Machine from Five Fingers Exports is engineered for high performance, reliability, and efficiency, standing as the pinnacle of liner insertion technology in the B2B marketplace. This fully automatic machine specializes in fast and precise liner insertion for various fabric widths ranging from 350 mm to 700 mm. With a maximum fabric diameter of 1200 mm and a maximum liner roll diameter of 500 mm, this machine can accommodate a wide variety of fabric types to cater to diverse business needs. It further features adjustable PE film applications with options for widths and thicknesses, allowing flexibility in production processes. Its user-friendly control panel and design reduce manual handling and overall downtime, leading to improved productivity and output rates of 30 to 35 pieces per minute. This advanced piece of machinery not only enables quicker manufacturing cycles but does so with a cutting accuracy of +/- 1.5 mm, ensuring top-notch quality for each finished product. Upgrade your production line with our Sheet Fed Liner Insertion Machine for an unmatched combination of efficiency and quality.
Key Features
| Features | Description |
|---|---|
| Automation | Fully automatic operation for streamlined processes. |
| Production Speed | Achieves a production speed of 30 to 35 pieces per minute. |
| Fabric Compatibility | Handles fabrics with widths between 350 mm and 700 mm. |
| Liner Roll Dimensions | Supports a maximum liner roll diameter of 500 mm. |
| PE Film Versatility | Compatible with PE film widths exceeding standard requirements. |
| Cutting Precision | Boasts a cutting accuracy of +/- 1.5 mm. |
| User-Friendliness | Designed for easy operation and flexible adjustments. |
| Power Requirement | Requires a 3-phase power supply with a total power of 33 KW. |
| Air Consumption | Operates efficiently at an air pressure of 1.2 MPa. |
| Machine Size | Dimensions: 7300 mm (L) x 6400 mm (W) x 1790 mm (H). |
| Attributes | Description |
|---|---|
| Fabric Width for Liner Inserting | 350 – 700 mm |
| Max Diameter of Fabric | 1200 mm |
| Max Diameter of Liner Roll | 500 mm |
| PE Film Width | +20 mm |
| PE Film Thickness | 20 – 80 Microns |
| Bottom Folding | 19 or 25 mm |
| Cutting Length of Fabrics | 600 – 1200 mm |
| Stitch Range | 7 – 12 mm |
| Liner Longer than Outer Bag | 30 – 100 mm |
| Air Pressure Consumption | 1.2 MPa |
| Machine Dimensions (L*W*H) | 7300 x 6400 x 1790 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The machine can handle fabric widths between 350 mm and 700 mm.
The machine achieves a production speed of 30 to 35 pieces per minute.
The machine operates efficiently at an air pressure of 1.2 MPa.
Yes, the machine is compatible with PE film thicknesses ranging from 20 to 80 microns.
The machine dimensions are 7300 mm (L) x 6400 mm (W) x 1790 mm (H).
Five Fingers Exports is the leading manufacturer of the fully automatic Sheet Fed Liner Insertion Machine in India. Our machine offers a user-friendly solution to liner insertion, improving production speed and overall efficiency. With easy operation and flexible adjustments, it helps reduce downtime and manual work. Designed for high-quality results, it ensures smoother operations and better performance. Choose us for an efficient, time-saving liner insertion solution.
TECHNICAL PARAMETERS
Fabric width for Liner inserting: 350 – 700 mm
Max Diameter of Fabric: 1200 mm
Max Diameter of Liner Roll: 500 mm
PE Film Width: +20 mm (PE Film Width Bigger)
PE Film Thickness: 20 – 80 Microns
Bottom Folding: 19 or 25 mm (Any One)
Cutting Length of Fabrics: 600 – 1200 mm
Cutting Accuracy: +/- 1.5 mm
Stitch Range: 7 – 12 mm
Production Speed: 30 – 35 Pcs/Min
Liner Longer than Outer Bag: 30 – 100 mm
Power Supply: 3 Phase
Total Power: 33 KW
Air Pressure Consumption (MPa) 1.2 MPa
Machine Dimensions (L*W*H): 7300 x 6400 x 1790mm
