Introducing the advanced Seeds Packing Machine, a VFFS (Vertical Form Fill Seal) system designed to optimize the packing process for seeds with unmatched precision and efficiency. This innovative machine combines a multi-head weigher for accurate weighing and a user-friendly interface for seamless operation. Manufactured in India, this machine boasts a collar roll width range from 170 to 530 mm (up to 650 mm in our 6At model) and features pouch lengths between 75 mm and 330 mm (up to 430 mm in our 6AT model). With speeds reaching up to 70 pouches per minute, it’s the perfect solution for businesses looking to automate their seed packaging processes while ensuring top-notch quality and accuracy. Integrated with state-of-the-art technology like DELTA HMI, this machine allows for efficient control of process parameters with ease. The robust construction, featuring stainless steel 304 and 316, ensures longevity and reliability while maintaining the highest hygiene standards required for food and seed products.
Key Features
| Features | Description |
|---|---|
| Pouch Forming Type | Collar Roll |
| Pouch Dimensions | Width: 170-530 mm (650mm in 6At model), Length: 75-330 mm (430mm in 6AT model) |
| Speed | Up to 70 pouches per minute |
| Control System | Microcontroller with DELTA HMI for user-friendly operation |
| Sealing Mechanism | Servo motor driven for horizontal and pneumatic for vertical sealing |
| Material Construction | SS/ GI powder coated Frame, all contact parts in SS 304/316 |
| Multi-Head Weigher | Available in 10 head and 14 head configurations |
| Max Capacity of Weigher | 5gms - 2.5kg with accuracy from 0.1 to 1.5 gms |
| Power Supply | 1 phase, 230 VAC, 2 Kw |
| Air Supply | 2 HP, 8 bar pressure, 2 CFM |
| Attributes | Description |
|---|---|
| Machine Type | VFFS Seed Packing Machine |
| Max Capacity of 10 Head Weigher | 55 drops per minute |
| Max Capacity of 14 Head Weigher | 95 drops per minute |
| HMI Display | 7-inch DELTA touch screen |
| Bucket Opening Mechanism | Single lid opening with stepper motor drive |
| Power Requirement | 2 Kw, Single Phase |
| Film Draw Mechanism | Servo motor driven |
| Accuracy | 0.1 – 1.5 gms |
| Maximum Speed of Multi-Head Weigher | 40-85 pouches per minute |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Seeds Packing Machine is designed to handle granular, fluffy, irregular shaped, and solid seeds efficiently.
The 14 head weigher can achieve a maximum speed of 95 drops per minute.
Yes, the machine allows for adjustable pouch sizes, ranging from 75 mm to 330 mm in length, with various widths up to 650 mm.
The machine is equipped with a DELTA HMI that allows users to set process parameters easily through a user-friendly touchscreen interface.
Yes, all contact parts of the machine are made from stainless steel 304/316, ensuring compliance with food safety standards.
Brand: kfore
Country Of Origin: India
VFFS – Multi-Head Weigher / Linear weigher:
This seed packing machine is a VFFS machine, integrated with multi-head weigher which is completely designed and manufactured in India.
Pouch Forming type: Collar
Roll width (mm): 170 to 530 mm ( up to 650 mm in our 6At model))
Pouch length (mm): 75mm to 330mm ( up to 430 mm in our 6AT model)
Speed (PPM): 70 Max *
Power supply: 1 phase,230 VAC, 2 Kw
Air supply: 2 HP, 8 bar pressure, 2CFM
Serration and cutting: Count cutting provided, count, to be fed through HMI
Control of FFS: Through micro controller , DELTA make HMI
Eye mark controller: provided
Process parameter setting: Through HMI
Film draw mechanism: Servo motor driven
Horizontal sealing mechanism: Servo motor driven
Vertical seal mechanism: Pneumatic
Material of construction: SS / GI powder coated Frame/ All contact parts essentially in SS 304/316.

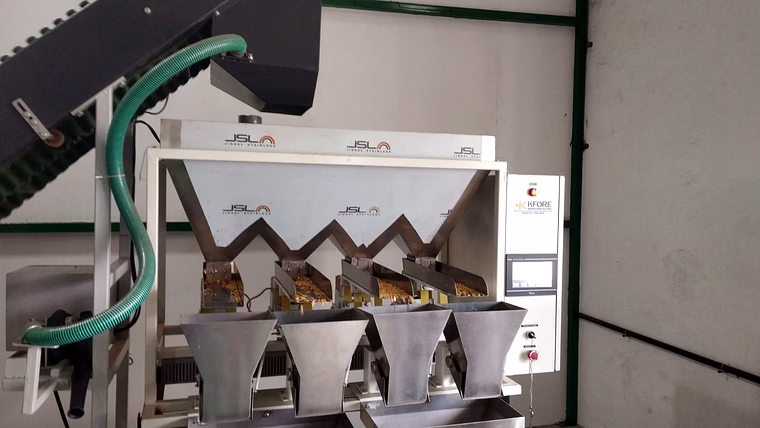

Typical Specifications of MULTI HEAD WEIGHER : 10 head & 14 Head Seed Packing Machine:
Materials : Granular, Fluffy, Irregular shaped, Solids
Max Capacity : 5gms- 2.5kg
Accuracy : 0.1 – 1.5 gms*
Max Speed: 40-85 pouches per minutes*
Material of Construction : All contact parts are in SS 304
Power Requirement: 2 Kw , Single Phase
No of Heads : 10 or 14
Speed : 55 drops per minute max. For 10 head weigher and 95 drops per minute max. For 14 head weigher
HMI : DELTA make 7” touch screen display
Bucket Opening Mechanism : Single lid opening through Stepper motor drive. ( No Auxiliary Air supply is required in stand-alone mode)
