The RUBBER HORSE STABLE MATS / COW MATS are heavy-duty, high-quality natural rubber mats designed for animal stall applications such as horse stables and cow sheds. Manufactured using advanced compression moulding techniques, these mats offer excellent durability and comfort, helping to protect livestock from hard flooring while providing slip resistance and cushioning. Available in multiple thicknesses (12mm, 18mm, up to 25mm) and a standard size of 1.83m x 1.22m (6ft x 4ft), these stable mats feature a variety of top surface finishes including Amoebic, Solid Top, HammerTop, BubbleTop, and DiamondTop to enhance grip and comfort. Bottom surfaces vary between grooved and honeycomb designs depending on thickness, allowing better drainage and increased friction with the stable floor. The mats come with different edge types—non-interlocking with straight edges, two-side interlocking, and four-side interlocking—for flexible installation. With a tensile strength of 3.5 to 4 Mpa and elongation around 250%, this rubber compound (natural rubber mixed with SBR) ensures long-lasting resilience under heavy usage and temperature ranges from -20°C to +50°C. These stable mats weigh between 27kg to 42kg depending on thickness and provide abrasion resistance of 400 mm3 loss as per IS 3400 standards. Their robust design enhances animal comfort, reducers injury risk, and lowers maintenance efforts in livestock environments.
Key Features
| Features | Description |
|---|---|
| Material | Natural Rubber (NR/SBR Blend) |
| Standard Size | 1.83m x 1.22m (6ft x 4ft) |
| Available Thickness | 12mm, 18mm, 25mm (custom range 10mm to 25mm) |

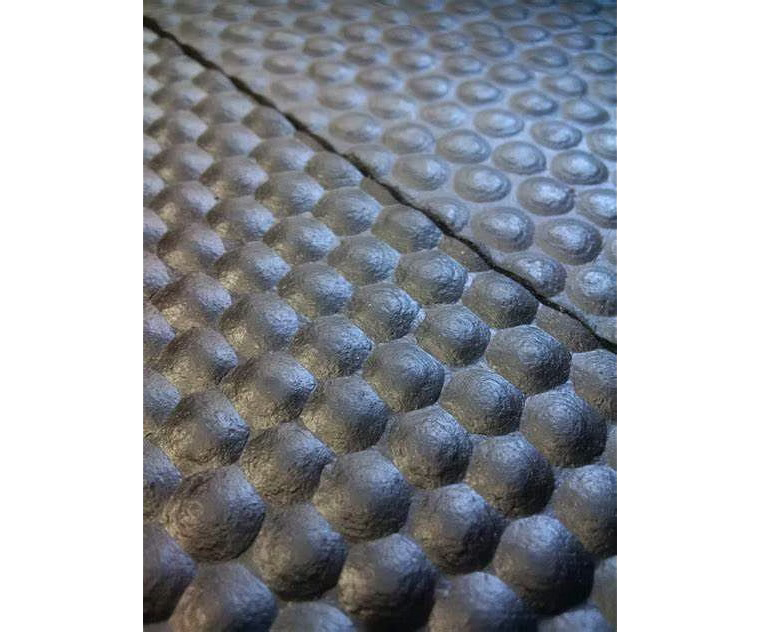

| Top Surface Finish | Amoebic, Solid Top, HammerTop, BubbleTop, DiamondTop |
| Bottom Surface Type | Grooved bottom (10-20mm thickness), Honeycomb hollow bottom (>20mm thickness) |
| Edge Options | Straight edge (non-interlocking), 2-side interlocking, 4-side interlocking |
| Tensile Strength | 3.5 to 4 MPa (IS 3400 Part 1-2012) |
| Elongation | Approximately 164% to 250% |
| Operating Temperature Range | -20°C to +50°C |
| Abrasion Resistance | 400 mm³ loss (IS 3400 Part 3-2003 Method A) |
| Manufacturing Process | Compression Moulding |
| Weight Range | 27kg to 42kg depending on mat thickness |
| Attributes | Description |
|---|---|
| Length | 6 feet (1.83 meters) |
| Breadth | 4 feet (1.22 meters) |
| Thickness Options | 12mm, 18mm, 25mm (custom 10-25mm) |
| Weight Range | 27-29 kg for 12mm, 36-38 kg for 18mm, 40-42 kg for 25mm |
| Top Design | Amoebic, Hammer, Bubble, Solid, Diamond |
| Bottom Design | Grooves (for 10-20mm), Honey Comb (above 20mm) |
| Edge Types | Non-interlocking straight edge, 2-side interlocking, 4-side interlocking |
| Base Polymer | Natural Rubber (NR) with Styrene Butadiene Rubber (SBR) |
| Hardness | Shore A 65 (+/-10) |
| Tensile Strength | 3 (+/-1) MPa |
| Elongation | 164% |
| Abrasion Resistance | 400 (+/-50) cubic millimeters |
| Operating Temperature | -20°C to +50°C |
| Manufacturing Method | Compression Moulding |
| Interlocking Options | Straight Edge, 2 Side Interlocking, 4 Side Interlocking |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The rubber horse and cow stable mats can be manufactured in thicknesses ranging from 10mm up to 25mm, allowing customization based on the specific requirements for livestock comfort and durability.
Yes, these mats are available with non-interlocking straight edges, two-side interlocking, and four-side interlocking edges, enabling flexible installation options tailored to stall layouts.
They are designed to operate effectively in temperatures ranging from -20°C to +50°C, making them suitable for various climatic conditions in stables and barns.
The bottom surface features grooves for mats between 10mm and 20mm thickness to improve grip and drainage, whereas mats above 20mm thickness use a hollow honeycomb pattern for enhanced cushioning and floor adhesion.
Yes, the mats have excellent abrasion resistance with a DIN abrasion loss of around 400 cubic millimeters, ensuring longevity under continuous heavy use.
Top surfaces such as Amoebic, Hammer, Bubble, and Diamond finishes provide anti-slip properties, reducing the risk of livestock slipping and injuries within the stable.
A regular gym mat is a versatile piece of equipment commonly used in fitness facilities, homes, and various exercise settings. These mats come in different sizes, thicknesses, and materials to cater to different workout needs and preferences.
RUBBER HORSE / COW/ STALL MATS
Material : Natural rubber
Surface Finish :Amoebic/Solid Top, HammerTop,BubbleTop , DiamondTop.
Product Height : 25,18,12 mm
Min. Operating
Temperature : -20°C
Max. Operating
Temperature : +50°C
Tensile Strength:3.5 to 4Mpa
Elongation : 250%
Manufacturing process: Compression moulding
Available Size: 1.83m x 1.22m(6FT x 4FT)
Available Thickness: 12mm, 18mm
Note*We can produce any thickness of this size starting from 10mm to 25mm
Available edges: Non- interlocking with straight edges, Two side interlocking and four-side interlocking.
BOTTOM TYPE: between 10mm to 20mm - GROVED BOTTOM and above 20mm HOLOW BOTTOM.
SIZE THICKNESS
(MM) WEIGHT
(KGS) 20ft qty
(NOS) PRICE
(USD) 40ft qty
(NOS) PRICE
(USD) 40ft HC qty(NOS) PRICE
(USD)
1.83m x 1.22m
(6FT x 4FT) 12MM 27-29 700 17.5 950 17.7 950 17.75
1.83m x 1.22m
(6FT x 4FT) 18MM
36-38 500 21.75 700 21.85 700 21.85
1.83m x 1.22m
(6FT x 4FT) 25MM 40-42 340 26.5 600 26.75 600 26.75
Technical Data Sheet
Item 1: Stable Mat/Cow Mat
Image: Straight Edge 6*4feet Stable Mat.
Physical Properties
SL.NO Properties Unit Measurement
1 Length Feet 6
2 Breadth Feet 4
3 Thickness Millimetre 17
4 Weight Kilogram 37(+/- 1kg)
5 Top Design Amoebic, Hammer, Bubble
6 Bottom Design Grooves
7 Interlocking Straight Edge.
Compound Properties
SL.No Properties Test Method Unit Specification
1 Base Polymer NR/SBR
2 Hardness ASTM D2240 Shore A 65 (+/-10)
3 Tensile Strength IS 3400 Part 1-2012 Mpa 3(+/-1)
4 Elongation IS 3400 Part 1-2012 % 164
5 DIN Abrasion
loss IS 3400 – Part 3 –
2003 Method A Cubic.millimeter 400 (+/-50)
Technical Data Sheet
Item 2: Stable Mat/Cow Mat
Image: 2 Side Interlocking 6*4feet Stable Mat.
Physical Properties
SL.NO Properties Unit Measurement
1 Length Feet 6
2 Breadth Feet 4
3 Thickness Millimetre 17
4 Weight Kilogram 38(+/- 1kg)
5 Top Design Amoebic, Hammer, Bubble
6 Bottom Design Grooves
7 Interlocking Two Side Interlocking
Compound Properties
SL.No Properties Test Method Unit Specification
1 Base Polymer NR/SBR
2 Hardness ASTM D2240 Shore A 65 (+/-10)
3 Tensile Strength IS 3400 Part 1-2012 Mpa 3(+/-1)
4 Elongation IS 3400 Part 1-2012 % 164
5 DIN Abrasion
loss IS 3400 – Part 3 –
2003 Method A Cubic.millimeter 400 (+/-50)
Technical Data Sheet
Item 3: Stable Mat/Cow Mat
Image: 4 Side Interlocking 6*4feet Stable Mat.
Physical Properties
SL.NO Properties Unit Measurement
1 Length Feet 6
2 Breadth Feet 4
3 Thickness Millimetre 17
4 Weight Kilogram 40(+/- 1kg)
5 Top Design Amoebic, Hammer, Bubble
6 Bottom Design Grooves
7 Interlocking 4 Side Interlocking
Compound Properties
SL.No Properties Test Method Unit Specification
1 Base Polymer NR/SBR
2 Hardness ASTM D2240 Shore A 65 (+/-10)
3 Tensile Strength IS 3400 Part 1-2012 Mpa 3(+/-1)
4 Elongation IS 3400 Part 1-2012 % 164
5 DIN Abrasion
loss IS 3400 – Part 3 –
2003 Method A Cubic.millimeter 400 (+/-50)
Technical Data Sheet
Item 4: Stable Mat/Cow Mat
Image: 2 side Interlock 6*4feet Cow Mat.
Physical Properties
SL.NO Properties Unit Measurement
1 Length Feet 6
2 Breadth Feet 4
3 Thickness Millimetre 23
4 Weight Kilogram 40(+/- 1kg)
5 Top Design Hammer
6 Bottom Design Honey Comb
7 Interlocking 2 Side Interlocking
Compound Properties
SL.No Properties Test Method Unit Specification
1 Base Polymer NR/SBR
2 Hardness ASTM D2240 Shore A 65 (+/-10)
3 Tensile Strength IS 3400 Part 1-2012 Mpa 3(+/-1)
4 Elongation IS 3400 Part 1-2012 % 164
5 DIN Abrasion
loss IS 3400 – Part 3 –
2003 Method A Cubic.millimeter 400 (+/-50)
