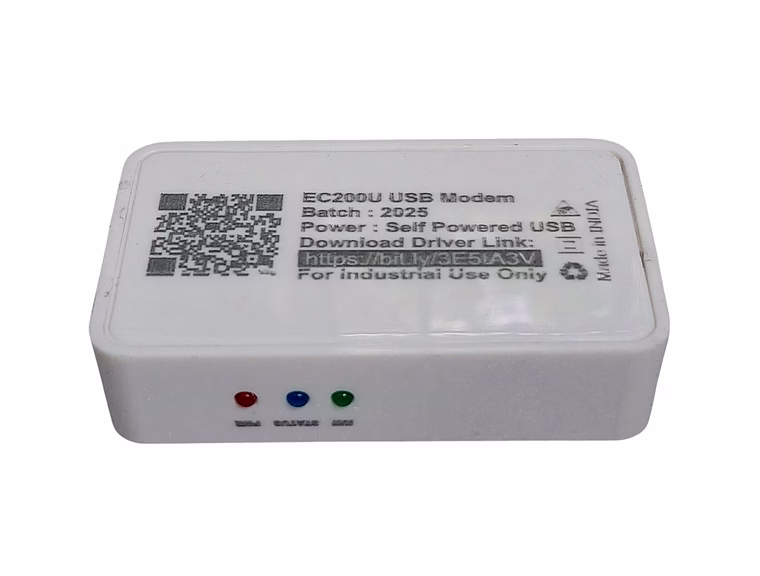

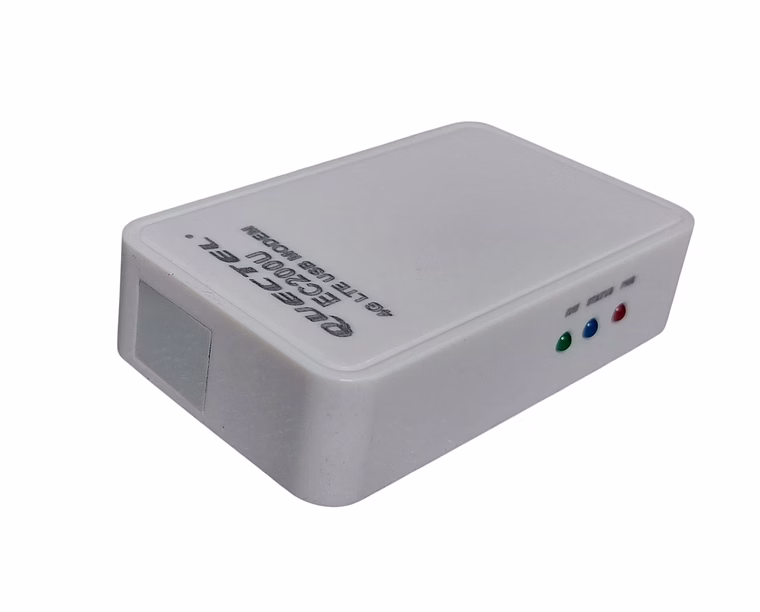

The Quectel EC200U 4G LTE USB Modem is an advanced, cost-effective solution designed specifically for Raspberry Pi and Industrial IoT applications. This modem serves as a self-powered USB device that ensures seamless connectivity with exceptional data speeds. Boasting compatibility with various operating systems including Windows, Linux, Android, and Raspberry Pi, the EC200U modem integrates effortlessly into existing systems, making it a versatile choice for industrial use. The device features a compact design that is perfect for environments with limited space while providing a robust operating temperature range. With built-in MIMO functionality and support for LTE-FDD, LTE-TDD, and GSM/GPRS networks, the EC200U offers reliable performance and voice functionality tailored to your specific application needs. Additional features include easy USB connectivity, LED indicators for monitoring network status, integrated GL Maxgain 4G antenna for enhanced signal strength, and a handy SIM card holder for straightforward installation. This modem is ideally suited for any IoT solution requiring rapid and stable data transfer capabilities with minimal overhead.
Key Features
| Features | Description |
|---|---|
| Operating Systems Compatibility | Compatible with Windows, Linux, Android, and Raspberry Pi |
| Network Support | Supports LTE-FDD, LTE-TDD, GSM/GPRS |
| Data Speed | Max 10 Mbps (DL), Max 5 Mbps (UL) on FDD; Max 8.96 Mbps (DL), Max 3.1 Mbps (UL) on TDD |
| Compact Design | Small form factor ideal for industrial applications with limited space |
| Built-in Antenna | Inbuilt GL Maxgain 4G antenna for improved signal reception |
| USB Connectivity | Ease of interfacing via USB 2.0 with speeds up to 480 Mbps |
| LED Indicators | Three LED indicators for network status, modem power, and connection status |
| Temperature Range | Extended operating temperature range suitable for industrial conditions |
| SIM card holder | Conveniently placed near USB port for easy access |
| Protocols Supported | Supports TCP/IP, FTP, HTTP, MQTT, and more |
| Attributes | Description |
|---|---|
| LTE Support | Cat 1 FDD and TDD |
| RF Bandwidth | Support 1.4/3/5/10/15/20 MHz |
| MIMO Support | Supported in DL direction |
| GPRS Multi-Slot Class | Supports multi-slot class 12 |
| Maximum Download Speed | FDD: Max 10 Mbps, TDD: Max 8.96 Mbps |
| Maximum Upload Speed | FDD: Max 5 Mbps, TDD: Max 3.1 Mbps |
| USB Standard | USB 2.0 with high speed up to 480 Mbps |
| Driver Availability | Drivers available for multiple OS: Windows XP to 10, Linux 2.6/3.x/4.1, Android 4.x to 6.0 |
| Package Contents | EC200 4G LTE TTL modem with Micro USB cable |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The EC200U is ideal for Industrial IoT applications that require reliable and high-speed connectivity in compact spaces.
Yes, the EC200U supports voice functionality for specialized applications.
Yes, the modem is equipped with three LED indicators to provide real-time status updates.
Yes, drivers must be installed depending on the operating system for optimal functioning.
The modem is powered via a 5V USB connection.
Country Of Origin: India
Quectel EC200U 4G LTE USB Modem is an industrial-grade communication module designed for Raspberry Pi and IoT applications. Supporting LTE Cat 1 (FDD/TDD), GSM/GPRS, and a wide range of protocols, it enables high-speed data and SMS communication across various operating systems. With a self-powered USB 2.0 interface, built-in antenna, and compact form factor, it is ideal for embedded and space-constrained environments requiring reliable mobile connectivity.
