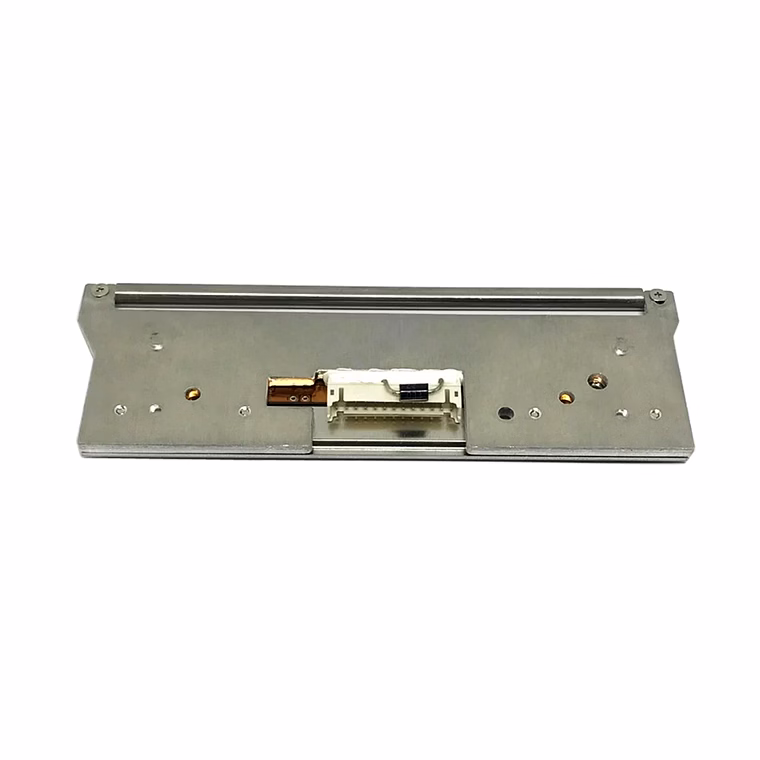

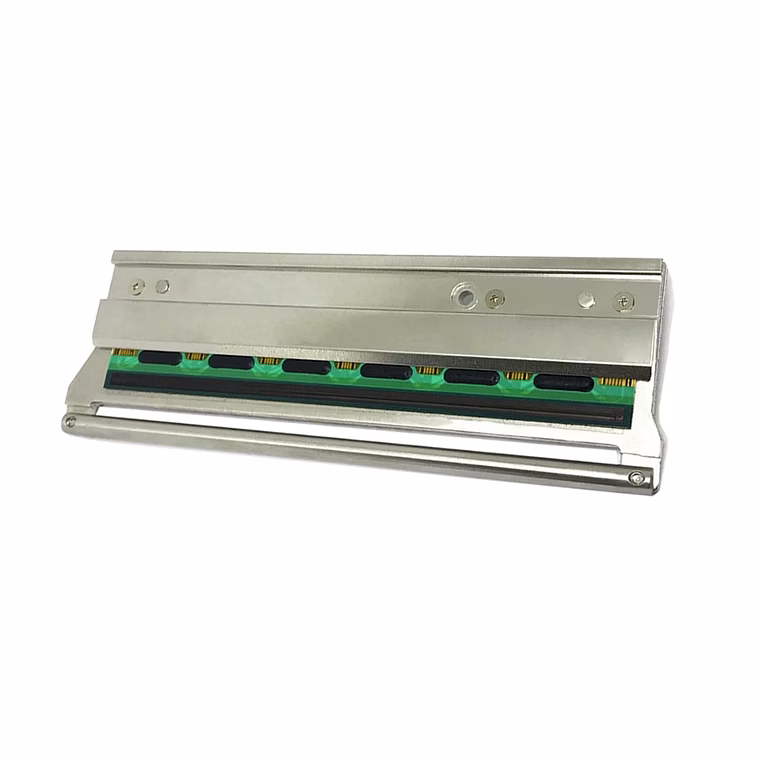

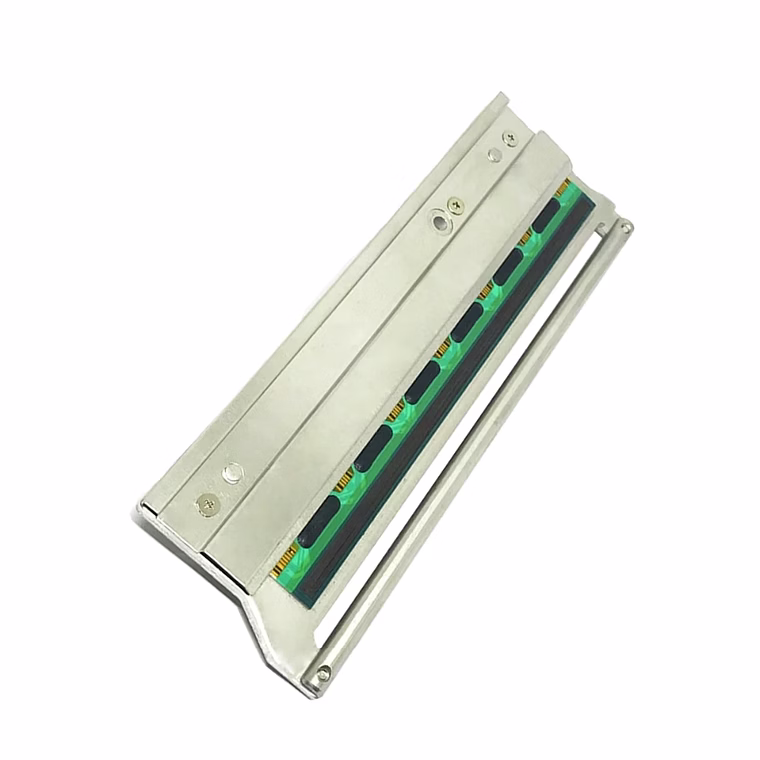

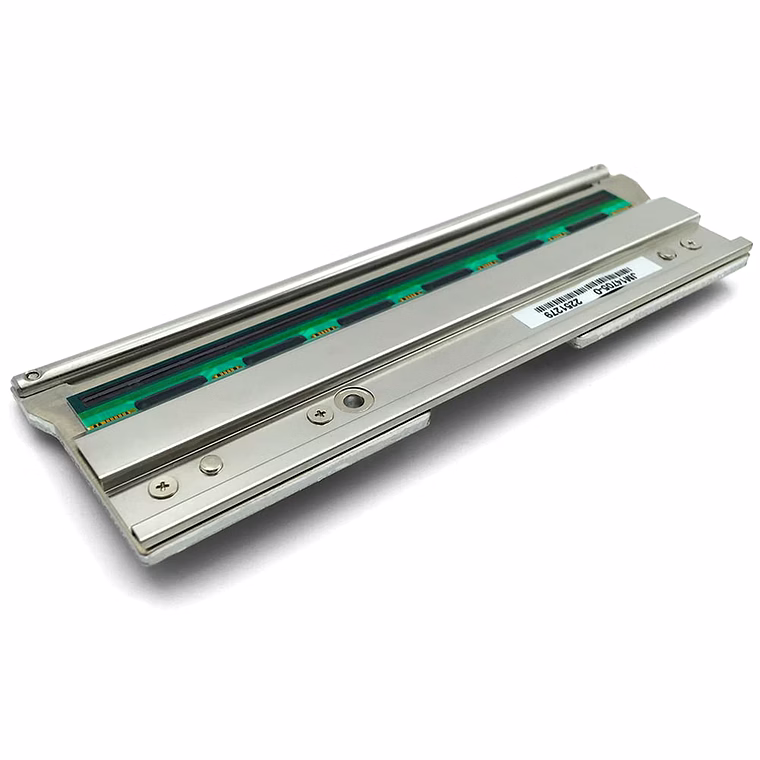

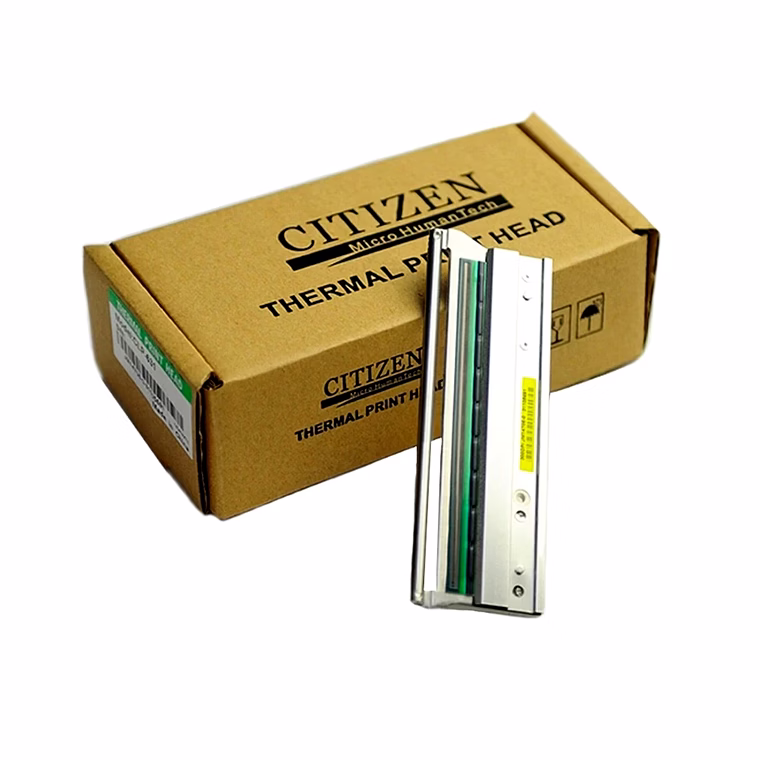

The Citizen CLS621 Thermal Print Head is designed specifically for the Citizen CL-S621 Barcode Printer. With a resolution of 203 dpi, this print head supports both thermal transfer and direct thermal printing methods, providing versatility for various printing needs. The print head features state-of-the-art technology including a Hi-Lift™ mechanism for easier ribbon and media loading and an integrated internal power supply for enhanced reliability. The self-contained, durable metal mechanism ensures lasting operation while the Cross-Emulation™ automatic language detection allows seamless printing capabilities with Zebra® and Datamax® emulation support. With a robust design that minimizes ribbon changes thanks to a 360-meter ribbon capacity, this print head is ideal for high-volume printing environments. The ARCP™ ribbon anti-wrinkle and automatic tensioning system guarantees smooth operation and high-quality print outputs, making the CLS621 an excellent choice for any business looking to enhance their printing efficiency.
Key Features
| Features | Description |
|---|---|
| Resolution | 203 dpi (8 dots per mm) |
| Printing Method | Thermal Transfer / Direct Thermal |
| Part Code | TPH621-203DI |
| Condition | New Sealed |
| Hi-Lift™ Mechanism | Easy ribbon and media loading |
| Internal Power Supply | Reliable operation |
| Cross-Emulation™ Technology | Automatic language detection for seamless compatibility |
| Print Speed | Up to 6 inches per second (150mm/s) |
| Maximum Media Width | 4.10 inches (104.1mm) |
| Warranty | 2 Years or 30Kms/6 months |
| Attributes | Description |
|---|---|
| Print Width (Maximum) | 4.10 inches (104.1mm) |
| Media Width (Min - Max) | 0.50 inches to 4.65 inches (12.5mm to 118.1mm) |
| Media Thickness (Min - Max) | 0.0025 - 0.01 inches (0.0635mm - 0.254mm) |
| Media Length (Min - Max) | 0.25 inches to 64.00 inches (6.35mm to 1625.6mm) |
| Roll Size (Max) | Internally 5 inches (125mm) diameter; Externally 8 inches with optional holder |
| Core Size | 1 inch (25mm) |
| Ribbon Size | Maximum diameter of 2.9 inches (74mm), 360-meter length |
| Standard Interfaces | Serial (RS-232C), USB (version 1.1) |
| Optional Interfaces | Parallel (IEEE-1284), Ethernet (10/100BaseT), Wireless LAN (802.11b/g/n) |
| Size (WxDxH) | 231 x 289 x 183 mm |
| Weight | 3.6 Kgs |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Citizen CLS621 Thermal Print Head is specifically designed for use with the Citizen CL-S621 barcode printer.
The maximum print speed of the CLS621 print head is up to 6 inches per second (150mm/s).
Yes, the product comes with a 2-year warranty or 30Kms/6 months on the print head.
The print head measures 231 x 289 x 183 mm and weighs 3.6 Kgs.
The print head supports Datamax® I-Class™ & DMX400™, and Zebra® ZPL-II® through its Cross-Emulation™ automatic detection feature.
Brand: citizen
Country Of Origin: China
PRINTER HEAD FOR CITIZEN CLS621 is a robust barcode printer designed for commercial, retail, and warehouse environments. Engineered for efficiency and accuracy, it offers consistent performance and easy integration.
