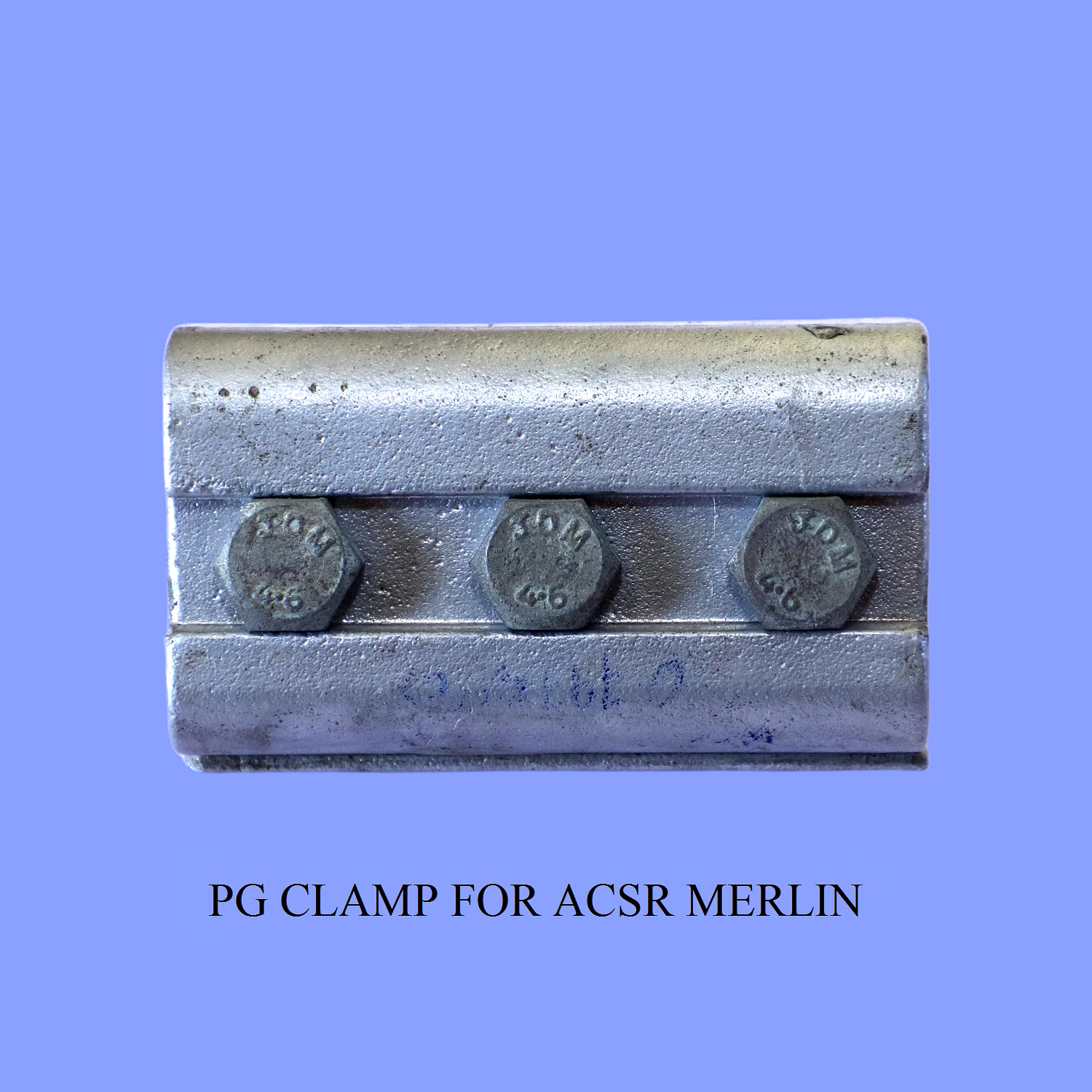

The PG Clamp for ACSR Merlin is a specialized connector designed to securely fasten ACSR Merlin conductors in overhead power transmission and distribution systems. Engineered for durability and reliable mechanical and electrical performance, this clamp ensures efficient conductor retention while minimizing installation time. Suitable for various ACSR Merlin conductor sizes, the PG Clamp provides optimal grip and corrosion resistance, making it ideal for use in diverse environmental conditions. Its robust construction enhances the safety and stability of high-tension power lines, ensuring long-term operational reliability for utility companies and electrical contractors.
Key Features
| Features | Description |
|---|---|
| Compatibility | Designed specifically for ACSR Merlin conductors |
| Material | High-grade corrosion-resistant alloy |
| Application | Used in overhead power transmission and distribution |
| Grip Strength | Provides secure retention of conductors to prevent slippage |
| Installation | Easy and quick to install with minimal tools required |
| Weather Resistance | Resistant to moisture, UV, and temperature variations |
| Durability | Engineered for long-term mechanical stability |
| Safety | Ensures electrical continuity and safety in power systems |
| Attributes | Description |
|---|---|
| Suitable Conductor Type | ACSR Merlin |
| Clamp Type | PG Clamp |
| Material Composition | Aluminum alloy with anti-corrosive coating |
| Surface Treatment | Galvanized or anodized finish |
| Operating Temperature Range | -40°C to +85°C |
| Standard Compliance | Meets IEC and IS standards for overhead line fittings |
| Installation Method | Bolted connection with precision torque requirements |
| Dimensions | Varies according to conductor size, customizable |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The PG Clamp is designed to be compatible with various sizes of ACSR Merlin conductors, with specific clamp dimensions customizable to ensure a secure fit.
The clamp is manufactured from high-grade aluminum alloy featuring anti-corrosive coatings like galvanization or anodization for enhanced durability.
Yes, the PG Clamp is engineered to resist moisture, UV radiation, and temperature fluctuations, making it suitable for diverse weather conditions.
It meets relevant IEC and Indian Standards (IS) for overhead line fittings, ensuring safety and reliability in power transmission applications.
The clamp features a bolted connection system designed for quick installation with minimal tools and specific torque requirements to ensure a secure fit.
Country Of Origin: India
All Type PG clamp we are available
