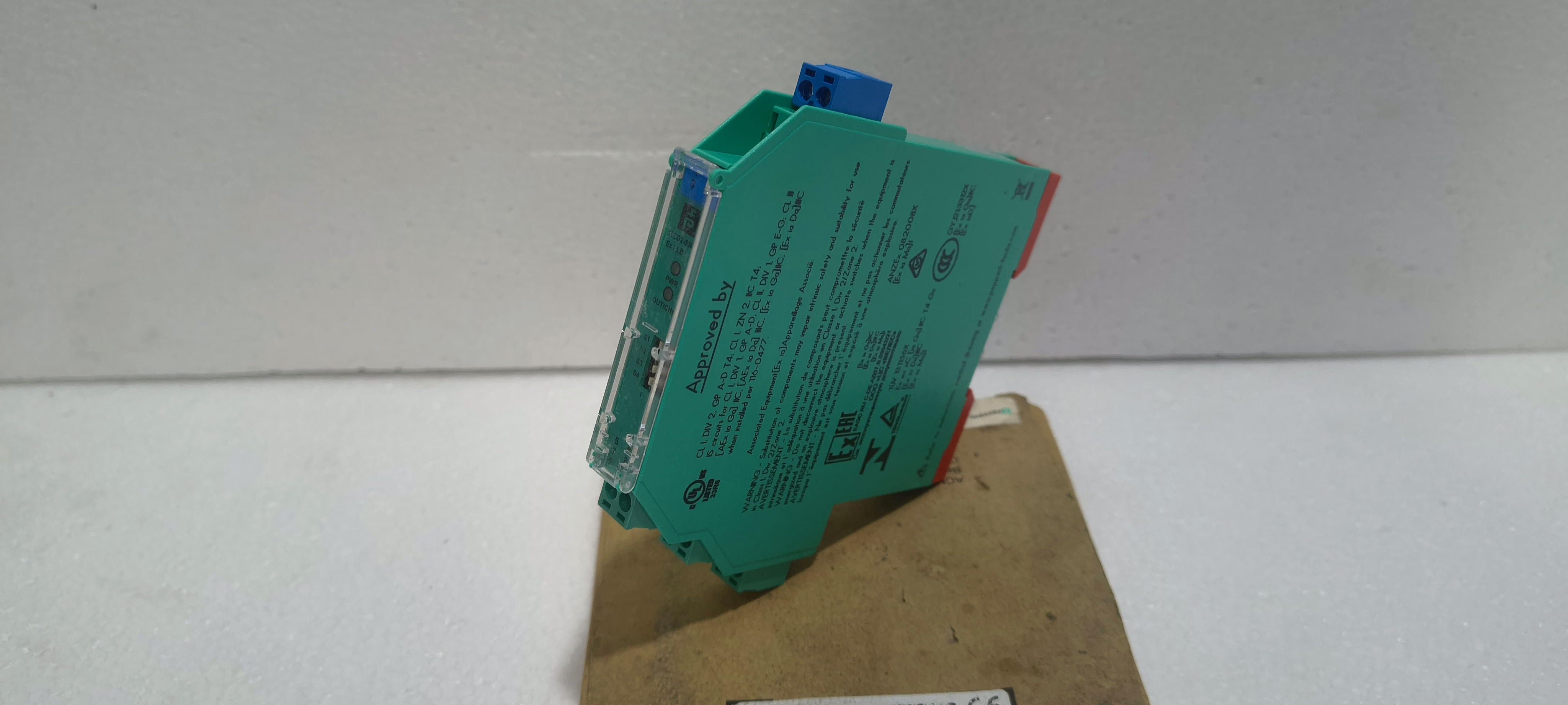

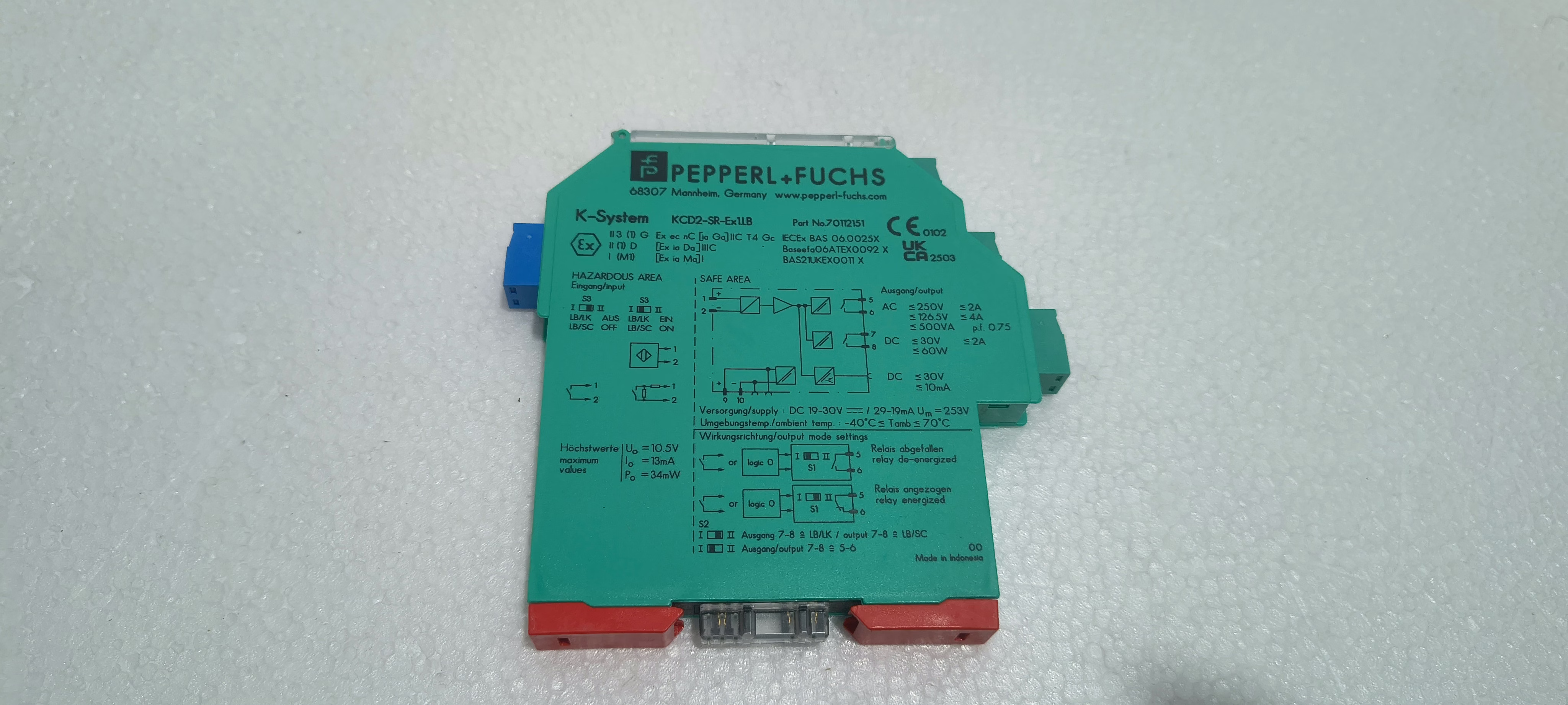

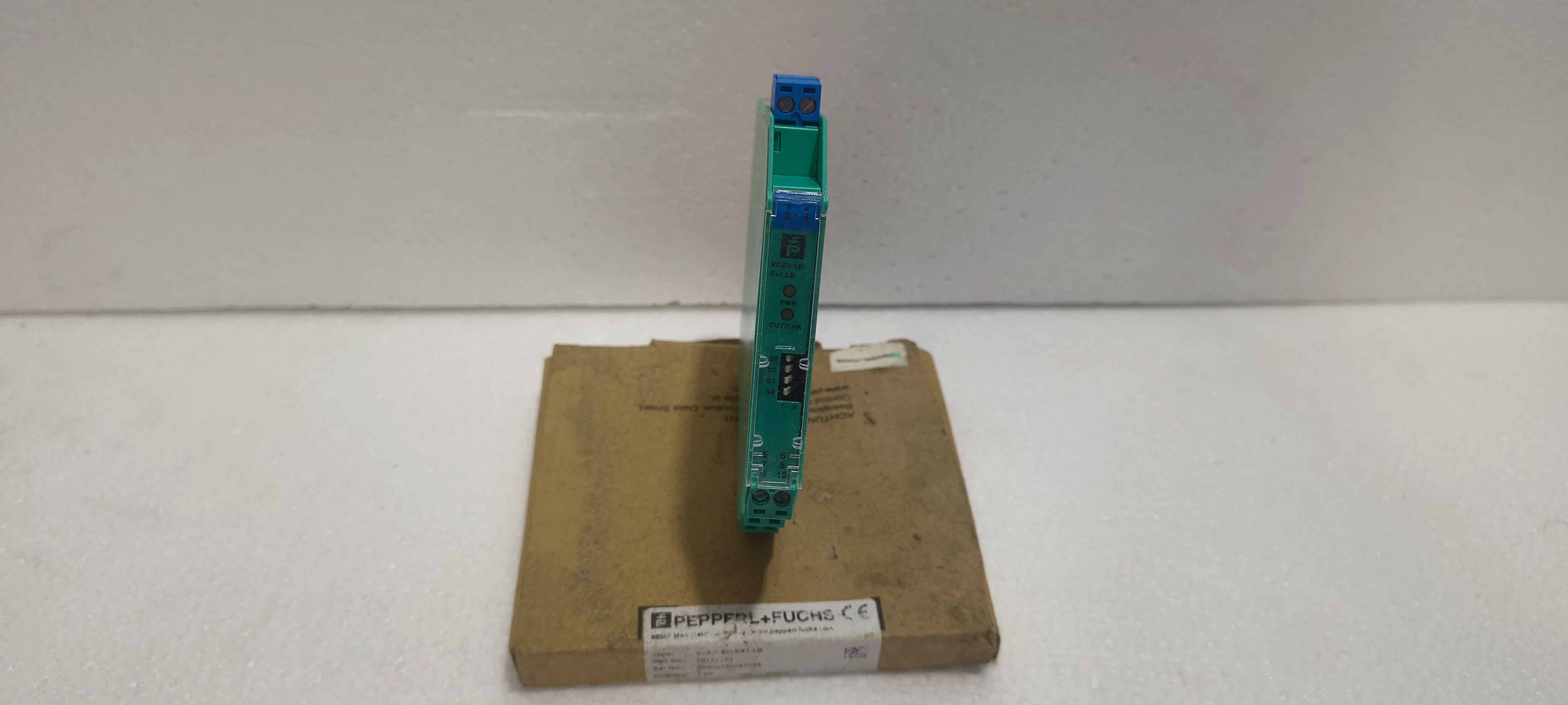

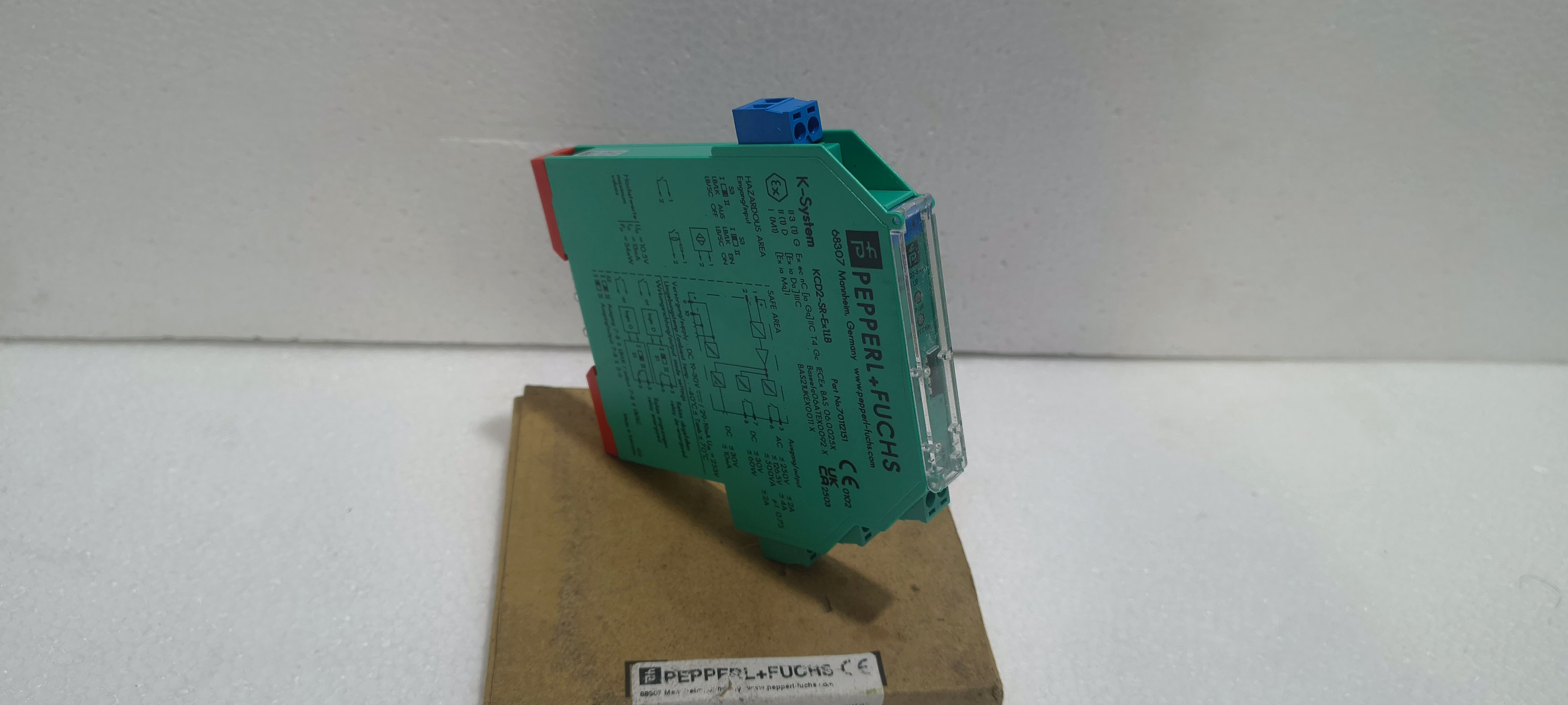

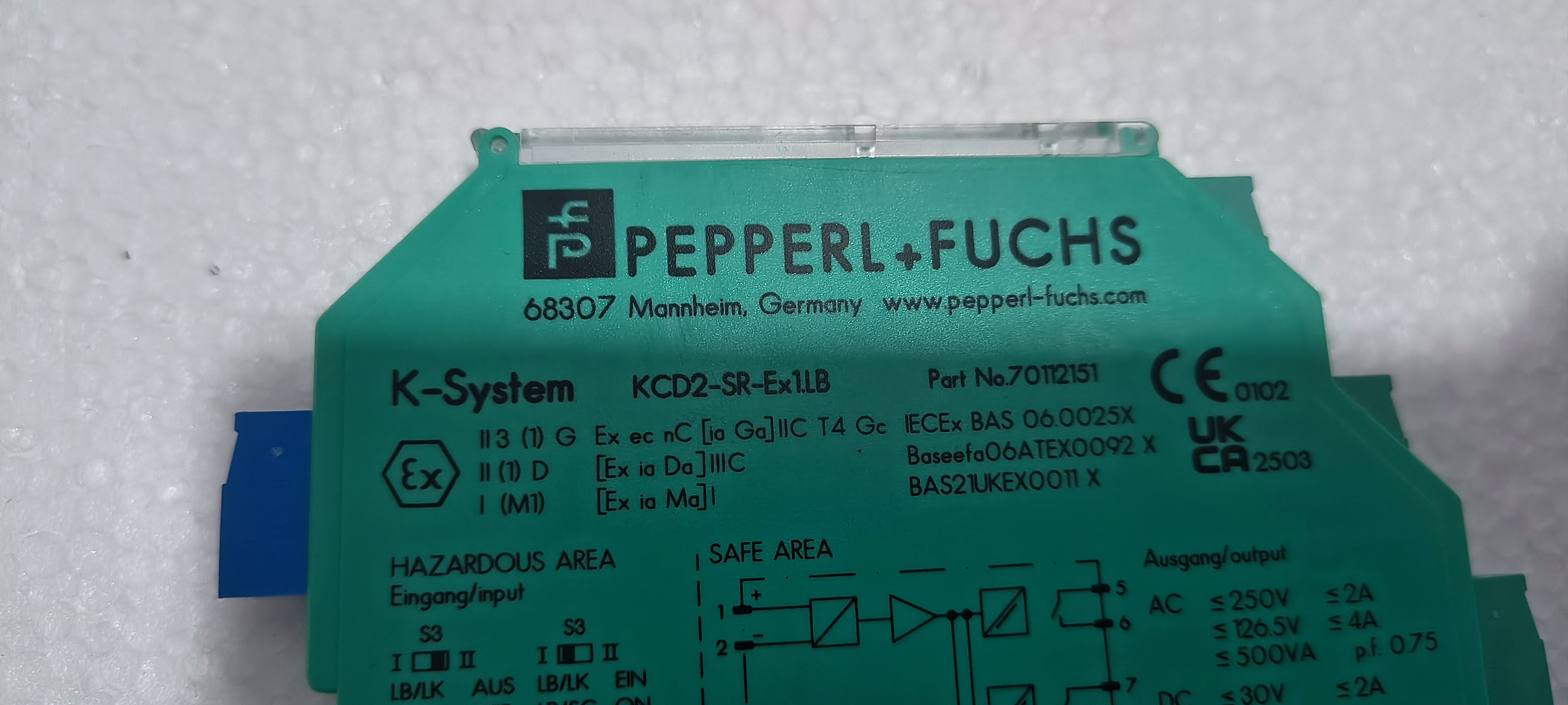

Pepperl+Fuchs KCD2-SR-EX1.LB Switch Amplifier Part No. 70112151 is a 1-channel isolated switch amplifier designed for safe signal transmission between hazardous-area field devices and safe-area control equipment. It is used in industrial automation systems where NAMUR sensors or dry contact inputs must be conditioned, isolated, and converted into a reliable relay contact output for PLC, DCS, and safety loop integration. This industrial grade module features line fault detection for open or shorted field wiring, helping maintenance teams identify signal issues quickly and improve system reliability. Its signal splitter functionality allows one input to drive two outputs, making it useful in applications that require signal duplication without compromising electrical isolation. The unit is SIL 2 capable according to IEC 61508, which makes it suitable for safety-related instrumentation and intrinsically safe interface applications. The KCD2-SR-EX1.LB is built in a slim 12.5 mm DIN-rail mount housing, supporting efficient panel design where space is limited. It operates from a 24 V DC power supply with a 19…30 V DC range and supports switching frequencies up to 10 Hz. The relay output is suitable for AC/DC loads, with a typical 2 A rating depending on voltage, providing dependable switching performance for control circuits. With a wide operating temperature range of –40°C to +70°C and IP20 housing protection, this module is suitable for harsh industrial environments. Common applications include monitoring valve positions, switches, proximity sensors, and other hazardous-area field signals in process automation and safety systems. For wholesale, bulk order, OEM, and factory direct sourcing, this Pepperl+Fuchs switch amplifier is export-ready and available with a minimum order quantity of 1 unit. It is a practical procurement choice for electrical distribution, automation integrators, and maintenance teams seeking a trusted isolated barrier for industrial signal interfacing.
Key Features
| Features | Description |
|---|---|
| Product Type | 1-channel switch amplifier / isolated barrier |
| Input Type | NAMUR sensor / dry contact |
| Output Type | Relay contacts |
| Safety Rating | SIL 2 capable according to IEC 61508 |
| Fault Detection | Line fault detection for open or shorted wiring |
| Signal Splitter | One input can drive two outputs |
| Mounting | 35 mm DIN rail |
| Housing Width | 12.5 mm slim housing |
| Operating Temperature | –40°C to +70°C |
| Protection | IP20 housing |
| Attributes | Description |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | KCD2-SR-EX1.LB |
| Part Number | 70112151 |
| Channels | 1-channel |
| Function | Switch amplifier / isolated barrier |
| Input | NAMUR sensor / dry contact |
| Output | Relay contacts |
| Power Supply | 24 V DC |
| Operating Voltage Range | 19…30 V DC |
| Switching Frequency | Up to 10 Hz |
| Relay Rating | AC/DC loads, typical 2 A depending on voltage |
| Operating Temperature | –40°C to +70°C |
| Mounting | 35 mm DIN rail |
| Housing Width | 12.5 mm |
| Protection Degree | IP20 |
| Safety Standard | IEC 61508 |
| Safety Integrity Level | SIL 2 |
| Functionality | Signal splitter (1 input to 2 outputs) |
| Application | Hazardous-area signal isolation and process automation |
| MOQ | 1 Unit |
| Store Name | VOLTEDGE TRADE |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It accepts NAMUR sensor inputs and dry contact inputs, making it suitable for hazardous-area field devices and simple switching contacts.
Yes, it is SIL 2 capable according to IEC 61508, so it can be used in safety loops and other safety-related industrial automation applications.
The unit uses a 24 V DC power supply and operates within a 19…30 V DC range.
Yes, it is designed for 35 mm DIN rail mounting and has a slim 12.5 mm housing width for space-saving panel installation.
Yes, it is an isolated barrier and provides high electrical isolation between input, output, and power supply.
It provides relay contact output suitable for safe-area control systems, including PLC and DCS inputs.
It operates from –40°C to +70°C, which supports use in harsh industrial environments.
The MOQ is 1 unit, making it available for single-unit procurement as well as bulk order sourcing.
Brand: pepperl fuchs
Country Of Origin: Indonesia
Pepperl+Fuchs KCD2-SR-EX1.LB Switch Amplifier
Part No: 70112151
Description:
Pepperl+Fuchs KCD2-SR-EX1.LB is a high-quality 1-channel switch amplifier / isolated barrier designed for safe signal transmission between hazardous-area field devices and safe-area control equipment. This module conditions and isolates signals from NAMUR sensors or dry contacts, providing reliable relay output for industrial automation and safety applications.
Key Features
1-channel isolated switch amplifier
Suitable for NAMUR sensors or dry contact inputs
Provides relay contact output for safe-area control systems
Line fault detection for open or shorted field wiring
SIL 2 capable according to IEC 61508
Signal splitter functionality: one input can drive two outputs
12.5 mm slim DIN-rail mount housing
High electrical isolation between input, output, and power supply
Wide operating temperature range for harsh environments
Technical Specifications
Input: NAMUR sensor / dry contact
