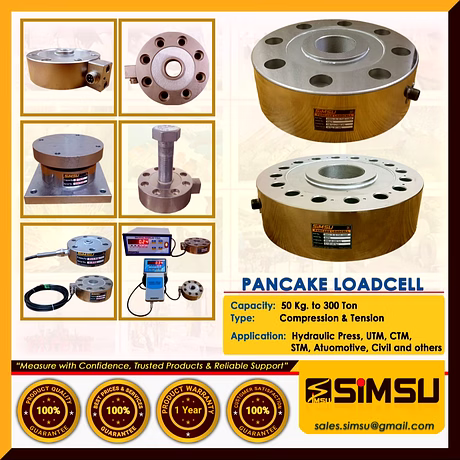

The Universal Pancake Loadcell is a precision-engineered sensor designed specifically for both tension and compression force measurement applications. Its robust pancake-shaped design allows for compact installation in tight spaces while maintaining high accuracy and reliability. This loadcell is widely utilized across various industrial sectors including manufacturing, automotive testing, structural engineering, and material testing facilities. Engineered for durability and stable performance, it is crafted from high-grade materials to withstand harsh industrial environments, providing consistent readings under fluctuating load conditions. The product supports seamless integration with data acquisition systems, making it an ideal choice for real-time force monitoring and control in automated processes. Its capacity to measure both tensile and compressive forces makes it versatile for applications such as press machines, weigh scales, hydraulic presses, and load testing rigs.
Key Features
| Features | Description |
|---|---|
| Design | Compact pancake-style loadcell for space-efficient installation |
| Measurement Type | Capable of measuring both tension and compression forces |
| Material Construction | Manufactured from high-strength alloy steel for enhanced durability |
| Accuracy | High precision output with minimal hysteresis for reliable readings |
| Industrial Applications | Suitable for manufacturing, automotive testing, material testing, and structural monitoring |
| Environmental Resistance | Protective coating resistant to moisture, dust, and industrial contaminants |
| Output Signal | Compatible with standard data acquisition and monitoring systems |
| Capacity Range | Available in various load capacities to accommodate diverse industrial needs |
| Mounting | Easy to mount with multiple threaded holes for secure attachment |
| Temperature Range | Operates efficiently in a wide temperature range typical of industrial environments |
| Attributes | Description |
|---|---|
| Load Type | Tension and Compression |
| Shape | Pancake (low profile circular design) |
| Material | Alloy Steel with protective coating |
| Output | mV/V standard analog output |
| Accuracy | ±0.05% full scale |
| Capacity Range | From 0.5kN to 500kN (varies by model) |
| Mounting Holes | Multiple threaded holes for flexible mounting |
| Operating Temperature | -20°C to +80°C |
| Protection Level | IP65/IP67 dependent on model |
| Cable Length | Typically 2 meters, customizable |
| Application | Industrial force measurement in compression and tension modes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, this loadcell is designed to measure both tension and compression forces accurately without the need for recalibration between modes.
It is widely used in applications such as hydraulic press force monitoring, automotive component testing, material tensile strength measurement, and structural load monitoring.
Yes, the Universal Pancake Loadcell provides a standard analog mV/V output signal compatible with most industrial data acquisition and monitoring systems.
The loadcell is protected against dust and moisture with an IP65 or IP67 rating, depending on the model, making it suitable for harsh industrial environments.
Yes, the Universal Pancake Loadcell is offered in a range of capacities from 0.5kN up to 500kN to meet diverse industrial force measurement needs.
Brand: simsu
Country Of Origin: India
There are many different types of load cells, depending on the application are designed in the market for usage.
Compression Pancake Load Cell are capable of measurement in compression mode to provide reliable result in single installation. These load cells come in a variety of sizes, ranges, and outputs. Universal Load Cells are rugged and resistant. With its compact construction it is designed and can perform in rough environments as well for laboratory and test purposes in the most demanding applications.
There are many different types of load cells, depending on the application are designed in the market for usage.
Compression Pancake Load Cell are capable of measurement in compression mode to provide reliable result in single installation. These load cells come in a variety of sizes, ranges, and outputs. Universal Load Cells are rugged and resistant. With its compact construction it is designed and can perform in rough environments as well for laboratory and test purposes in the most demanding applications.
