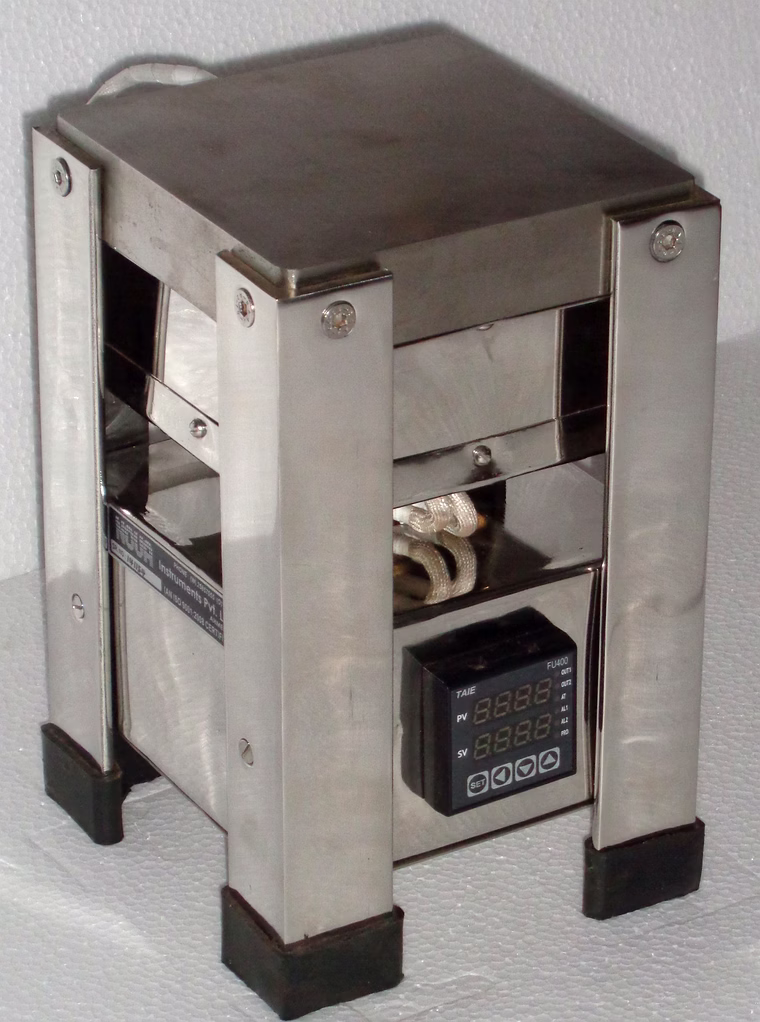

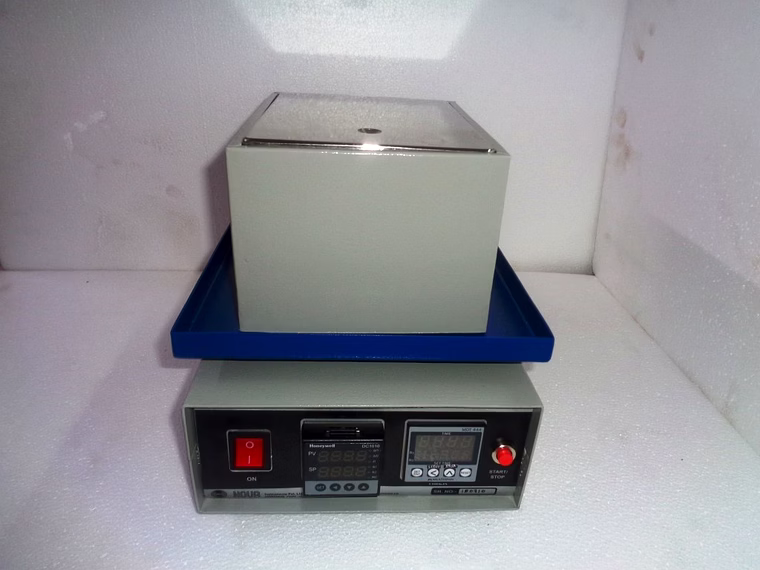

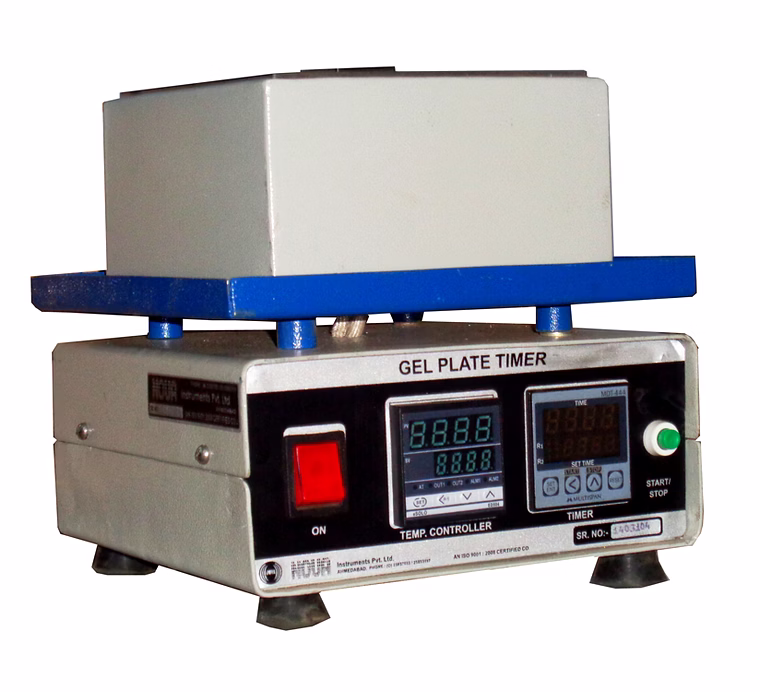

“NOVA” GEL PLATE FOR RESIN TEST-PID CONTROL

• COMPACT MODEL-STANDARD MODEL- (AS PER CANADIAN STANDARD)


TECHNICAL SPECIFICATION:

=======================

SIZE OF HOT PLATE : 150 x 150mm approx.

THICKNESS OF TOP PLATE : 25mm approx.

TEMPERATURE RANGE : R.T.+ 15° C above ambient to 250°C surface Temp.

RESOLUTION : 0.1° C

CONTROL ACCURACY : ± 3°C or better

SURFACE TEMPERATURE UNIFORMITY : Within ± 1% FSD or ± 3°C or better within

                                                          120mm x 120mm surface area from center.

Complete with

- Battery operated digital timer (Timing Device)

- Draw Down Tool

- Utility Knife
