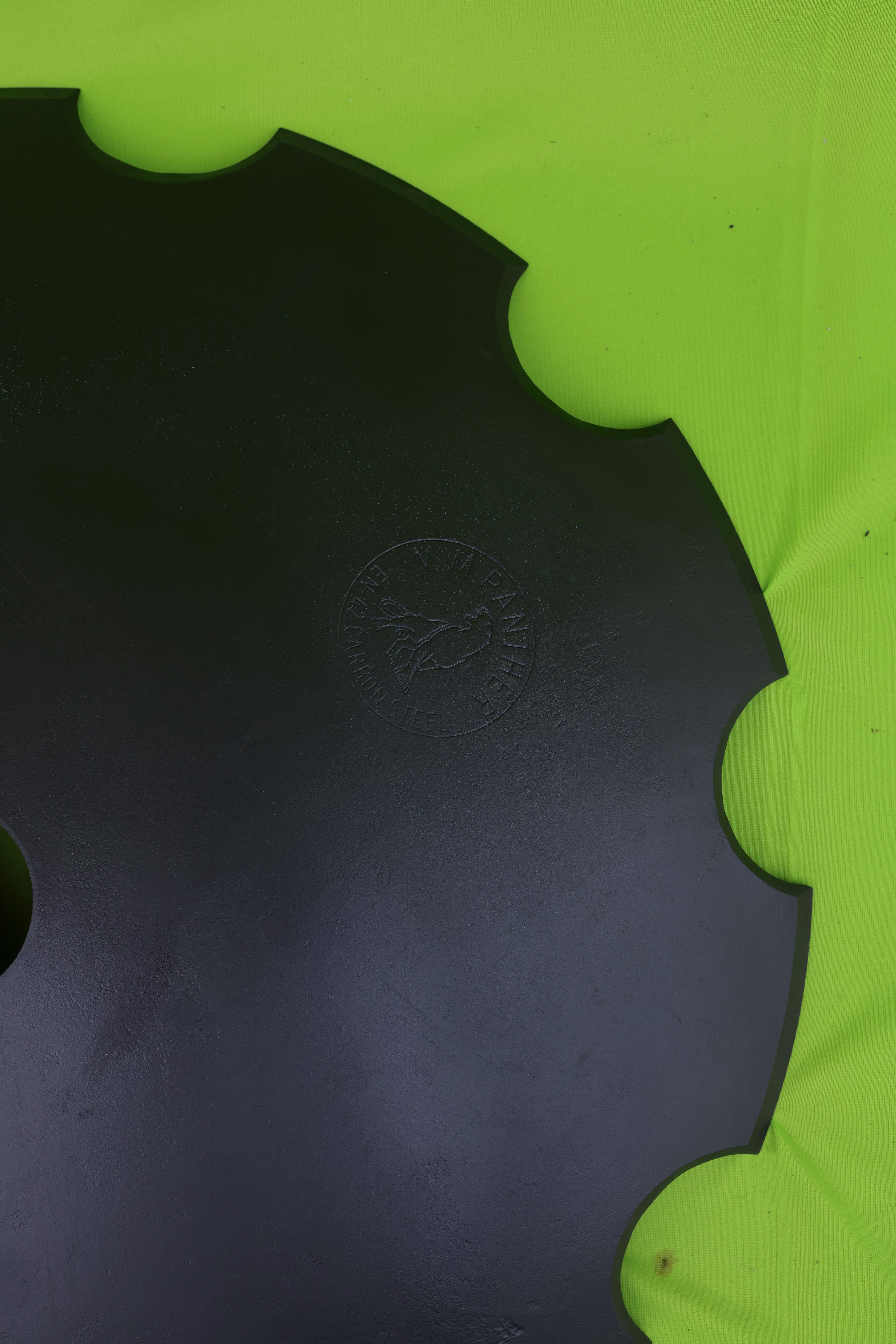

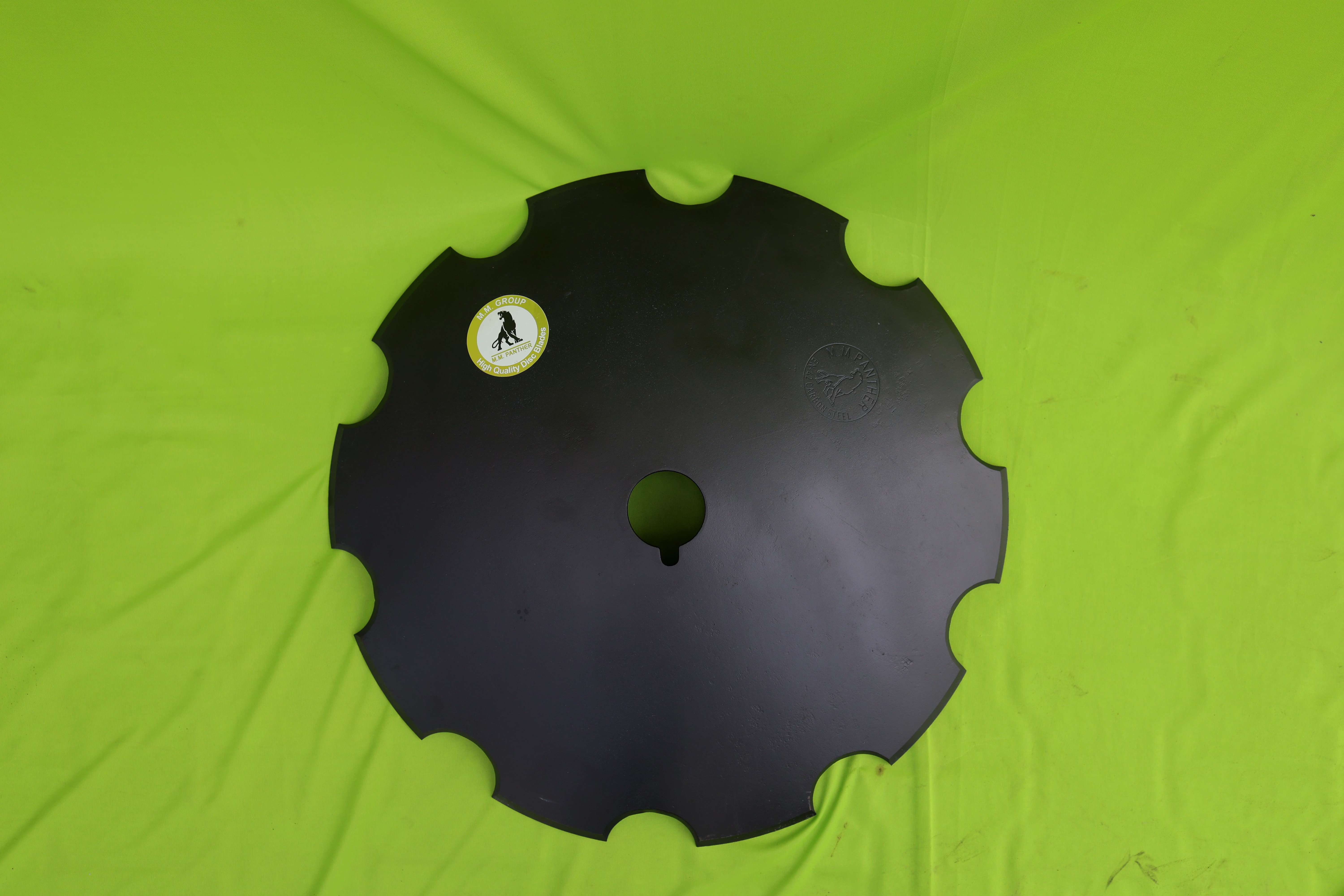

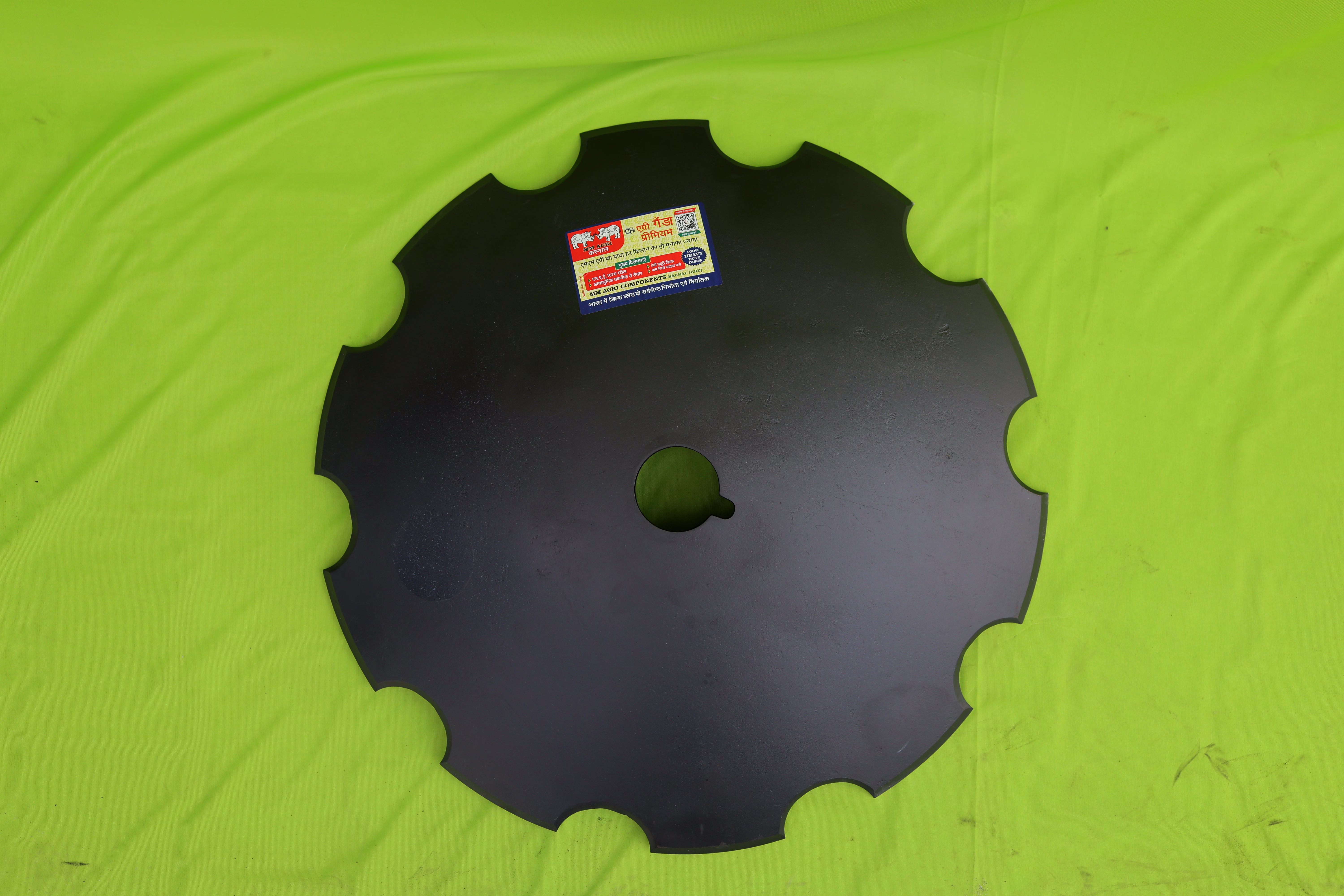

The Notched Disc is a precision-engineered mechanical component designed for industrial applications where controlled rotational motion and torque transmission are critical. This disc features a series of evenly spaced notches around its circumference, enabling it to engage accurately with complementary machine parts, such as springs, levers, or pawls, to control or limit movement. Manufactured from high-grade materials, the Notched Disc ensures durability and resistance to wear and tear even in demanding environments. Its exact notch specifications facilitate precise positioning and incremental adjustments in machinery, making it indispensable in sectors such as automation, manufacturing equipment, and mechanical assemblies requiring reliable indexing. This product is ideal for B2B clients seeking a reliable and robust component for their custom machinery or industrial automation systems.
Key Features
| Features | Description |
|---|---|
| Material | High-grade alloy steel or stainless steel |
| Notch Design | Precisely machined evenly spaced notches for accurate engagement |
| Durability | High resistance to wear, corrosion, and mechanical stress |
| Dimensional Accuracy | Manufactured with tight tolerance standards for seamless integration |
| Application | Suitable for mechanical indexing, positioning, and torque control |
| Customization | Available in various diameters and notch patterns upon request |
| Surface Finish | Smooth, polished or coated for enhanced longevity |
| Attributes | Description |
|---|---|
| Diameter Range | Typically 20mm to 200mm or as per requirement |
| Thickness | Varies from 3mm to 15mm based on application |
| Notch Count | Customizable, commonly between 12 to 36 notches |
| Material Grade | Alloy Steel Grade 4140 or Stainless Steel 304/316 |
| Tolerance | ±0.01 mm for notch positioning |
| Operating Temperature | -20°C to 150°C |
| Surface Treatment | Heat treated, possibly coated with black oxide or zinc plating |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Notched Disc can be customized in terms of diameter, thickness, number of notches, and material grade to meet specific machinery requirements.
Typically, the Notched Disc is manufactured using Alloy Steel Grade 4140 or Stainless Steel 304/316 to ensure strength, durability, and corrosion resistance.
Yes, the Notched Disc operates efficiently within the temperature range of -20°C to 150°C, making it suitable for various industrial environments.
Notch positioning is maintained within a tight tolerance of ±0.01 mm to ensure precise engagement and reliable performance.
Yes, surface treatments such as heat treatment, black oxide, or zinc plating are applied to improve wear resistance and protect against corrosion.
Country Of Origin: India
