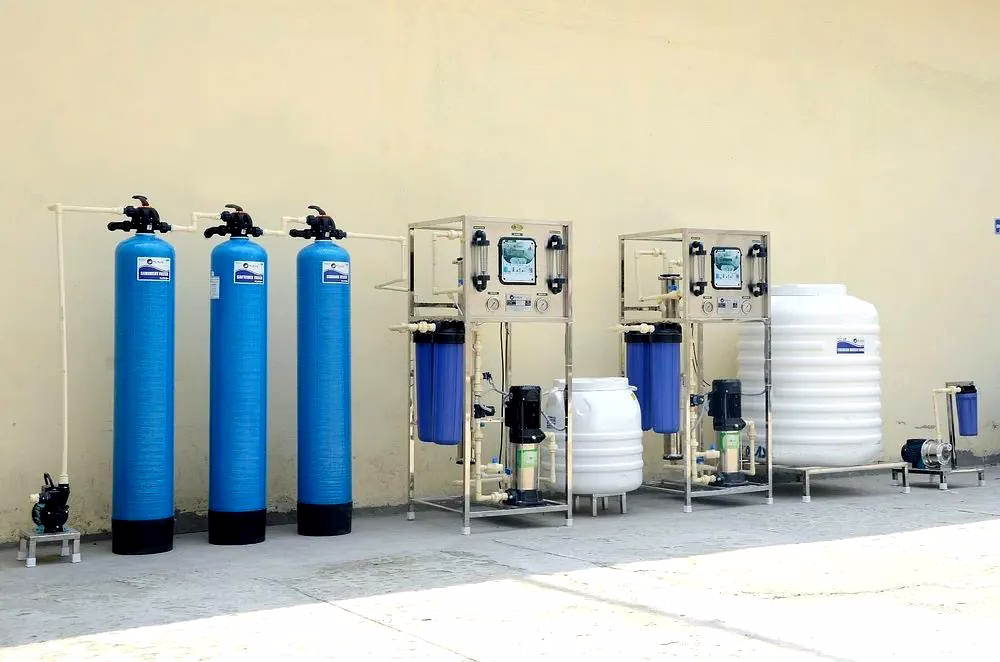

R.O. Plant 250 LPH – Stainless Steel Water Treatment Unit

R.O. Plant 250 LPH is an automatic reverse-osmosis unit engineered for continuous purified water production at 250 liters per hour. Constructed from 316L stainless steel for medical and industrial process use, the skid-mounted assembly integrates pre-filtration, high-pressure axial pumping, and membrane housings. The unit architecture features automated flush cycles and pressure protection to support uninterrupted operation in clinical or laboratory environments. Units ship in modular crates with instrumentation calibration certificates and material declarations. Supply-readiness is managed through serialized QC documentation and hydrostatic test reports, addressing the technical and logistical requirements of institutional buyers requiring traceable test evidence for regulated supply chains. Packaging include shock foam and humidity control to prevent contamination during intermodal transit.

Key Features

• 316L Stainless steel skid and fittings → provides superior corrosion resistance in softened or high-chloride feedwater and prevents particulate shedding.
• Automatic-pass control logic → utilizes integrated sensors and PLC monitoring to reduce operator intervention during normal production and flush cycles.
• Integrated pressure protection → features a high-pressure pump with soft-start capability to safeguard membranes from impulsive overpressure events.

Technical Attributes

• Flow Capacity: 250 LPH → selection parameter for low-to-medium demand process lines or satellite clinics.
• Material Grade: 316L Wetted parts → selection parameter for compatibility with potable and process water streams.
• Control Interface: PLC with Local HMI → determines compatibility with plant SCADA or standalone operation needs.
• Packing: Modular crate + Shock foam → ensures integrity of delicate membranes and instruments during export.

Composition and Process Design of Stainless Steel R.O. Plants

The technical framework of the R.O. Plant 250 LPH utilize a 316L stainless steel framework that houses high-rejection polyamide membranes and industrial-grade pre-filtration stages. The structural reasoning for the stainless steel construction is to minimize biofilm accumulation and microbial harborage, which are primary failure points in polymer-based systems used for medical-grade water. Pipework and membrane housings are welded and polished to prevent localized crevice corrosion. measurement physics rely on the differential pressure across the membrane; a failure in the pre-filtration housing—due to particulate bypass—leads to "membrane fouling," where mineral deposits block the pores. This failure mode results in a 40% reduction in permeate flow and a catastrophic increase in energy consumption. The skid include instrumentation for feed/permeate pressure and conductivity monitoring, providing the real-time data needed for automated flush control. Quality consistency is managed through serialized hydrostatic tests and factory calibration of all flow and conductivity meters, ensuring the plant meets the purity standards required for clinical and laboratory makeup water.

Functional Performance and Operational Stability in Purified Water Production

Operational efficiency is achieved through the unit’s automated flush logic, which issues controlled cleaning sequences to maintain membrane flux during periods of high feedwater TDS. functional performance centers on the high-pressure axial pump; a failure in the pump’s soft-start sequence leads to "water hammer" events that can rupture membrane seals or crack internal fittings. In a real operational scenario, a failure to monitor conductivity leads to permeate contamination, effectively decommissioning the batch for laboratory use. The 250 LPH plant utilize a modular skid layout that permit the replacement of filter cartridges and membrane elements without disassembling the entire frame, effectively lowering the mean time to repair (MTTR). The PLC system manages alarm thresholds for pressure and quality, providing B2B facility managers with event-driven diagnostic logs. This systematic approach ensure the plant provides a steady 250 LPH output under nominal feed conditions, providing the technical transparency required for risk-assessment workflows in healthcare and process-control environments. Thermal management is governed by the feedwater temperature; the unit include thermal cutoffs to protect the membranes from high-temperature degradation.

Institutional Deployment and Logistical Readiness for Cross-Border Logistics

Intended for clinics, laboratories, and small manufacturing process lines, the R.O. Plant 250 LPH is configured for the logistical requirements of global multi-site procurement. Skids ship in modular crates with humidity-control liners to prevent atmospheric contamination of the wetted surfaces during transit. Failure to implement shock-mitigating packaging can lead to the displacement of the sensitive membrane housings, resulting in internal bypass and failed site validation. For international procurement, supply-readiness is supported through material declarations and lot-specific test certificates that facilitate regulatory review and customs clearance. Export-ready documentation include technical dossiers and wiring diagrams provided with each shipment to support facility commissioning. OEM private-label manufacturing options allow system builders to deliver branded water treatment solutions with adapted HMI interfaces. This high-authority approach ensure procurement teams receive verified, site-ready hardware that meet the rigorous performance and safety requirements of global water purification markets. Each consignment include a commissioning kit and material trace records, providing the technical depth required for institutional asset registration and long-term maintenance tracking.
