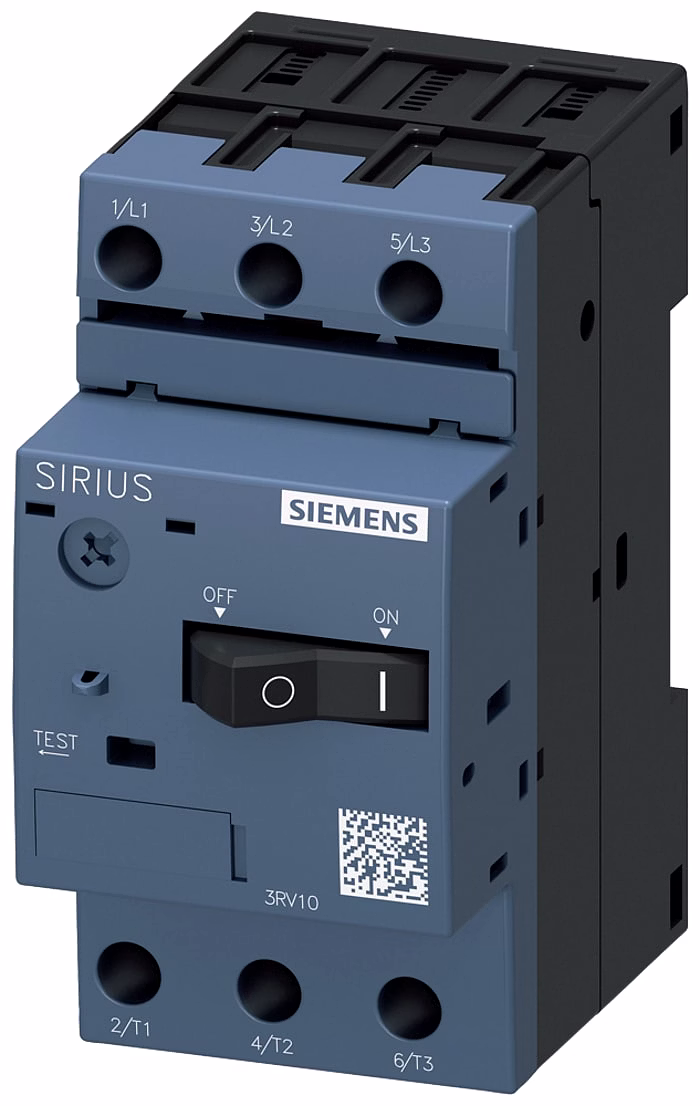

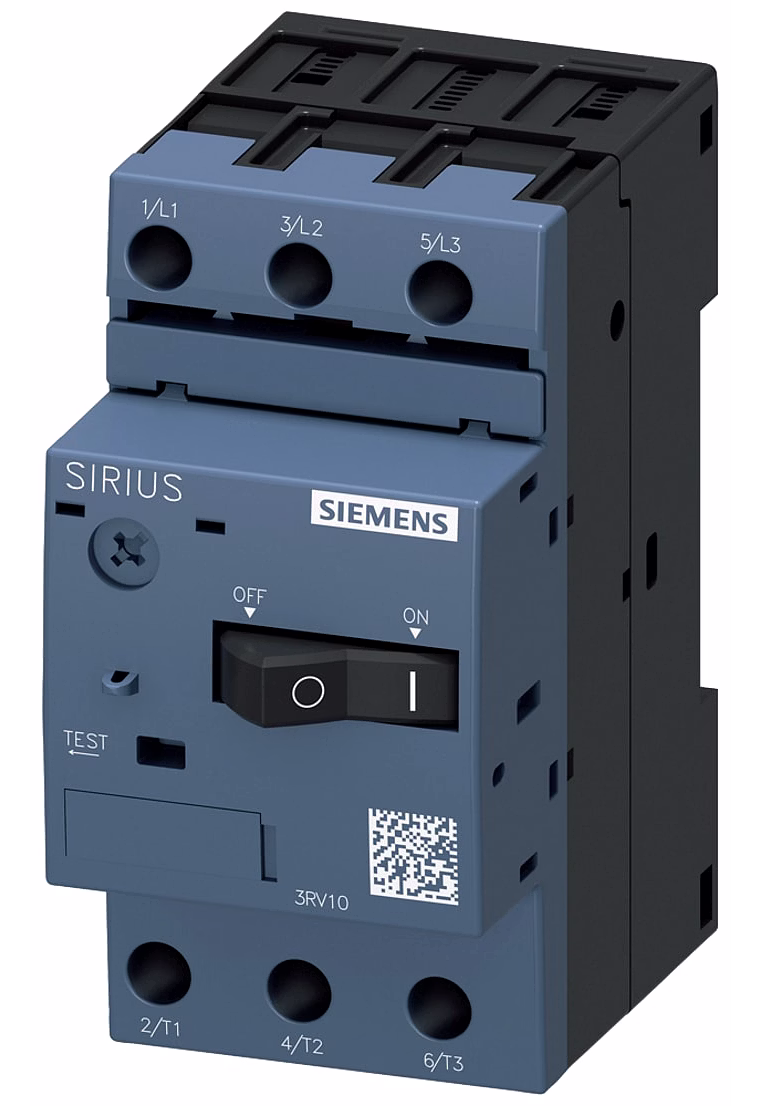

The Motor Circuit Breaker 1.1-1.6A is a three-pole motor protective circuit breaker from the 3RV10 range, designed for reliable switching and protection of induction motors and load feeders. This motor protection switch combines short-circuit protection, motor protection, and system protection in a compact form factor, making it suitable for industrial control panels, machinery, and electrical distribution applications where dependable motor safeguarding is essential. Built for long-term stability, the unit is optimized for load feeder applications and supports manual operation with a reset function. It also features a lockable OFF position for added safety during maintenance and servicing. With a rated operational voltage of up to 690V and short-circuit withstand capability up to 50kA at 400V AC, it is engineered for demanding industrial environments. The breaker is suitable for use in applications such as emergency stop switching, transformer protection, and fuse monitoring, in addition to standard motor protection. It offers a maximum switching frequency of 15 operations per hour and a mechanical life of up to 10^5 operations, supporting repeated use in industrial systems. The ambient operating temperature range of -20°C to +60°C further enhances its suitability for varied installation conditions. Please note that this product is in obsolescence mode and is scheduled for discontinuation by the manufacturer. Buyers are advised to review the manufacturer-recommended alternative or refer to the cross-reference list for the appropriate upgrade path. When installing in dusty or damp environments, proper enclosure protection is recommended to ensure reliable performance and protection from environmental factors.
Key Features
| Features | Description |
|---|---|
| Current Range | 1.1-1.6A |
| Pole Configuration | Three-pole |
| Protection Type | Motor protection, short-circuit protection, and system protection |
| Rated Operational Voltage | 690V |
| Short-Circuit Withstand | Up to 50kA at 400V AC |
| Manual Reset | Yes |
| Lockable Off Position | Yes |
| Attributes | Description |
|---|---|
| Product Type | Motor circuit breaker / motor protective circuit breaker |
| Range | 3RV10 |
| Pole Count | 3-pole |
| Rated Current | 1.1-1.6A |
| Maximum Rated Current | 100A |
| Rated Operational Voltage | 690V |
| Short-Circuit Breaking Capacity | 50kA at 400V AC |
| Mechanical Life | 10^5 operations |
| Maximum Switching Frequency | 15 operations/hour |
| Ambient Temperature Range | -20°C to +60°C |
| Reset Type | Manual reset |
| Lockable | Lockable in OFF position |
| Applications | Motor protection, short-circuit protection, system protection, transformer protection, emergency stop switches, fuse monitoring |
| Approvals | UL, CSA |
| Standards | IEC947, VDE0990, EN60947 |
| Environmental Note | Suitable enclosure required for dusty, damp, or vapour-exposed environments |
| Lifecycle Status | Obsolescence mode / due for discontinuation |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, it is specifically optimized for load feeders and is designed for switching and protecting induction motors.
Yes, the unit has a lockable OFF position, which helps secure the circuit during maintenance procedures.
Because motor starter protectors are vulnerable to dust and caustic vapours, a suitable enclosure should be used in damp or dusty environments.
No, this product is in obsolescence mode and is due for discontinuation by the manufacturer.
The breaker is short-circuit proof up to 50kA at 400V AC.
Yes, it carries UL and CSA approvals and complies with IEC947, VDE0990, and EN60947 standards.
