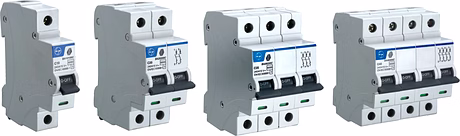

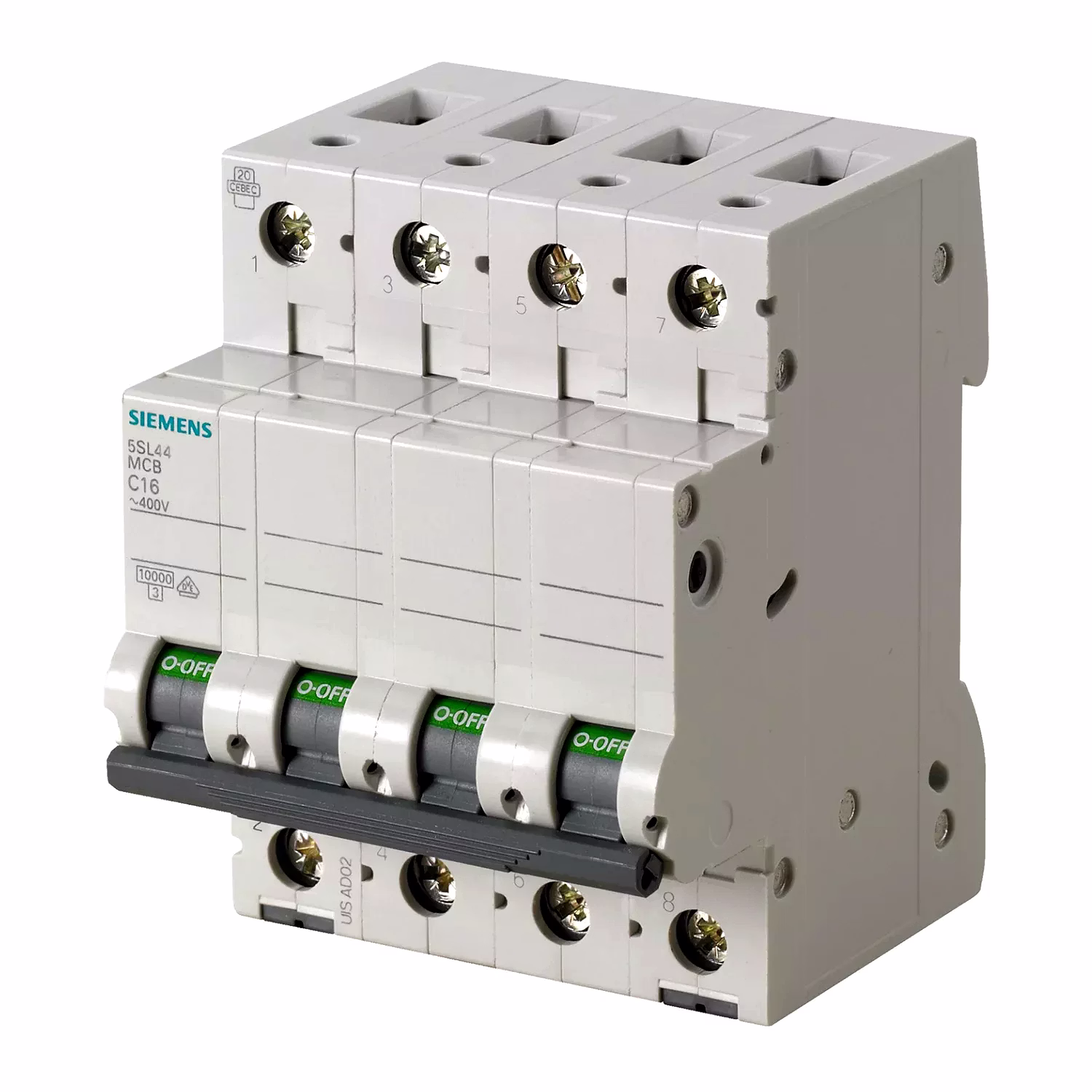

The Miniature Circuit Breaker (MCB) is a highly reliable and compact automatic electrical switch designed specifically for protecting low-voltage electrical circuits from damage caused by overcurrent, short circuit, and overload conditions. Featuring advanced thermal and magnetic tripping mechanisms, the MCB quickly interrupts electrical flow when unsafe current levels are detected. Equipped with a wide range of current ratings from 6A up to 125A, this device caters to diverse applications spanning residential, commercial, and industrial environments. Its resettable functionality allows for quick restoration of power after fault resolution. The MCB’s compact size and DIN rail mounting capability make it an ideal solution for efficient installation within distribution boards, switchboards, and consumer units. This miniature yet robust circuit protection device ensures optimal safety, minimal downtime, and enhanced electrical system longevity.
Key Features
| Features | Description |
|---|---|
| Overload Protection | Protects circuits by tripping under prolonged excessive current to prevent overheating and fire hazards. |
| Thermal Mechanism | Uses a thermal bimetallic strip to provide delayed tripping during overloads, accommodating temporary surges. |
| Short Circuit Protection | Instantaneous trip via magnetic mechanism cuts off electrical flow immediately during short circuits. |
| Rated Current Range | Available in current ratings from 6A to 125A to suit varying power demands. |
| Type Classification | Includes Type B, C, and D variants to match circuit inrush current characteristics. |
| Compact Size | Space-saving design suitable for installation in confined electrical panels. |
| DIN Rail Mounting | Standardized mounting facilitates easy installation and replacement. |
| Resettable Protection | Allows manual resetting after tripping, reducing downtime and maintenance complexity. |
| Attributes | Description |
|---|---|
| Product Type | Miniature Circuit Breaker (MCB) |
| Function | Automatic circuit protection against overloads and short circuits |
| Current Rating Range | 6 Amps to 125 Amps |
| Tripping Mechanism | Thermal and Magnetic (Bimetallic strip and Electromagnetic trip) |
| Tripping Types | Type B (3-5x rated current), Type C (5-10x rated current), Type D (10-20x rated current) |
| Voltage Rating | Low-voltage circuits (typically up to 415V AC) |
| Mounting Type | DIN rail mounting |
| Application | Residential, Commercial, and Industrial electrical systems |
| Reset Capability | Manual reset after fault clearance |
| Dimensions | Compact footprint suitable for distribution boards |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The MCB uses a thermal bimetallic strip to detect prolonged overload currents, causing delayed tripping to prevent nuisance trips, and an electromagnetic trip mechanism to instantly detect and interrupt short circuit currents.
The choice depends on the inrush current characteristics of the circuit load: Type B for low inrush (lighting, small appliances), Type C for moderate inrush (motors, fluorescent lighting), and Type D for high inrush (large motors, transformers).
Yes, the MCB’s standard design supports DIN rail mounting, allowing easy installation or replacement in existing distribution boards or switchboards without requiring structural modifications.
No, the standard MCB is rated up to 125 Amps. For circuits requiring higher ratings, other types of circuit breakers should be considered.
The MCB can be manually reset after tripping, eliminating the need for replacement components after every fault and reducing downtime and maintenance costs.
Brand: reputed brands
Country Of Origin: India
A Miniature Circuit Breaker (MCB) is a compact, automatic electrical switch that protects electrical circuits from overcurrent, short circuit, and overload conditions. It is designed to interrupt the flow of electricity when these faults occur, thereby preventing damage to electrical wiring, appliances, and other components in the circuit. MCBs are commonly used in residential, commercial, and industrial electrical systems due to their reliability, ease of use, and efficiency in protecting electrical circuits.
MCBs are typically rated for currents ranging from 6A to 125A and are designed to protect low-voltage circuits. They can handle the high fault current levels associated with short circuits, and they offer resettable protection, meaning the circuit breaker can be manually reset after tripping, once the issue has been resolved.
Key Features of Miniature Circuit Breakers (MCBs)
Overload Protection:
Prevents Overheating: MCBs are primarily designed to provide protection against overload conditions. If a circuit is drawing too much current for a prolonged period, the MCB trips to disconnect the power, preventing overheating of wiring and the risk of fire.
Thermal Mechanism: MCBs typically use a thermal bimetallic strip that bends under excessive current, causing the breaker to trip after a set amount of time. This provides delayed protection against overloads, allowing for temporary surges without causing immediate disruption.
Short Circuit Protection:
Instantaneous Tripping: MCBs are designed to trip almost instantly in the event of a short circuit (a direct connection between live and neutral conductors). This rapid action helps prevent catastrophic damage to the circuit and connected equipment by cutting off the current flow almost immediately.
Magnetic Mechanism: MCBs often use a magnetic mechanism (electromagnetic trip) to provide fast tripping during short-circuit conditions. The magnetic force quickly pulls the contacts apart when a short circuit occurs, preventing prolonged damage.
Rated Current (Amperage):
MCBs are available in a wide range of current ratings to suit different applications, from 6A (for low-power circuits) to 125A or higher for heavier-duty circuits. The selected MCB rating should match the current-carrying capacity of the circuit being protected
Common ratings for residential use range from 6A to 32A, while commercial and industrial systems may use higher ratings, typically in the 50A to 125A range.
Types of MCBs: MCBs are classified into different types based on their tripping characteristics (how they respond to overloads and short circuits). The most common types include:
Type B: Trips between 3 and 5 times the rated current. Suitable for circuits with low inrush currents, such as lighting circuits and small household appliances.
Type C: Trips between 5 and 10 times the rated current. Suitable for circuits with moderate inrush currents, such as motors and fluorescent lighting.
Type D: Trips between 10 and 20 times the rated current. Used for circuits with high inrush currents, such as large motors or transformers
Compact and Space-Saving:
Small Size: MCBs are designed to be compact and easy to install. Their small size makes them ideal for use in distribution boards (DBs), switchboards, and consumer units, where space is often limited.
DIN Rail Mounting: Most MCBs are designed to be mounted on DIN rails, which allows for easy installation and replacement.
