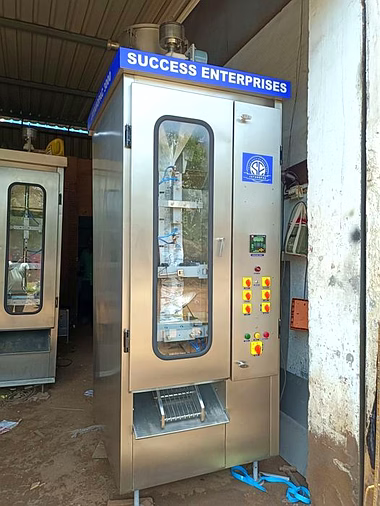

The JAYAHO PAC 3000 Mechanical Automatic Milk Pouch Packing Machine is designed specifically for efficient, high-speed milk packaging. This robust machine seamlessly fills and packs milk in pouches ranging from 200ml to 1000ml with exceptional accuracy of +/- 2 grams. Featuring gravity-controlled magnetic coil filling technology, it ensures precise milk volume for each pouch. With the capacity to produce up to 3000 pouches per hour for 200ml packs, this machine is ideal for dairy processors seeking consistent output. Constructed with premium materials including 304-grade stainless steel, mild steel, and aluminum, it guarantees durability and hygiene suitable for food-grade applications. The vertical impulse sealing system combined with vertical overlap/side seals ensures secure, leak-proof pouches. Supported by Transtech gearbox motors (1Hp main and 0.5Hp pouch feed), it maintains smooth and reliable operation. The machine accommodates film rolls weighing 15 to 22 kgs with widths around 322mm and film thickness between 85 to 110 microns, making it compatible with commonly used milk packaging films. Designed with electrical supply requirements of 440V AC 3-phase with neutral, the JAYAHO PAC 3000 delivers operational efficiency for medium to large-scale dairy packaging units.
Key Features
| Features | Description |
|---|---|
| Product to Pack | Milk |
| Machine Type | Mechanical Automatic Milk Pouch Packing Machine |
| Model | JAYAHO PAC 3000 |
| Packaging Range | 200ml to 1000ml |
| Milk Filling System | Gravity controlled magnetic coil |
| Filling Accuracy | +/- 2 grams |
| Machine Speed | 3000 pouches/hour (200ml), 2500 pouches/hour (500ml), 1800 pouches/hour (1000ml) |
| Main Gearbox | Transtech gear box with 1Hp motor |
| Pouch Feed Mechanism | Transtech gear box with 0.5Hp motor, photosensor back fitting |
| Sealing Type | Vertical overlap / side seal with impulse system |
| Film Compatibility | Film thickness 85-110 microns, film width 322 +/- 2 mm |
| Film Roll Weight Capacity | 15 to 22 kgs |
| Material of Construction | Stainless Steel (304 grade), Mild Steel, Aluminum |
| Electric Supply | 440V AC, 3-phase with neutral |
| Machine Dimensions | 900mm x 900mm x 2500mm |
| Attributes | Description |
|---|---|
| Machine Model | JAYAHO PAC 3000 |
| Packing Capacity | 1800-3000 pouches per hour depending on pouch size |
| Pouch Size Range | 200ml to 1000ml |
| Filling Method | Gravity control with magnetic coil |
| Filling Accuracy | +/- 2 grams |
| Seal Type | Vertical overlap / side seal, impulse system |
| Film Specifications | Thickness: 85 to 110 microns, Width: 322 +/- 2 mm, Roll weight: 15-22 kgs |
| Material | SS 304 grade, MS, Aluminum |
| Main Motor Power | 1 Hp |
| Pouch Feed Motor Power | 0.5 Hp |
| Electrical Requirement | 440 V AC, 3 Phase with Neutral |
| Dimensions (LxWxH) | 900mm x 900mm x 2500mm |
| Gearbox | Transtech |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The JAYAHO PAC 3000 machine can pack pouches ranging from 200ml up to 1000ml.
The machine achieves an accuracy of plus or minus 2 grams in milk filling.
It uses vertical overlap or side seals with an impulse sealing system.
The machine can pack 3000 pouches per hour for 200ml, 2500 per hour for 500ml, and 1800 per hour for 1000ml pouches.
The machine is constructed from food-grade 304 stainless steel, mild steel, and aluminum for durability and hygiene.
It requires a 440V AC, 3-phase power supply with neutral.
No, the machine is designed to accommodate film rolls weighing between 15 to 22 kilograms.
Country Of Origin: India
S.No Technical Specifications
1. Product to pack: Milk
2. Type of Machine: Mechanical automatic Milk pouch packing machine
3. Model :JAYAHO PAC 3000
4. Size 900mm x 900mm x 2500mm
5. Milk filling :Gravity control magnatic coil
6. Packaging range: 200ml to 1000ml
7. Accuracy: +/- 2 gm
8. Speed of the machine: 3000 pouches ,2500,1800 per hour for 200ml,500ml and 1000ml
9. Main gear box Transtech gear box with 1Hp motor
10. Film thickness: 85 microns to 110microns
11. Film width: 322- +/- 2mm
12. Film roll weight: 15 to 22 kgs
13. Type of seal :Vertical overlap / side seal
14. Material of construction: S.S / M.S / Aluminum
15. Vertical seal :Impulse System
16. Pouch feed :Transtech gear box with 0.5hp motor,photosensor Back fitting
17. Electric supply :440v ac 3phase with neutral
18. SS sheet: 304 grade
