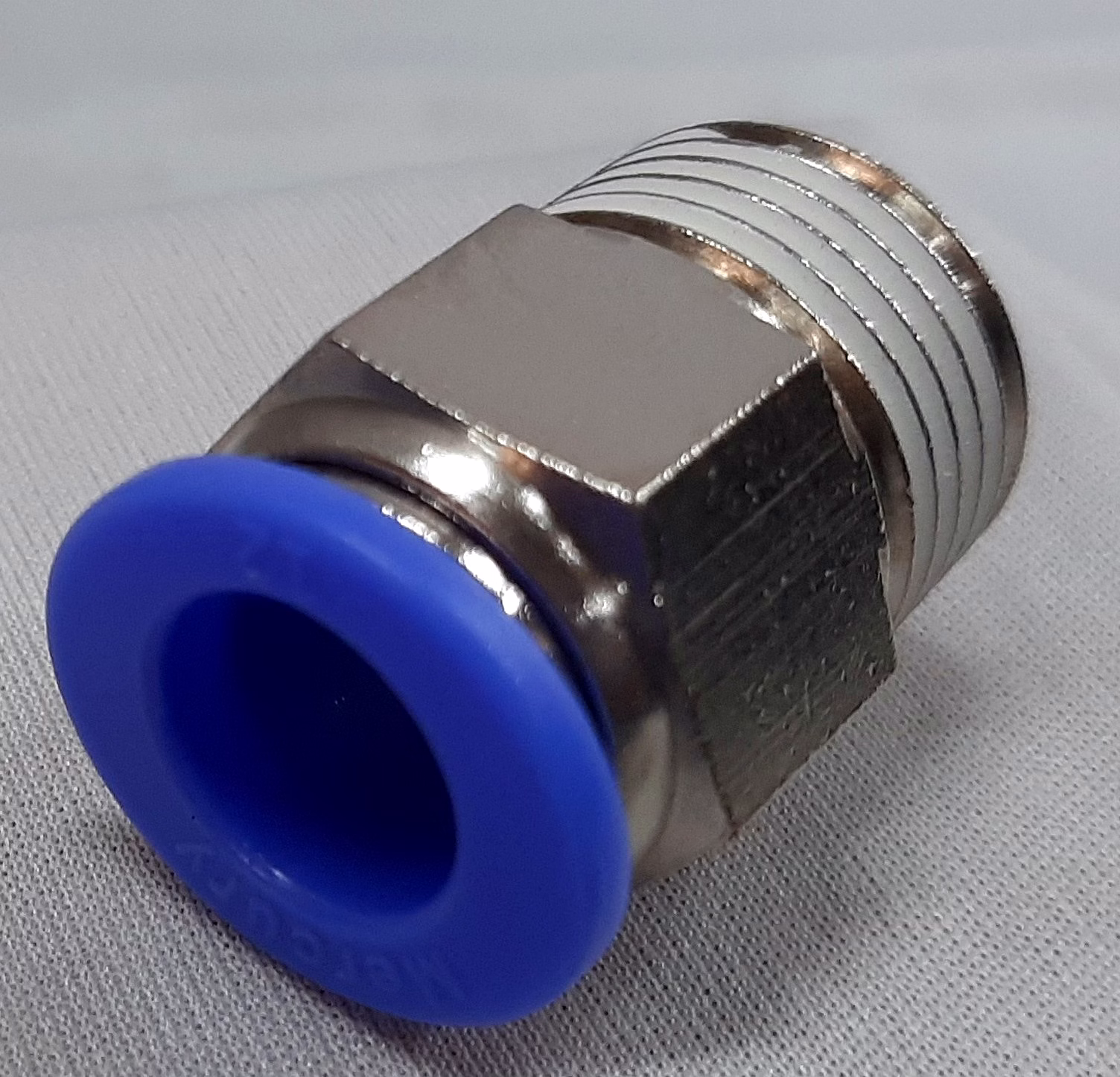

The Mercury Make Male Connector 8 x1/4" (Model No. MPC08-02) is a premium pneumatic fitting designed to provide fast, secure, and leak-proof connections in pneumatic systems. It features a quick connect mechanism with a one-touch push connector and a pull collar for easy disconnection, ensuring speedy installation and maintenance. The connector is equipped with a special sealing design on the tube outer diameter (O.D.) and a nickel-plated metal body that provides excellent anti-corrosion protection, thereby extending the lifespan of the fitting in demanding industrial environments. The special steel locking collet enhances mechanical strength and secures tubing firmly. The fitting allows 360° swivel rotation, enabling flexible tube orientation without compromising the seal integrity. Precoated PTFE sealant on the threaded portions ensures robust, leak-free thread connections. Manufactured with high-strength engineered plastic housing combined with metal components, this connector is durable yet lightweight. Mercury Make Male Connector 8 x1/4" is compatible with a wide range of thread sizes including M5, 1/8", 1/4", 3/8", and 1/2", making it adaptable for various pneumatic applications in manufacturing, automation, and industrial setups.
Key Features
| Features | Description |
|---|---|
| Model Number | MPC08-02 |
| Connector Type | Male Connector |
| Tube Size Compatibility | 8 mm outer diameter |
| Thread Size | 1/4 inch |
| Quick Connect | One Touch Push Connect with Pull Collar for quick disconnect |
| Seal | Special seal on tube O.D. ensuring leak-proof connection |
| Locking Mechanism | Special Steel Locking Collet |
| Body Material | Nickel Plated Metal Body for corrosion resistance |
| Thread Sealant | Precoated PTFE sealant on threads |
| Tube Housing Material | High Strength Engineered Plastic |
| Rotation Capability | Leak Proof Swivel with 360° rotation |
| Availability | Available in all thread sizes M5, 1/8", 1/4", 3/8", 1/2" |
| Attributes | Description |
|---|---|
| Model Number | MPC08-02 |
| Tube Outer Diameter | 8 mm |
| Thread Size | 1/4 inch |
| Connection Type | Male quick connect pneumatic fitting |
| Material - Body | Nickel Plated Metal |
| Material - Tube Housing | High Strength Engineered Plastic |
| Seal Type | Special O.D. tube seal with PTFE coated threads |
| Locking Collet | Special Steel |
| Swivel Function | 360° leak-proof rotation |
| Operating Orientation | Any tube orientation allowed |
| Thread Sizes Available | M5, 1/8", 1/4", 3/8", 1/2" |
| Application | Pneumatic systems in industrial and manufacturing environments |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the connector is designed with a leak-proof swivel mechanism that allows 360° rotation and any tube orientation without compromising the seal.
This specific model MPC08-02 is designed for 8 mm outer diameter tubes. However, Mercury offers other models compatible with different tube sizes.
The connector body is nickel plated metal, which provides excellent corrosion resistance suitable for industrial pneumatic applications.
Yes, it features a one-touch push connect with a pull collar enabling quick and convenient disconnects in pneumatic systems.
Yes, the threads are precoated with PTFE sealant to ensure leak-proof threaded connections.
