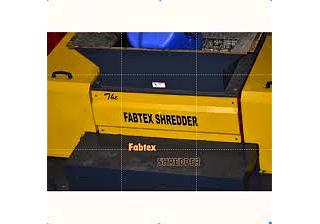

The Fabtex Engineering Works Medical Waste Shredder is a heavy-duty industrial shredding solution designed for safe, efficient, and controlled size reduction of medical and healthcare waste. Built for hospitals, diagnostic centers, healthcare waste processors, and commercial waste treatment facilities, this shredder handles a wide range of medical-grade materials including syringes, plastic components, paper, polythene, light electronic scrap, fabrics, glass, and stainless-steel instruments. Available in single-shaft and two-shaft configurations, the shredder uses a slow-speed, high-torque cutting system to process tough waste materials with strong cutting performance and reduced wear. The newly designed cutter blade operates at very close tolerances, helping lower maintenance requirements and improving blade life for long-term use in demanding waste handling environments. Its coarse or fine cut output options make it suitable for different downstream disposal or processing needs, while the PLC-operated control system supports stable, automated operation. The rugged construction, low power consumption, and few moving parts contribute to dependable performance and economical operation. By reducing bulky autoclaved medical waste by up to 70%, the machine helps convert hazardous waste into a non-reusable and unrecognizable form, improving waste management efficiency and landfill handling. With multiple output capacity options and electric drive configurations, the Fabtex Medical Waste Shredder is engineered for facilities that require consistent throughput, industrial durability, and cost-effective medical waste processing.
Key Features
| Features | Description |
|---|---|
| Shredder Type | Available in single-shaft and two-shaft industrial configurations |
| Waste Compatibility | Suitable for syringes, plastic components, paper, polythene, light electronic scrap, fabrics, glass, and stainless-steel instruments |
| Cutting Technology | Slow-speed, high-torque shredding for tough medical waste materials |
| Output Options | Supports coarse or finely cut output configurations |
| Blade Design | Newly designed cutter blades with very close tolerance for lower wear cost |
| Automation | Completely PLC operated |
| Construction | Rugged industrial construction for demanding use |
| Operating Cost | Low power consumption with minimal maintenance needs |
| Attributes | Description |
|---|---|
| Drive | Electric |
| Number of Motors | One |
| Power Range | 3 hp x 15 Hp x 17.5 Hp x 1 |
| Capacity | Up to 30 kgs/hr, Up to 50 kgs/hr, Up to 100 kgs |
| Cutter Thickness (Nominal) | 13 - 20 mm |
| Cutting Chamber | 280 x 250 mm, 350 x 320 mm, 500 x 320 mm |
| Cutter Diameter | 120 mm, 150 mm, 150 mm |
| Final Output Size | 20 mm – 200 mm |
| Overall Dimension (L x W x H) | 1300 x 700 x 1400 mm, 1450 x 750 x 1400 mm, 1690 x 800 x 2100 mm |
| Brand/Manufacturer | FAB TEX ENGINEERING WORKS |
| Product Type | Industrial Medical Waste Shredder |
| Minimum Order Quantity | 1 Piece |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, it is designed to reduce bulky autoclaved waste and also shred mixed medical-grade materials such as syringes, plastics, fabrics, glass, and stainless-steel instruments.
The cutter blades are engineered with very close tolerance, which helps reduce wear cost and supports efficient shredding of tough and mixed medical waste materials.
Yes, the slow-speed, high-torque design, low power consumption, few moving parts, and rugged construction are all intended to minimize operating and maintenance costs.
The shredder supports coarse or finely cut output configurations, with final output size ranging from 20 mm to 200 mm depending on the setup.
It is suitable for hospitals, high-volume commercial processing plants, healthcare waste treatment facilities, and medical waste disposal operations.
Country Of Origin: India
Medical Waste Shredder:
The Fabtex make Single shaft or two-shaft Industrial Medical Waste Shredders have been installed in many hospitals and high volume commercial processing plants. The newly designed cutting blade operates at extremely close tolerance which produce low wear cost features for new or existing shredder systems.
Slow speed, high torque shredders easily reduce the toughest medical grade materials ranging from fabrics to glass, plastics and stainless steel instruments and more. These machines reduce bulky autoclaved waste destined for landfill by as much as 70%, rendering all materials to a non-reusable and unrecognizable state.
This powerful combination provides years of worry free operation with minimal operating costs and maintenance…critical savings in a tire recycling operation.
Applications:
Syringes, Plastic Components, Light electronic scrap, Paper or polythene, etc.,
Features
Specification:
Drive | Electric | Electric | Electric |
Number of Motors | One | ||
Power Range | 3 hp x 1 | 5 Hp x 1 | 7.5 Hp x 1 |
Capacity | Up to 30kgs/hr | Up to 50 kgs/hr | Up to 100kgs |
Cutter Thickness (nominal) | 13 - 20 mm | ||
Cutting Chamber | 280 x 250 | 350 x 320 | 500 x 320 |
Cutter Diameter | 120 mm | 150 mm | 150 mm |
Final Output | 20 mm – 200 mm | ||
Overall Dimension (L*W*H) | 1300*700*1400 | 1450*750*1400 | 1690*800*2100 |
