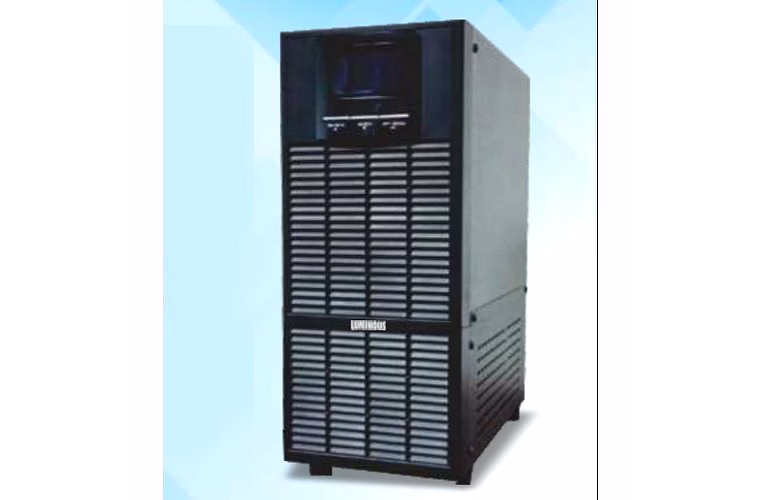

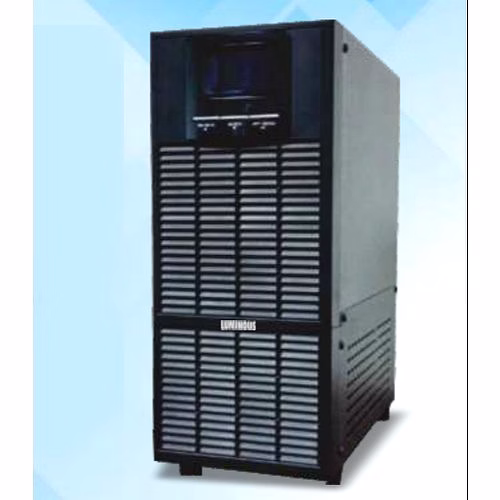

Luminous Make 20 KVA 3:1 Phase On Line UPS with Isolation Transformer(LD20KT)

Specification

Output Specification

• Output Capacity (KVA )- 20 KVA
• Output Capacity (KW )- 18 KW
• Output Power Factor- .99 Power Factor
• Output Phase- 1 Phase
• Output Voltage- 230 Volt
• Other Output Voltage- 220 Or 240 Volt
• Efficiency at Full Load- > 89 %
• Output Voltage Distortion- < 3 %
• Output Frequency (sync to mains)- 50/60Hz +/- 3 Hz
• Output Frequency (not synced)- +/- 0.1% for 50/60Hz Nominal
• Load Crest Factor- 3:1
• Output Voltage THD- < 3 %
• Transfer Time- < 0 ms
• Output Waveform type- Sine Wave
• Output Connections-Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Input Specification

• Input Voltage- 400 Volt
• Other Input Voltage- 380 Or 415 Volt
• Input Phase- .99 Phase
• Input frequency- 50/60Hz +/- 3 Hz
• Input Voltage Range (Output Derated) - Volt
• Input voltage range for main operations- 304 - 287 Volt
• Input frequency Range- 40 - 60 Hz
• Input Power Factor- > .99
• Input Connections
• Hard Wire 3 wire (1PH+N+G
