Lantronix xPico 250 Embedded Wi-Fi + Bluetooth IoT Gateway

Name: Lantronix xPico 250 Embedded Wi-Fi + Bluetooth IoT Gateway
Brand: rfnt
SKU: 8611977
Availability: InStoreOnly

Brand: rfnt

MRP

Price

Inclusive of all taxes

Add to Cart

Continue to checkout

Send Inquiry

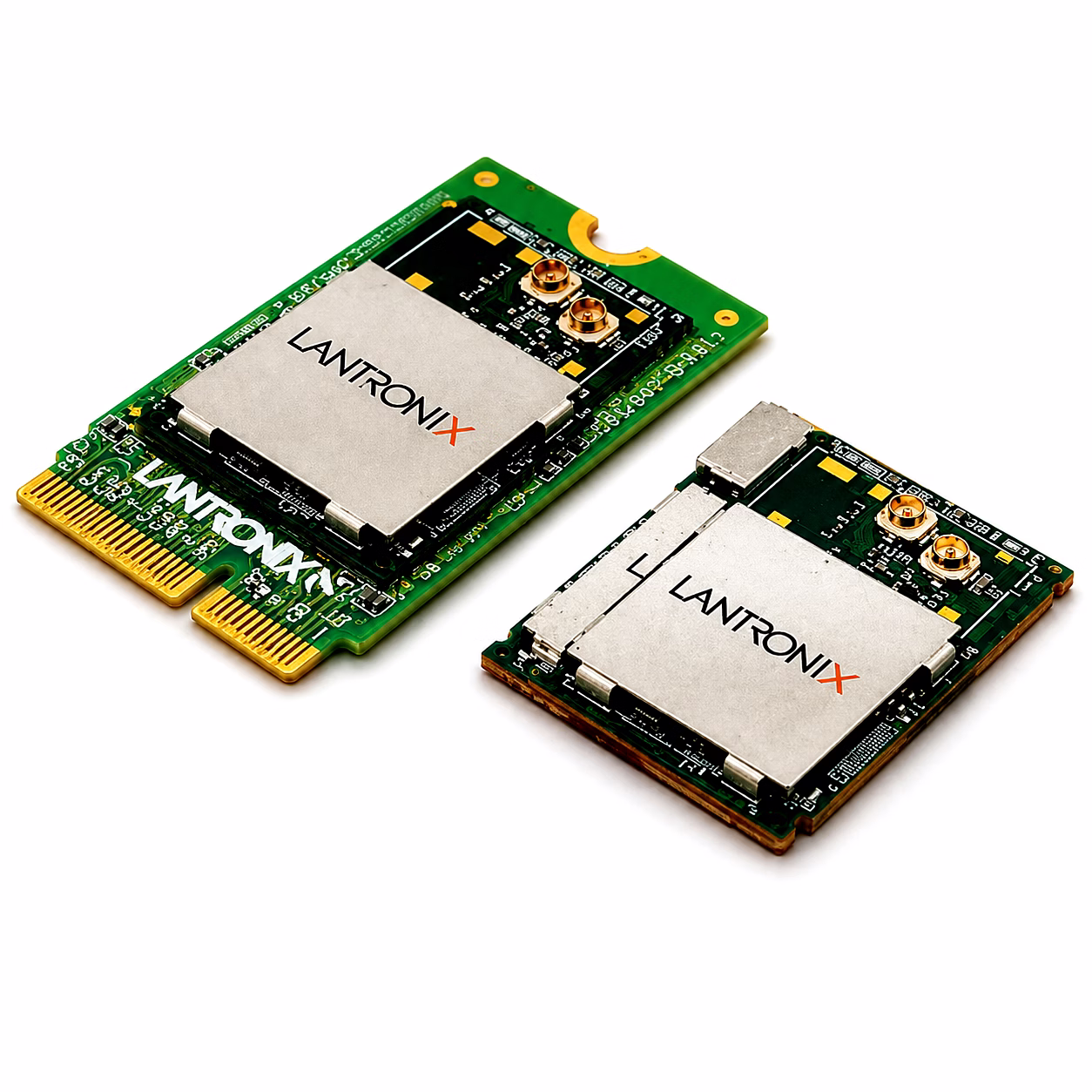

The Lantronix xPico 250 Embedded Wi-Fi + Bluetooth IoT Gateway is a compact, high-performance wireless communication module designed specifically for industrial and embedded IoT applications. It integrates dual-band Wi-Fi (IEEE 802.11 a/b/g/n), dual-mode Bluetooth 4.2 (Classic and BLE), and Ethernet capabilities in a small SMT form factor of 17 mm × 25 mm × 2 mm. This embedded gateway enables secure, reliable, and flexible connectivity for industrial equipment, medical devices, retail systems, and other connected hardware operating in demanding environments. Featuring industrial-grade temperature tolerance from −40°C to +85°C and a low power 3.3 VDC input, the xPico 250 supports both network co-processor and wireless microcontroller operation modes through an SDK for easy system integration. Integrated with the Lantronix Percepxion cloud-based device management platform, it offers centralized monitoring and control of distributed IoT deployments, streamlining management and enhancing security. Automatic wireless network management, concurrent Soft AP, and client modes provide uninterrupted operations in complex network settings. The gateway’s embedded security framework includes secure boot, encrypted configurations, firmware over-the-air updates, and role-based access control to protect critical device communication. Overall, the Lantronix xPico 250 is an ideal embedded wireless gateway solution for manufacturers and developers seeking robust, scalable, and secure connectivity for their embedded industrial IoT systems.

Key Features

Features	Description
Wireless Connectivity	Dual-band Wi-Fi (2.4 GHz & 5 GHz) supporting IEEE 802.11 a/b/g/n
Bluetooth Support	Dual-mode Bluetooth 4.2 with Classic (BR/EDR) and Low Energy (BLE)
Ethernet Interface	Integrated IEEE 802.3 MAC with 10Base-T and 100Base-T support
Operating Temperature	Industrial range from −40°C to +85°C
Power Input	3.3 VDC
Form Factor	Compact SMT module size 17 mm × 25 mm × 2 mm (LGA footprint)
Operating Modes	Network co-processor and wireless microcontroller modes via SDK
Security Features	Secure boot, encrypted configuration, FOTA updates, role-based access control
Cloud Platform Integration	Pre-integrated with Lantronix Percepxion IoT edge management
Concurrent Wireless Operation	Supports simultaneous Soft AP and client mode

Attributes	Description
Brand	Lantronix
Model	xPico 250 Embedded IoT Gateway
Wi-Fi Standards	IEEE 802.11 a/b/g/n, dual-band 2.4 GHz & 5 GHz
Bluetooth Version	Bluetooth 4.2 (BR/EDR & BLE)
Ethernet Support	IEEE 802.3 MAC, 10Base-T and 100Base-T
Operating Temperature Range	−40°C to +85°C
Input Voltage	3.3 VDC
Module Dimensions	17 mm × 25 mm × 2 mm (LGA SMT footprint)
Wireless Network Management	Automatic connection management for industrial environments
SDK Support	Allows operation as network co-processor or wireless microcontroller
Security	Secure boot, encrypted configuration, FOTA, role-based access
Cloud Integration	Lantronix Percepxion platform for device monitoring and management

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Product Reviews

Be the first to write a review

Review this product

Your Rating *Clear

Your Review *

Add an Image

Can the Lantronix xPico 250 operate as both a network co-processor and a wireless microcontroller?

Yes, the xPico 250 supports operation in both network co-processor and wireless microcontroller modes via its provided SDK, enabling versatile system integration.

What security measures are included in the xPico 250 to protect IoT device communications?

The xPico 250 incorporates secure boot, encrypted configuration, firmware-over-the-air updates, and role-based access control to ensure secure and protected device communication.

Is the Lantronix xPico 250 suitable for harsh industrial environments?

Yes, it is rated for an industrial operating temperature range of −40°C to +85°C, making it suitable for demanding environmental conditions.

Does the module support concurrent wireless modes like Soft AP and client simultaneously?

Yes, the xPico 250 supports concurrent Soft AP and client modes, allowing wireless device access without interrupting ongoing operations.

How does the xPico 250 integrate with IoT management platforms?

It is pre-integrated with the Lantronix Percepxion cloud-based IoT edge device management platform for centralized monitoring, configuration, and telemetry.

Incorporation Type
GST
GST Registration Date
Number of Employees
Import Export Code (IEC)
Year of Establishment
Nature of Business
GlobalLinker Member Since

Brand: rfnt

Country Of Origin: India

Lantronix xPico 250 embedded Wi-Fi and Bluetooth IoT gateway designed for industrial wireless connectivity and embedded networking applications. The compact gateway enables Ethernet, Wi-Fi, and Bluetooth communication within embedded systems while supporting secure device connectivity and centralized device management.

Features:

Dual-band Wi-Fi connectivity supporting IEEE 802.11 a/b/g/n wireless standards.

Dual-mode Bluetooth supporting Bluetooth Classic and Bluetooth Low Energy communication.

Integrated Ethernet connectivity enabling wired and wireless networking for embedded devices.

Supports operation as a network co-processor or wireless microcontroller.

Automatic wireless network connection management for industrial environments.

Concurrent Soft AP and client mode for wireless device access without disrupting operations.

Pre-integrated with Lantronix Percepxion cloud-based IoT edge management platform.

Attributes:

Brand: Lantronix.

Product model: xPico 250 embedded IoT gateway.

Wireless standards: IEEE 802.11 a/b/g/n with dual-band 2.4 GHz and 5 GHz.

Bluetooth specification: Bluetooth 4.2 with BR/EDR and BLE support.

Ethernet support: IEEE 802.3 MAC with 10Base-T and 100Base-T.

Operating temperature range: −40°C to +85°C industrial grade.

Input voltage: 3.3 VDC.

Compact module dimensions: 17 mm × 25 mm × 2 mm (LGA footprint).

Embedded Wireless Connectivity for IoT Devices

Lantronix xPico 250 provides embedded wireless connectivity designed for industrial IoT devices and connected equipment. The gateway integrates Wi-Fi, Ethernet, and Bluetooth communication to support secure device networking within embedded systems.

Compact Embedded Gateway Architecture

The compact SMT footprint allows the module to be integrated directly into embedded hardware designs. This enables manufacturers to add networking capabilities to industrial devices without developing complex communication drivers.

Flexible System Integration Options

The gateway can operate as a network co-processor or as a wireless microcontroller using the provided SDK. These integration modes allow developers to manage IoT communications while reducing load on the host microcontroller.

Secure Device Connectivity Framework

The platform includes built-in security features such as secure boot, encrypted configuration, firmware-over-the-air updates, and role-based access control to help protect device communication and configuration data.

Industrial Wireless Performance

Dual-band Wi-Fi and Bluetooth connectivity support reliable communication across industrial and enterprise environments. Automatic network connection management enables devices to maintain wireless connectivity within complex deployments.

Centralized Device Management

The gateway integrates with Lantronix Percepxion software platform for device monitoring, configuration, and telemetry management across distributed IoT deployments.

Frequently Asked Questions

What is the Lantronix xPico 250 used for? The xPico 250 is an embedded IoT gateway designed to provide Wi-Fi, Ethernet, and Bluetooth connectivity for industrial and embedded devices.

Which wireless standards are supported? The device supports IEEE 802.11 a/b/g/n Wi-Fi and Bluetooth 4.2 including both Classic and BLE modes.

Can the module be integrated into embedded systems? Yes, the compact SMT footprint allows the gateway to be integrated into embedded hardware designs.

What management platform supports the device? The gateway integrates with the Lantronix Percepxion cloud-based device management platform.

Does the gateway support Ethernet connectivity? Yes, the device supports IEEE 802.3 Ethernet communication alongside wireless connectivity.

What operating temperature range is supported? The gateway supports an industrial operating temperature range of −40°C to +85°C.

What power input does the module require? The module operates using a 3.3 VDC input voltage.

Where is the xPico 250 typically used? The gateway is commonly used in industrial automation, medical devices, retail systems, and resource management equipment.
