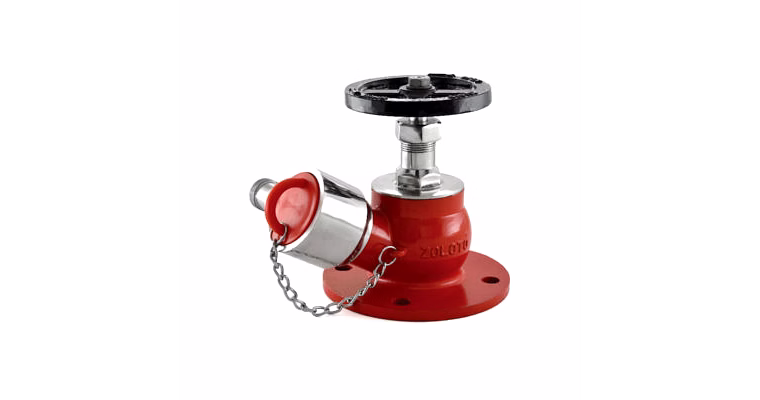

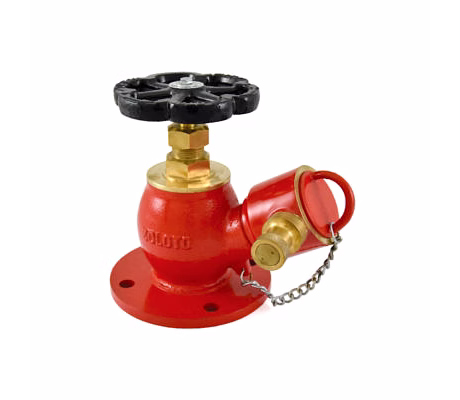

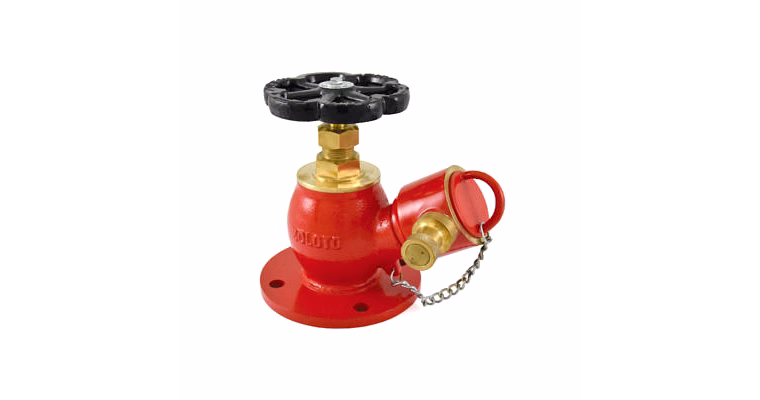

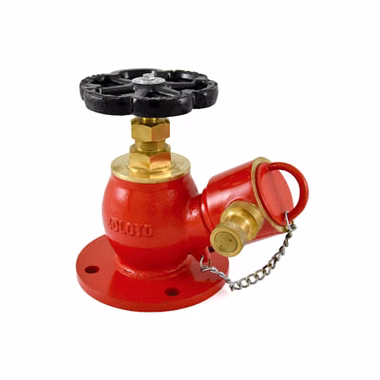

The Landing Valve (Fire Hydrant Valve) is engineered for excellence and safety, conforming to the Design Standard IS 5290 Type A specifications. It features a robust screwed-in bonnet complemented with an instantaneous coupling for swift outlet access. This valve boasts PTFE Gland Packing which ensures durability and smooth operation of the stem, perfect for frequent usage. The large flow way area facilitates optimal water flow, while the elastomer seat guarantees leakage-proof performance. It is equipped with a blank cap designed for easy mounting of water pipes, ensuring operational readiness in emergency situations. Constructed from high-quality stainless steel and other materials, the valve is designed for lifelong rust-free service, making it a dependable choice for fire safety management. The sample valve is rated to withstand hydrostatic test pressures of 21 kg/cm²g (300 psig) for the shell and 14 kg/cm²g (200 psig) for the seat, with a maximum working temperature of 110°C. With its well-engineered components, including a stainless steel body and carbon steel chains, this valve is resilient against the rigors of fire safety demands.
Key Features
| Features | Description |
|---|---|
| Compliance with Standards | IS 5290 Type A |
| Material Quality | Stainless Steel IS 3444 Gr. 1 |
| Gland Packing | PTFE for lasting performance |
| Flow Efficiency | Large flow way area for full water flow |
| Leakage Prevention | Elastomer seat provides leakage-proof operation |
| Temperature Tolerance | Maximum working temperature of 110°C |
| Rust Resistance | Lifelong rust-free service |
| Quick Coupling Design | Instantaneous coupling with single outlet |
| Hydrostatic Test Pressure | Shell: 21 kg/cm²g, Seat: 14 kg/cm²g |
| Attributes | Description |
|---|---|
| Test Pressure (Hydrostatic) | Shell: 21 kg/cm²g, Seat: 14 kg/cm²g |
| Maximum Working Temperature | 110°C |
| Size (Inches) | 3" |
| Size (mm) | 80 mm |
| ØA | 75 mm |
| ØB | 200 mm |
| C +3 | 12 mm |
| D ~ | 230 mm |
| ØE ~ | 150 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The landing valve is primarily constructed from high-quality stainless steel IS 3444 Gr. 1 and is complemented with carbon steel components for durability.
The elastomer seat ensures a leak-proof seal, preventing any water leaks and enhancing the valve's reliability during fire emergencies.
PTFE Gland Packing provides smooth operation of the valve stem and contributes to its longevity, making it ideal for frequent use in fire safety applications.
The maximum working temperature for the landing valve is 110°C, ensuring it can operate effectively under various environmental conditions.
Yes, the construction materials are designed for lifelong rust-free service, ensuring long-term durability and reliability in hazardous conditions.
Brand: zoloto
Country Of Origin: India
Design Standard IS 5290.
Confirming to Type A specification.
Screwed in Bonnet having instantaneous coupling with single outlet.
PTFE Gland Packing for longer life and smooth operation of stem.
Large flow way area to get full flow of water.
Leakage proof by virtue of elastomer seat.
Smooth operation of blank cap for quick mounting of water pipe.
Screwed in Bonnet having instantaneous coupling with single outlet.
PTFE Gland Packing for longer life and smooth operation of stem.
Large flow way area to get full flow of water.
Leakage proof by virtue of elastomer seat.
Smooth operation of blank cap for quick mounting of water pipe.
Life long rust free service.

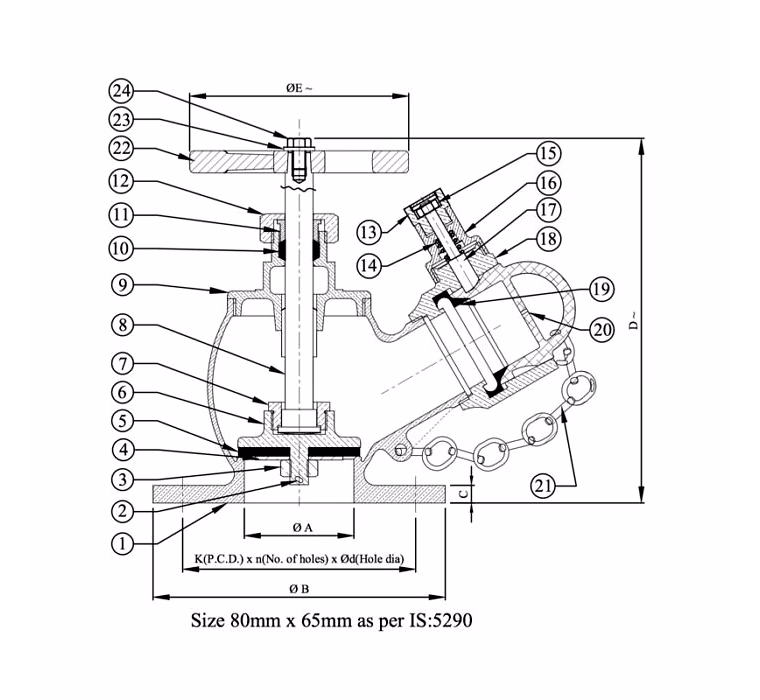

1 Body Stainless Steel IS 3444 Gr. 1 1
2 Chain Carbon Steel – – – 1
3 Disc Nylock Nut Carbon Steel – – – 1
4 Washer Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
Life long rust free service.
Test Pressure (Hydrostatic) :
Shell : 21 kg/cm²g (300 psig)
Seat : 14 kg/cm²g (200 psig)
Maximum Working Temperature : 110°C
Size (Inches) Size (mm) ØA ØB C +3 D ~ ØE ~
3 80 75 ***** 150
6 Disc Holder Stainless Steel IS 3444 Gr. 1 1
7 Check Nut Stainless Steel IS 3444 Gr. 1 1
8 Stem Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
9 Bonnet Stainless Steel IS 3444 Gr. 1 1
10 Gland Packing Asbestos Thread – – – –
11 Gland Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
12 Gland Nut Stainless Steel IS 3444 Gr. 1 1
13 Knob with Cap Stainless Steel IS 3444 Gr. 1 1
14 Spring Stainless Steel IS 4454 Part 4 Gr. 2 1
15 Cam Tooth Nut Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
16 Cam Housing Stainless Steel IS 3444 Gr. 1 1
17 Cam Tooth Stainless Steel IS 3444 Gr. 1 1
18 Instantaneous Coupling Stainless Steel IS 3444 Gr. 1 1
19 Washer Rubber IS 937 1
20 Blank Cap Aluminium / ABS Plastic IS 617 / – – – 1
21 Handwheel Cast Iron IS 210 Gr. FG 200 1
22 Washer Carbon Steel – – – 1
23 Nut Carbon Steel – – – 1
