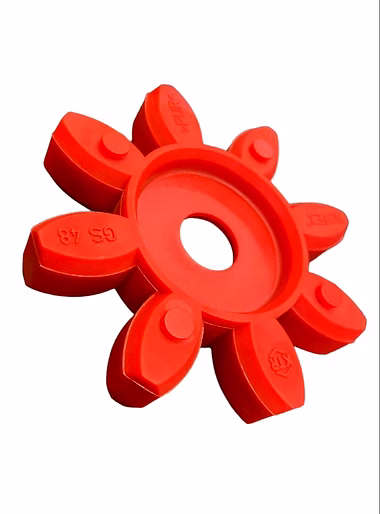

The KTR Rotex Spider GS-Series for Servo Application is a high-precision, backlash-free elastomer coupling designed specifically for servo drives in automation technology. Featuring a three-part construction, the ROTEX GS coupling efficiently damps vibrations while maintaining torsional stiffness, ensuring absolute accuracy for positioning tasks. Its design allows simultaneous compensation for radial, axial, and angular misalignments, making it ideal for highly dynamic servo drive systems. The modular construction kit system offers a wide variety of hub types with different Shore hardness elastomer spiders, providing an optimized coupling solution tailored to specific application needs. Hubs are available in either aluminum or steel, with frictionally engaged connections without keyways or positive-locking feather keyway options, enabling flexible installation and secure torque transmission. This coupling excels in scenarios requiring precise drive positioning combined with reliability and vibration reduction, making it a superior choice in automation and servo engineering applications.
Key Features
| Features | Description |
|---|---|
| Backlash-Free Design | Ensures precise positioning and eliminates backlash under prestress conditions. |
| Three-Part Elastomer Construction | Provides vibration damping while maintaining torsional stiffness. |
| Application Compatibility | Optimized for servo drives requiring high positioning accuracy in automation technology. |
| Compensation Capabilities | Simultaneously compensates for radial, axial, and angular displacements. |
| Modular Hub System | Wide range of hub types with interchangeable options within the same coupling size. |
| Hub Material Options | Available in aluminum or steel hubs depending on size and application requirements. |
| Connection Types | Frictionally engaged hubs without feather keyways or positive-locking hubs with feather keyways. |
| Shore Hardness Variants | Elastomer elements offered in various hardness levels to suit different torque and damping needs. |
| High Torsional Stiffness | Maintains drive precision without sacrificing vibration dampening performance. |
| Attributes | Description |
|---|---|
| Product Type | Backlash-Free Elastomer Coupling for Servo Applications |
| Series | ROTEX GS-Series |
| Coupling Construction | Three-part elastomer (Spider) design |
| Backlash | Backlash-free under prestress |
| Compensation | Radial, axial, and angular displacement |
| Hub Materials | Aluminum or Steel |
| Connection Types | Frictional engagement (no keyway) and positive-locking feather keyway |
| Recommended Applications | Precision servo drives in automation technology |
| Vibration Damping | Yes, through elastomer spider element |
| Torsional Stiffness | High torsional stiffness ensuring accuracy |
| Modular System | Interchangeable hubs within one coupling size |
| Available Shore Hardness | Multiple elastomer hardness options |
| Operating Temperature Range | Typically -40°C to +100°C (subject to elastomer type) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the ROTEX GS coupling simultaneously compensates radial, axial, and angular misalignments, ensuring reliable performance in dynamic servo drive applications.
Hubs for the ROTEX GS coupling are available in aluminum or steel. The choice depends on the coupling size and application requirements, balancing weight and strength.
The coupling offers two options: frictionally engaged hubs without feather keyways and positive-locking hubs with feather keyways, allowing flexible installation choices.
The elastomer spider provides backlash-free torque transmission while damping vibrations and maintaining high torsional stiffness required for precise servo positioning.
Absolutely, the ROTEX GS coupling is designed to maintain precision under high dynamic loads thanks to its backlash-free and torsionally stiff characteristics.
Country Of Origin: Germany
ROTEX GS is a three-part servo coupling (elastomer coupling) backlash-free under prestress. The different hub types and various kinds of Shore hardness provide the optimum coupling for every application in automation technology.
It is used wherever drives have to be positioned accurately. Despite their vibration-damping properties, the coupling is torsionally stiff so that you do not have to cut back on precision even with highly dynamic servo drives. The ROTEX GS backlash-free elastomer couplings allow for simultaneous compensation of radial, axial, and angular displacements.
The backlash-free servo coupling ROTEX GS uses the construction kit system, it is available in a high variance of different hub types which can be combined within one coupling size.
The choice of the hub material depends on the size and the hub is either made of aluminium or steel. Both frictionally engaged connections without feather keyways and positive-locking connections with feather keyways are available.
