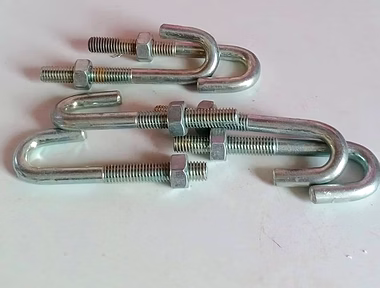

The J-Type Foundation Bolt is a sturdy fastening solution designed specifically for embedding into concrete foundations to ensure strong anchoring of industrial equipment, steel structures, and heavy machinery. Manufactured in compliance with IS 5624, DIN, and ASTM standards or customized as per customer drawings, these bolts feature a distinctive J-bend (hooked end) that provides enhanced grip within concrete. Available with full or partial metric/UNC/UNF threading, the foundation bolts come in a broad range of diameters (M12 to M48) and lengths (150mm to 2000mm), supporting tailored specifications for diverse construction needs. Crafted from premium materials like Mild Steel, Carbon Steel (Grades 4.6, 5.6, 8.8), Stainless Steel (SS 304/316), and Alloy Steel (on request), these bolts are finished with options including Hot Dip Galvanizing, Zinc Plating (White/Yellow), Self Color/Black, or Primer Coating for enhanced corrosion resistance and durability. Ideal for applications in industrial sheds, power plants, substations, infrastructure projects, and heavy equipment foundations, the J-Type Foundation Bolt ensures reliable and robust anchoring to withstand demanding environments and heavy loads.
Key Features
| Features | Description |
|---|---|
| Shape | J-Bend (Hooked End) for superior concrete grip |
| Thread Type | Metric / UNC / UNF - Full or Partial Thread options |
| Material Options | Mild Steel, Carbon Steel (Grades 4.6, 5.6, 8.8), Stainless Steel (SS 304/316), Alloy Steel (on request) |
| Finish Options | Hot Dip Galvanized, Zinc Plated (White/Yellow), Self Color/Black, Primer Coated for concrete embedding |
| Size Range | Diameter M12 to M48 (1/2” to 2”), Length 150mm to 2000mm, customizable bend & thread length |
| Standards Compliance | IS 5624, DIN, ASTM standards or customer drawing compliance |
| Application Areas | Industrial sheds, steel structures, machinery foundations, power plants, substations, infrastructure anchoring |
| Customization | Bend length, thread length, size, and material tailored as per project requirements |
| Attributes | Description |
|---|---|
| HS Code | 7318.15.00 |
| Material Grades | Mild Steel, Carbon Steel (4.6, 5.6, 8.8), SS 304, SS 316, Alloy Steel (optional) |
| Thread Type | Metric, UNC, UNF - Full/Partial Thread |
| Bolt Shape | J-Type (Hooked End) |
| Finish Type | Hot Dip Galvanized, Zinc Plated (White/Yellow), Self Color/Black, Primer Coated |
| Size Range - Diameter | M12 to M48 (approx. 1/2” to 2”) |
| Size Range - Length | 150mm to 2000mm (customizable) |
| Standards | IS 5624, DIN, ASTM or as per customer drawing |
| Application | Concrete embedding, heavy machinery, steel structure foundation bolts |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, both the thread length and bend length of the J-Type foundation bolt can be customized as per the specific needs of the project to ensure optimal anchoring.
J-Type foundation bolts are available in Mild Steel, Carbon Steel (Grades 4.6, 5.6, 8.8), Stainless Steel SS 304 / SS 316, and Alloy Steel options are available upon request.
Available finishes include Hot Dip Galvanized, Zinc Plated (White/Yellow), Self Color/Black, and Primer Coated specifically for concrete embedding to protect against corrosion.
Yes, the bolts conform to IS 5624, DIN, and ASTM standards or can be manufactured according to customer drawings ensuring high quality and compatibility.
Diameters range from M12 to M48 (approximately 1/2” to 2”) and lengths vary from 150mm up to 2000mm, with customization available to meet project demands.
They are widely used for anchoring industrial sheds, steel structures, machinery foundations, power plants, substations, and other civil infrastructure requiring strong concrete embedment.
Country Of Origin: India
Product Name: J-Type Foundation Bolt
HS Code: 7318.15.00
Standard: As per IS 5624 / DIN / ASTM or customer drawing
Shape: J-Bend (Hooked End)
Thread Type: Metric / UNC / UNF – Full or Partial Thread
Material Options:
Finish Options:
Size Range:
Applications
