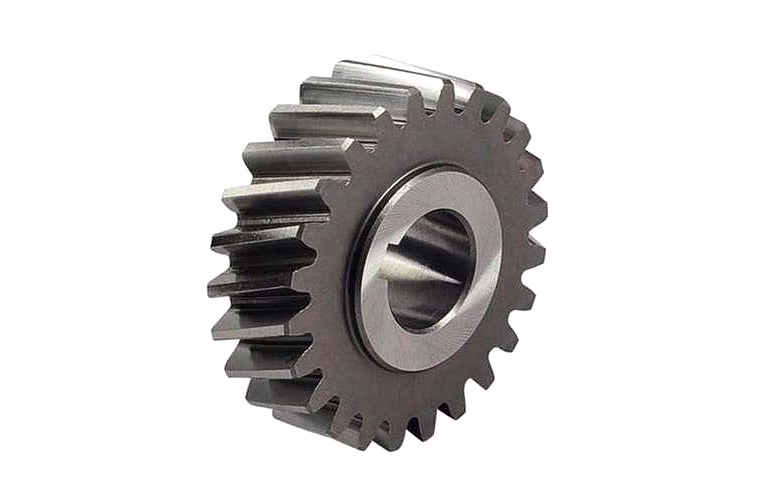

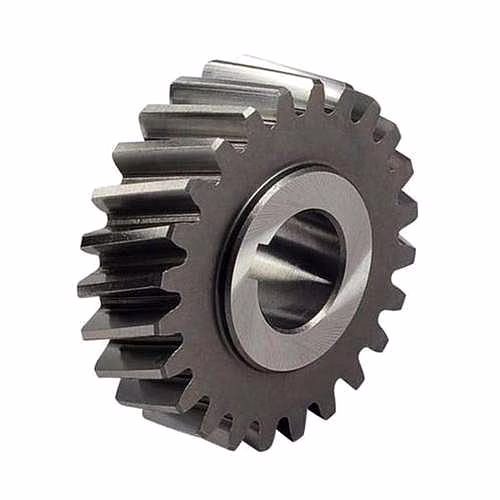

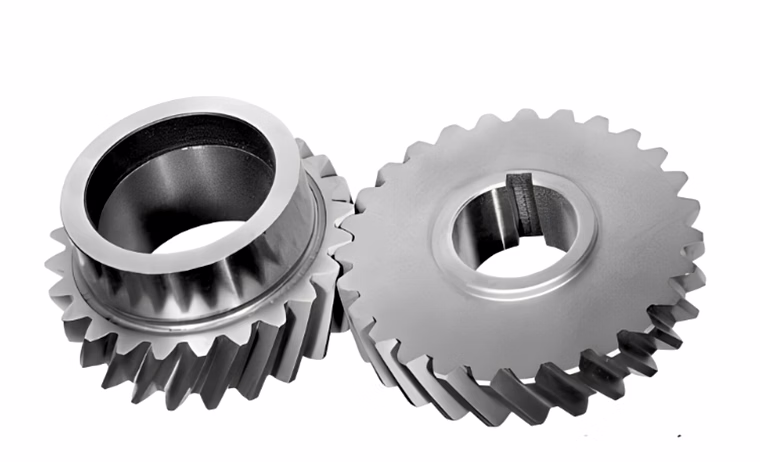

Helical Gears are precision-engineered mechanical components predominantly used in power transmission systems to provide smooth, efficient, and quiet operation. Unlike spur gears, the teeth of Helical Gears are cut at an angle to the gear axis, which allows gradual engagement and disengagement of teeth, reducing noise and vibration. These gears are commonly manufactured from high-strength alloys and undergo heat treatment processes to enhance durability and wear resistance. Helical Gears are ideal for high-speed applications and can handle larger loads compared to spur gears due to their angled teeth design. Their ability to transmit motion between parallel or non-parallel shafts makes them highly versatile in industrial machinery, automotive transmissions, conveyors, and heavy-duty equipment. The precise machining ensures minimal backlash, improving operational efficiency and component lifespan.
Key Features
| Features | Description |
|---|---|
| Tooth Design | Angled teeth for gradual engagement reducing noise and vibration |
| Material | High-strength alloy steel with heat treatment for enhanced durability |
| Load Capacity | Capable of handling high loads due to increased tooth surface contact |
| Application | Suitable for parallel and crossed shaft transmissions |
| Operational Speed | Ideal for high-speed and heavy-duty applications |
| Precision | Manufactured with high-precision CNC machining to ensure optimal fit and minimal backlash |
| Noise Level | Low noise operation compared to spur gears |
| Durability | Heat-treated for wear resistance and extended service life |
| Attributes | Description |
|---|---|
| Gear Type | Helical Gear |
| Material | Alloy Steel (e.g., AISI 4140, 8620) |
| Module | Varies as per customer requirement |
| Pressure Angle | Typically 20° |
| Helix Angle | Usually between 15° to 30° depending on design |
| Surface Treatment | Heat treated, carburized or nitrided |
| Shaft Orientation | Parallel and crossed shaft compatibility |
| Customization | Available upon request for specific tooth profile and dimensions |
| Coating | Optional anti-corrosion coatings available |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Helical Gears are made from high-strength alloy steels such as AISI 4140 or 8620, which undergo heat treatment processes like carburizing or nitriding to enhance hardness and wear resistance.
Yes, the Helical Gears can be customized for various tooth profiles, modules, helix angles, and dimensions to suit different industrial requirements and machinery specifications.
The helix angle usually ranges between 15° and 30°, depending on the design specifications to optimize load capacity and smooth operation.
Yes, Helical Gears are versatile and can transmit motion efficiently between both parallel and crossed (non-parallel) shafts.
Helical Gears offer smoother and quieter operation due to angled teeth engagement, higher load capacity from increased tooth surface contact, and are suitable for high-speed applications compared to Spur Gears.
Country Of Origin: India
