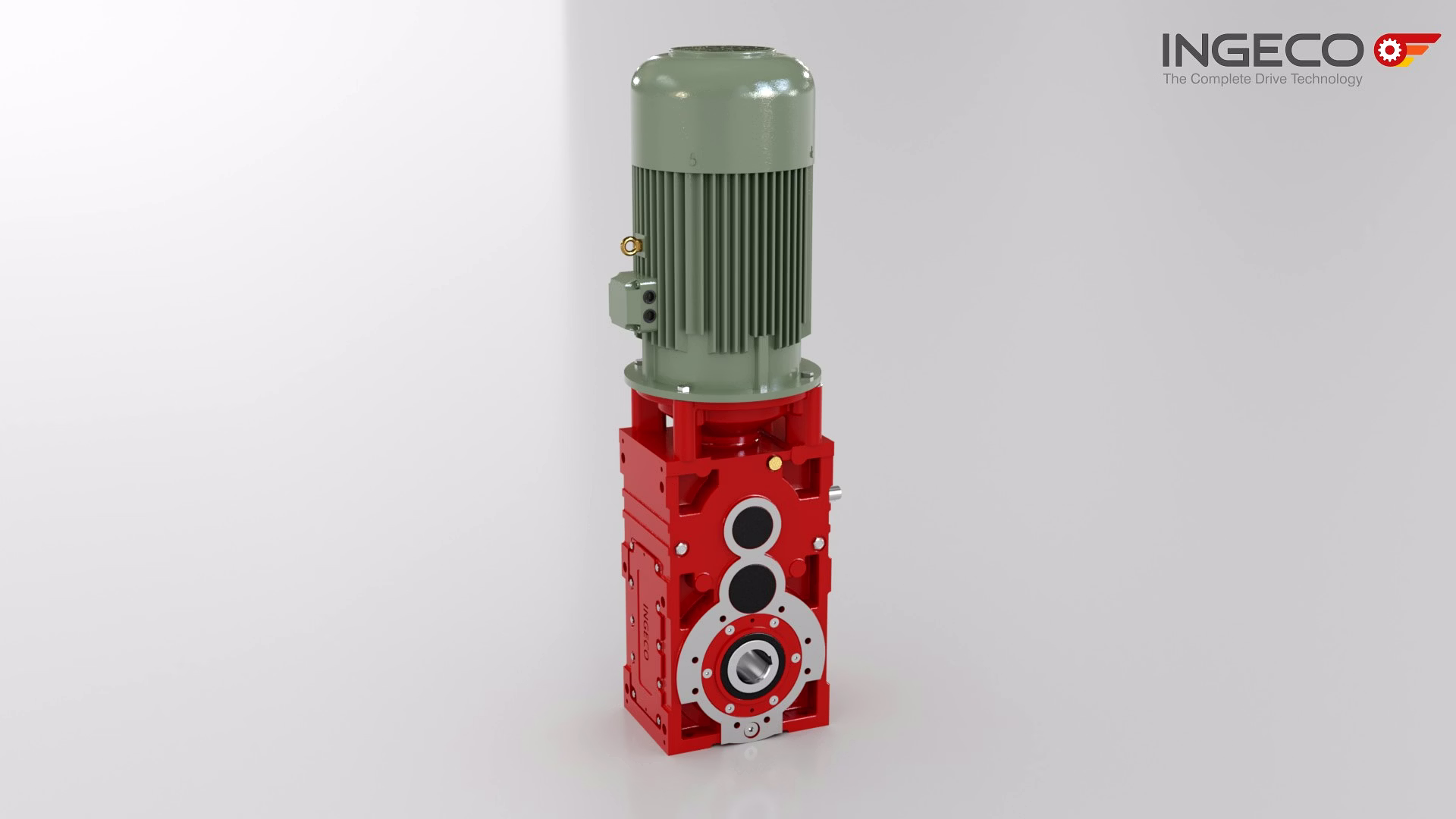

The Heli-Bevel Gearbox is a precision-engineered mechanical device designed to transmit power efficiently between intersecting shafts at right angles. Utilizing helical and bevel gear combinations, this gearbox ensures smooth and quiet operation with high torque capacity. It is ideal for industrial applications requiring reliable angular power transmission, such as conveyors, mixers, crushers, and heavy machinery. Constructed with robust housing and high-quality alloy steel gears, the Heli-Bevel Gearbox offers durability, high efficiency, and minimal maintenance. Its compact design facilitates easy integration into existing equipment, while its optimized gear geometry reduces vibration and noise, ensuring operational stability and longevity under demanding conditions.
Key Features
| Features | Description |
|---|---|
| Gear Type | Combination of Helical and Bevel Gears |
| Torque Capacity | High torque transmission capability |
| Operation Angle | Right angle (90 degrees) power transmission |
| Noise Level | Low noise operation due to optimized gear design |
| Material | High-grade alloy steel gears with robust cast iron housing |
| Durability | Designed for heavy-duty industrial operations |
| Maintenance | Low maintenance requirements with sealed lubrication |
| Mounting | Compact and versatile mounting options for various configurations |
| Efficiency | High mechanical efficiency with minimal power loss |
| Application | Suitable for conveyors, mixers, crushers, and other heavy machinery |
| Attributes | Description |
|---|---|
| Input Shaft Speed | Up to 3000 RPM |
| Output Shaft Speed | Dependent on gear ratio configuration |
| Gear Ratios | Available from 1:1 to 1:100 |
| Housing Type | Cast iron / Steel |
| Lubrication | Sealed grease or oil bath lubrication options |
| Mounting Orientation | Flexible - horizontal and vertical mounting capabilities |
| Temperature Range | -20°C to +120°C |
| Protection Rating | IP54 or higher available on request |
| Weight | Varies based on model and size – from 20kg to 500kg+ |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Industries such as mining, material handling, cement manufacturing, and heavy machinery rely on the Heli-Bevel Gearbox for efficient right-angle power transmission.
Yes, it supports a wide range of gear ratios from 1:1 to 1:100, allowing customization based on specific application requirements.
The gearbox is available with sealed grease lubrication or oil bath lubrication depending on the operational demands.
The gearbox supports input speeds up to 3000 RPM, suitable for most industrial applications requiring high-speed operation.
Its helical and bevel gear combination is designed to optimize tooth engagement, minimizing vibration and noise during operation.
Country Of Origin: India
