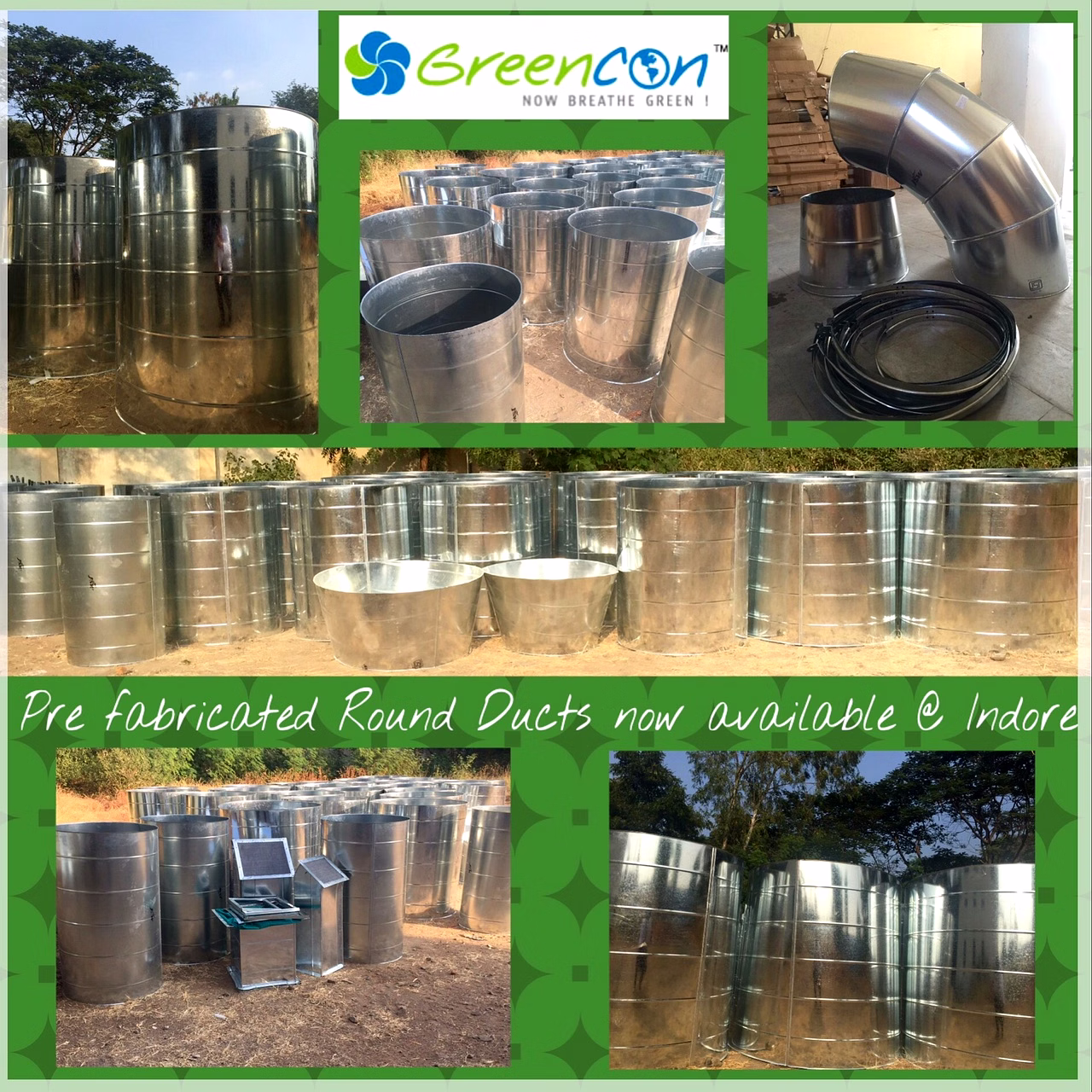

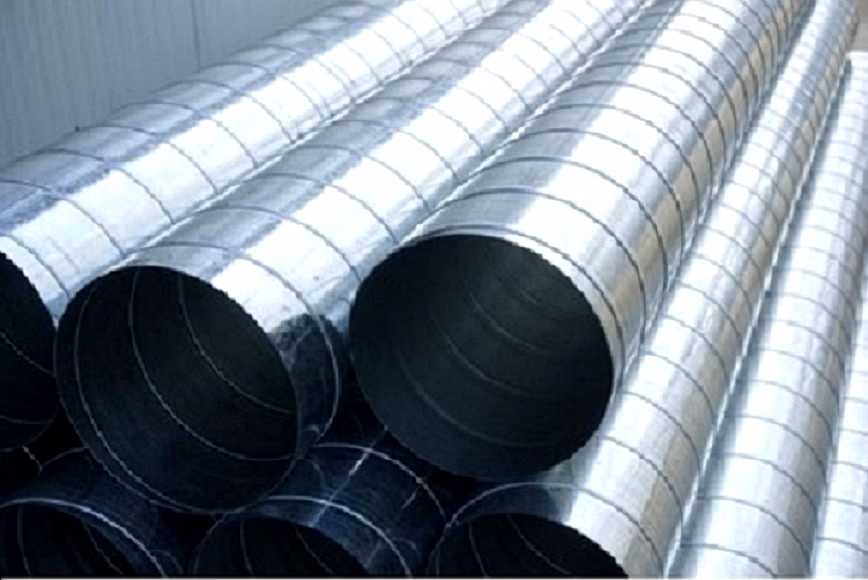

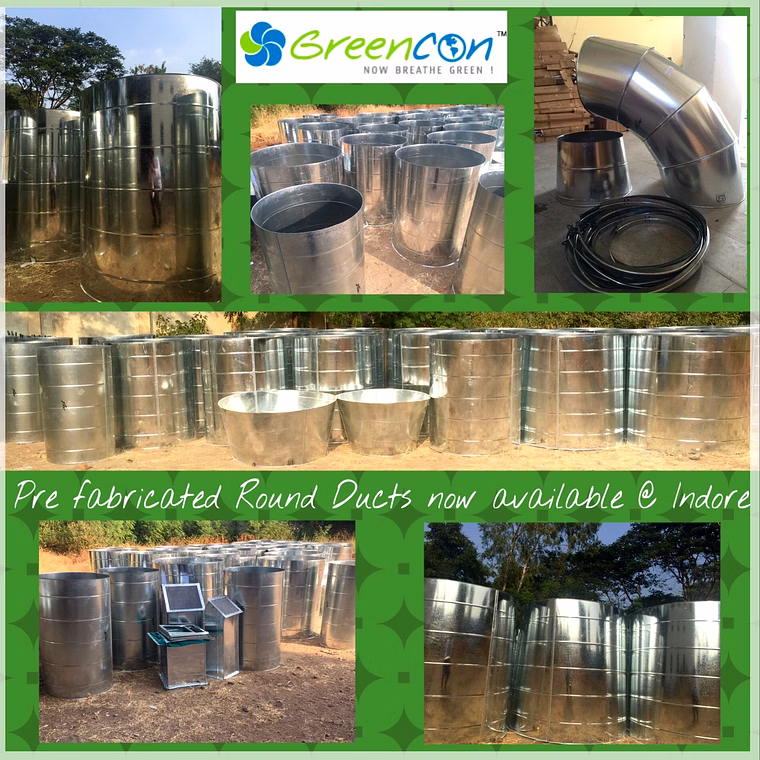

Greencon Pre-fabricated GI Ducting SPIRAL ROUND (22G) by DEGREE DAY PRIVATE LIMITED is a premium quality galvanised iron spiral round duct fabricated using 22 gauge (0.8mm) thick GI sheets from top manufacturers like Tata and JSW. Designed for robust HVAC and ventilation applications, this duct offers exceptional durability, corrosion resistance, and precision engineering to ensure optimal airflow with minimal leakage. Manufactured with hot-dip galvanized steel sheets, the product guarantees superior strength and long-lasting performance even in demanding industrial environments. The spiral round design enhances structural integrity and simplifies installation, while all joints are gasket-sealed to maintain leak-proof connections and maximize system efficiency. Supplied pre-fabricated for quick deployment, this duct comes with test certificates assuring compliance and reliability. It is ideal for commercial and industrial ventilation systems, kitchen exhaust configurations, and clean room environments requiring sturdy, corrosion-resistant ductwork. Custom solutions are available to match specific client design and size requirements.
Key Features
| Features | Description |
|---|---|
| Material Type | Galvanized Iron (GI) |
| Duct Shape | Spiral Round |
| Sheet Thickness | 22 Gauge (0.8mm) |
| Manufacturing Process | Hot-dip galvanized steel sheets |
| Corrosion Resistance | High - Hot dip galvanizing |
| Leak-proof Joints | Gasket sealed joints |
| Source of Raw Material | Premium brand - Tata, JSW |
| Customization | Available on request for size and shape |
| Certification | Test certificates provided |
| Application | HVAC, Kitchen exhaust, Clean rooms |
| Attributes | Description |
|---|---|
| Gauge | 22G (0.8 mm) |
| Material | Galvanized Iron |
| Duct Type | Pre-fabricated Spiral Round |
| Sheet Source | Tata, JSW |
| Finish | Hot-dip galvanized coating |
| Joint Type | Gasket sealed for leak-proof |
| MOQ | 1 Square Feet |
| Unit of Measure | Square Feet |
| Applications | HVAC, Industrial ventilation, Kitchen exhaust, Clean room |
| Test Certificates | Provided |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
They are fabricated using premium hot-dip galvanized iron sheets of 22 gauge thickness, providing excellent durability, corrosion resistance, and structural integrity needed for demanding industrial HVAC applications.
Yes, all duct joints are gasket sealed which minimizes air leakage, enhancing system efficiency and reducing energy losses.
Yes, DEGREE DAY PRIVATE LIMITED offers customization options for size and shape of the spiral round GI ducts to meet specific project requirements.
Each duct is supplied with relevant test certificates confirming adherence to quality, performance, and durability standards.
Although primarily galvanized iron, the company also fabricates ducts from other materials for clean rooms and kitchen exhaust. The GI spiral ducts are mainly recommended for robust ventilation and HVAC systems.
We specialize in fabricating high-quality ducts using premium materials from renowned brands such as Tata, JSW, etc. Our product range includes:
Material Type
Stainless Steel (SS) ducts
Aluminum ducts
Mild Steel (MS) ducts
Galvanized
Iron (GI) ducts
We offer ducts in various shapes and
sizes to meet specific client requirements:

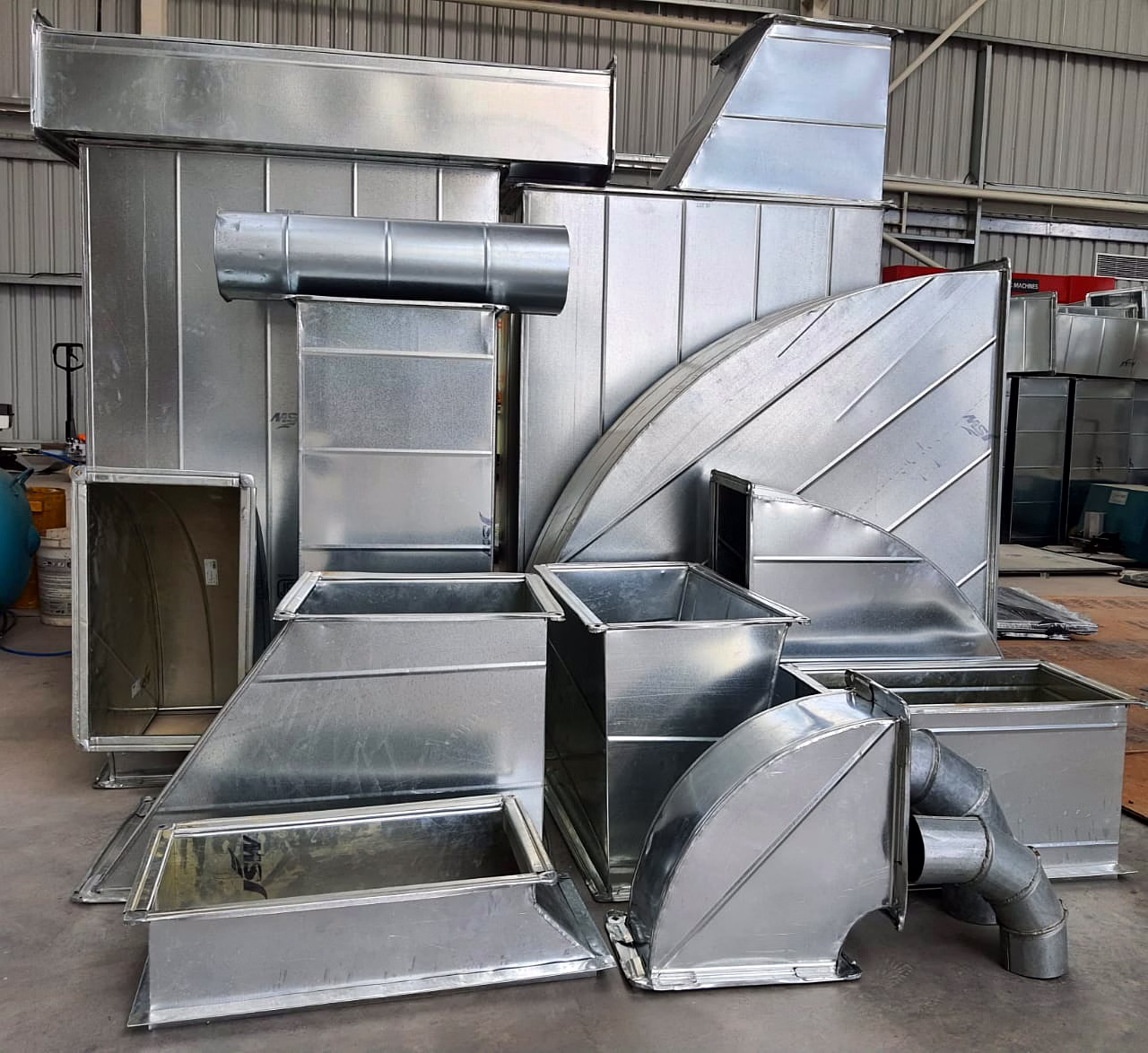

Geometric Type
Rectangular ducts
Plain Round ducts
Plain Oval ducts
Spiral Round ducts
Spiral Oval ducts
Flange Type
C & S Drive cleats (“C”) & Slip cleats (“S”) / Slip Joint
TDF (Transverse Duct Flange)
Angle Flange ( MS angle Flange )
Inner Coupling for Round / Oval Duct
Outer Coupling for Round Duct
Finish and Thickness
GSM - 80, 120, 180, 275 etc
Thickness - 0.5mm (26G), 0.6MM(24g), 0.8mm (22G), 1.0MM(20G), 1.2 MM(18G), 1.5 MM(16G)
All
ducts shall be Pre-fabricated out of best quality galvanized steel
sheets, conforming to standards. The sheets used shall be produced by
the hot dip process and galvanizing, ensuring superior durability and
corrosion resistance.
To ensure a leak-proof system, all
joints shall be equipped with gaskets, minimizing air leakage and
maximizing system efficiency. We provide test certificates for all
our ducts, guaranteeing their performance, durability, and safety.
Quality and customer satisfaction are our top priorities.
We also specialize in providing customized duct solutions for:
Kitchen Exhaust Systems: MS welded ducts with fire-resistant paint
Clean
Room Applications: Aluminium ducts for OT (Operating Theater) and
other clean room environments
Our expertise in
fabricating ducts for various industries and applications ensures
that our clients receive high-quality products that meet their
specific
needs.
