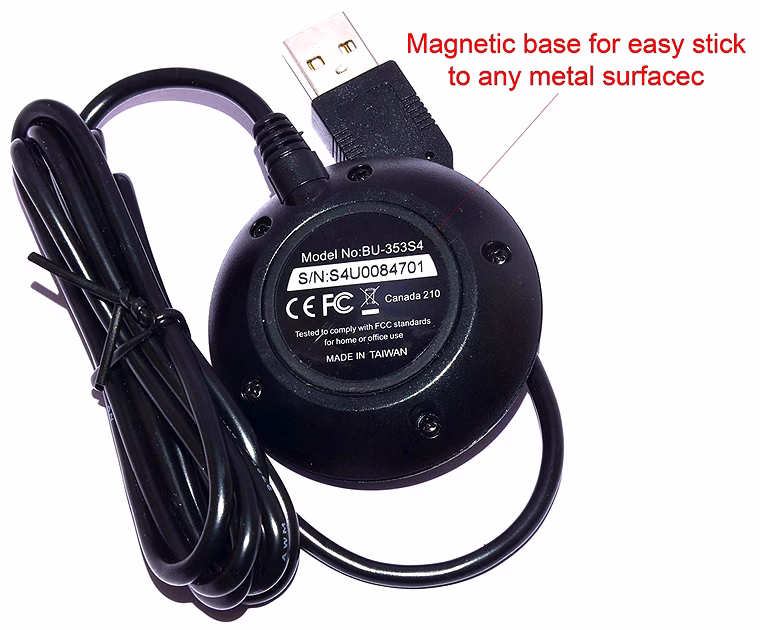

The GlobalSat BU-353S4 Cable USB GPS Receiver is a high-performance, compact GPS receiver designed for a broad range of professional applications. Featuring the advanced SiRF Star IV GSD4e chipset, it offers exceptional accuracy with horizontal position precision under 2.5 meters (2D RMS) and a high sensitivity of -163dBm. The device operates on the 1575.42 MHz L1 frequency band and supports 48 channels, ensuring reliable satellite reception even in challenging environments. Its waterproof and magnetic mounting design makes it suitable for marine environments, aviation, and commercial uses including police, fire trucks, utility vehicles, and buses. The active patch antenna and non-slip base contribute to stable placement and superior signal acquisition. Supporting NMEA 0183 and SiRF binary protocols, the BU-353S4 provides versatile connectivity and compatibility with most GPS software. With a rapid acquisition time (hot start in 8 seconds) and velocity tracking accuracy within 0.1 m/sec, this USB GPS receiver is an excellent choice for businesses needing precise and dependable location data integration into their systems.
Key Features
| Features | Description |
|---|---|
| GPS Chipset | SiRF STAR IV GSD4e |
| Frequency | L1, 1575.42 MHz |
| Number of Channels | 48 |
| Sensitivity | -163 dBm |
| Position Accuracy | < 2.5 meters (2D RMS) |
| Waterproof Rating | Waterproof with magnetic mounting |
| Mounting Type | Magnetic mount with non-slip base |
| Data Protocols Supported | NMEA 0183 (v3.0), SiRF binary |
| Acquisition Time | Hot start: 8 sec, Warm start: 35 sec, Cold start: 35 sec |
| Output Data | GGA, GSA, GSV, RMC, VTG, GLL |
| Operating Environment | Marine, Aviation, Commercial vehicles, Utilities, Emergency services |
| Velocity Accuracy | 0.1 m/sec (95% SA off) |
| Altitude Limit | Up to 18,000 meters (60,000 feet) |
| Attributes | Description |
|---|---|
| GPS Chipset Model | SiRF STAR IV GSD4e |
| Frequency Band | L1 (1575.42 MHz) |
| C/A Code Chip Rate | 1.023 MHz |
| Number of Channels | 48 |
| Sensitivity | -163 dBm |
| Positioning Accuracy | < 2.5 meters (2D RMS) with SBAS enabled |
| Velocity Accuracy | 0.1 m/sec (95%, SA off) |
| Time Accuracy | 1 micro-second synchronized to GPS time |
| Datum | WGS-84 |
| Acquisition Time Hot Start | 8 seconds (average) |
| Acquisition Time Warm Start | 35 seconds (average) |
| Acquisition Time Cold Start | 35 seconds (average) |
| Reacquisition Time | 0.1 seconds (average) |
| Protocols Supported | NMEA 0183 v3.0, SiRF Binary |
| Dynamic Conditions | Acceleration Limit < 4g, Altitude Limit 18,000m, Velocity Limit 515 m/s |
| Interface | USB cable connection |
| Water Resistance | Waterproof, suitable for marine environment |
| Mounting | Magnetic mount with non-slip bottom |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the BU-353S4 supports SBAS, including WAAS enabled for enhanced positional accuracy in North America.
Yes, the receiver is waterproof and features a magnetic mount with a non-slip base, making it ideal for use on vehicles such as police cars, fire trucks, and utility buses in various weather conditions.
It supports the standard NMEA 0183 protocol (version 3.0) and SiRF binary protocol, enabling compatibility with a wide range of GPS-related software and applications.
The GPS receiver typically acquires a hot start in about 8 seconds, warm start in 35 seconds, and cold start in approximately 35 seconds.
It can operate effectively up to an altitude of 18,000 meters (60,000 feet) and velocity up to 515 meters per second (around 1,000 knots), suitable for aviation and high-speed applications.
Brand: globalsat
Country Of Origin: Taiwan
The GlobalSat BU-353S4 Cable USB GPS Receiver is a genuine, high-quality product at the best online price. Equipped with SiRF STAR IV GSD4e GPS chipset, it offers precise positioning capabilities.
Navigate with confidence using the GlobalSat BU-353S4 Cable USB GPS Receiver featuring SiRF STAR IV GSD4e chipset. With a frequency of L1, 1575.42 MHZ and 48 channels, this receiver provides reliable and accurate location information.
The C/A Code of 1.023 MHz and exceptional sensitivity of -163dBm ensure optimal signal reception even in challenging environments. Stay connected and informed wherever your journey takes you.
Built to withstand rugged conditions, this GPS receiver is a durable companion for your outdoor adventures. Its compact size and convenient USB interface make it a versatile choice for various applications.
