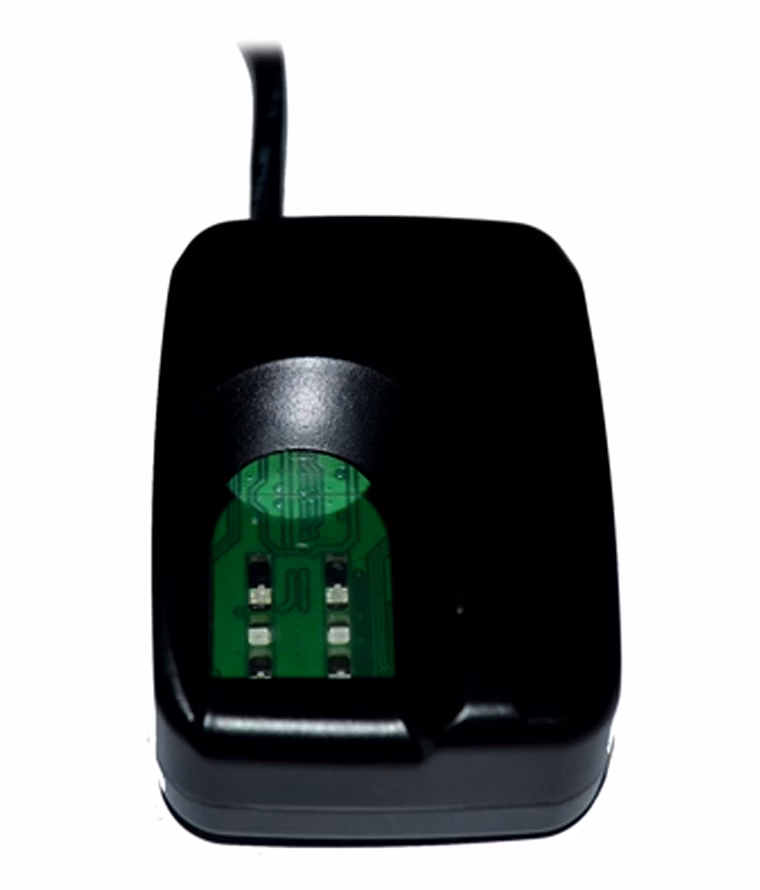

The Futronics FS80H Fingerprint Scanner is a high-performance biometric device designed specifically for DMIT (Dermatoglyphics Multiple Intelligence Test) and other fingerprint recognition applications. Featuring advanced CMOS sensor technology and a precision optical system, the FS80H captures clear, undistorted raw fingerprint images at an impressive speed of 100 milliseconds per scan. Its durable 14mm thick crown glass scanning window enhances reliability and robustness, outperforming traditional semiconductor fingerprint sensors. Equipped with 4 infrared LEDs, the scanner dynamically adjusts light intensity to handle varying finger conditions such as wet, dry, or blurred, ensuring optimal image quality. A critical security feature is its built-in Live Finger Detection (LFD) which distinguishes live fingers from fake replicates like silicone or rubber, preventing spoofing attacks. Compatible across a wide range of platforms including Windows, Linux, Mac OS, Windows CE, and Android, the FS80H comes with USB 2.0 plug-and-play interface and comprehensive APIs for seamless integration into existing biometric systems. Compact and lightweight, it is ideal for businesses and professionals requiring reliable, fast, and secure biometric fingerprint capture for DMIT assessments or other identity verification needs.
Key Features
| Features | Description |
|---|---|
| Fingerprint Scanning Window | 16 x 24 mm crown glass with 14mm thickness for durability |
| Image Resolution | 320 x 480 pixels at 500 DPI |
| Image Format | 8-bit 256 grayscale raw fingerprint image |
| Live Finger Detection (LFD) | Built-in electronic circuit rejects fake fingers made from silicone, rubber, etc. |
| Scan Speed | Captures fingerprint image in approximately 100 milliseconds |
| Light Source | 4 Infrared LEDs with automatic intensity adjustment |
| Interface | USB 2.0 compatible with plug-and-play functionality |
| Compatibility | Supports Windows XP and later, Linux (2.4+ kernel), Mac OS 10.5+, Windows CE, Android 3.1+ USB Host |
| Physical Dimensions | 64 x 48 x 27 mm; Weight: 120 grams |
| Operating Temperature | -10°C to +55°C |
| Power Consumption | Active <700mW, Standby <200mW, Sleep <2.5mW |
| ESD Protection | 8KV contact and 16KV air discharge protection |
| Attributes | Description |
|---|---|
| Sensor Technology | Advanced CMOS sensor with precise optical system |
| Scanning Speed | 100ms per fingerprint capture |
| Live Finger Detection | Yes, included with standard software |
| USB Cable Length | 2 meters standard USB cable |
| Operating Systems Supported | Windows XP/2003/Vista/7/8/10 (32 & 64 bit), Linux Kernel 2.4+, Mac OS 10.5+, Windows CE 5.0/6.0, Android 3.1+ |
| Power Supply | DC 4.5-5.5V via USB port |
| Weight | 120 grams |
| Dimensions (LxWxH) | 64mm x 48mm x 27mm |
| Image File Size | Approx. 150 KB raw fingerprint image |
| Device Interface | USB 2.0 Plug and Play |
| Operating Temperature Range | -10°C to +55°C |
| ESD Protection Levels | Contact 8KV, Air 16KV |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the FS80H comes with a built-in electronic circuit that performs Live Finger Detection (LFD), rejecting fake fingers made from silicone, rubber, or similar materials when used with the appropriate PC software.
The FS80H supports Windows XP/2003, Vista/2008/2012, Windows 7/8 (both 32 and 64 bit), Linux with kernel 2.4 or higher, Mac OS versions 10.5, 10.6, 10.7 on Intel CPU, Windows CE 5.0 and 6.0, and Android 3.1 or higher with USB Host port.
The device employs 4 infrared LEDs whose light intensity is automatically adjusted based on the characteristics of the fingerprint being scanned (wet, dry, blurred) to optimize the quality of the captured fingerprint image.
The FS80H measures 64 x 48 x 27 mm and weighs 120 grams, making it compact and lightweight, suitable for both desktop and mobile applications.
Yes, the FS80H USB drivers and API support Linux and Windows CE platforms running on both x86 and ARM9 architectures.
Brand: futronics
Country Of Origin: Hong Kong S.A.R.
The Futronic FS80H Fingerprint Scanner is a cutting-edge USB2.0 scanner with an advanced CMOS sensor for high-quality fingerprint capture. It features Live Finger Detection technology and works seamlessly with various platforms & DMIT Software.
The Futronic FS80H USB2.0 Fingerprint Scanner utilizes state-of-the-art CMOS sensor technology to produce exceptionally clear fingerprint images. It boasts a rapid 100ms capture speed, making it ideal for a wide range of fingerprint recognition applications.
Built with a robust crown glass finger scanning window, the FS80H offers superior reliability compared to traditional semiconductor fingerprint sensors. Its 4 infra-red LEDs adjust light intensity to optimize image quality based on varying fingerprint characteristics.
This scanner includes Live Finger Detection (LFD) technology to ensure only genuine, live fingerprints are captured. Futronic provides USB drivers and APIs for seamless integration across multiple platforms like Windows, Linux, macOS, and Android, boosting security and adaptability.
