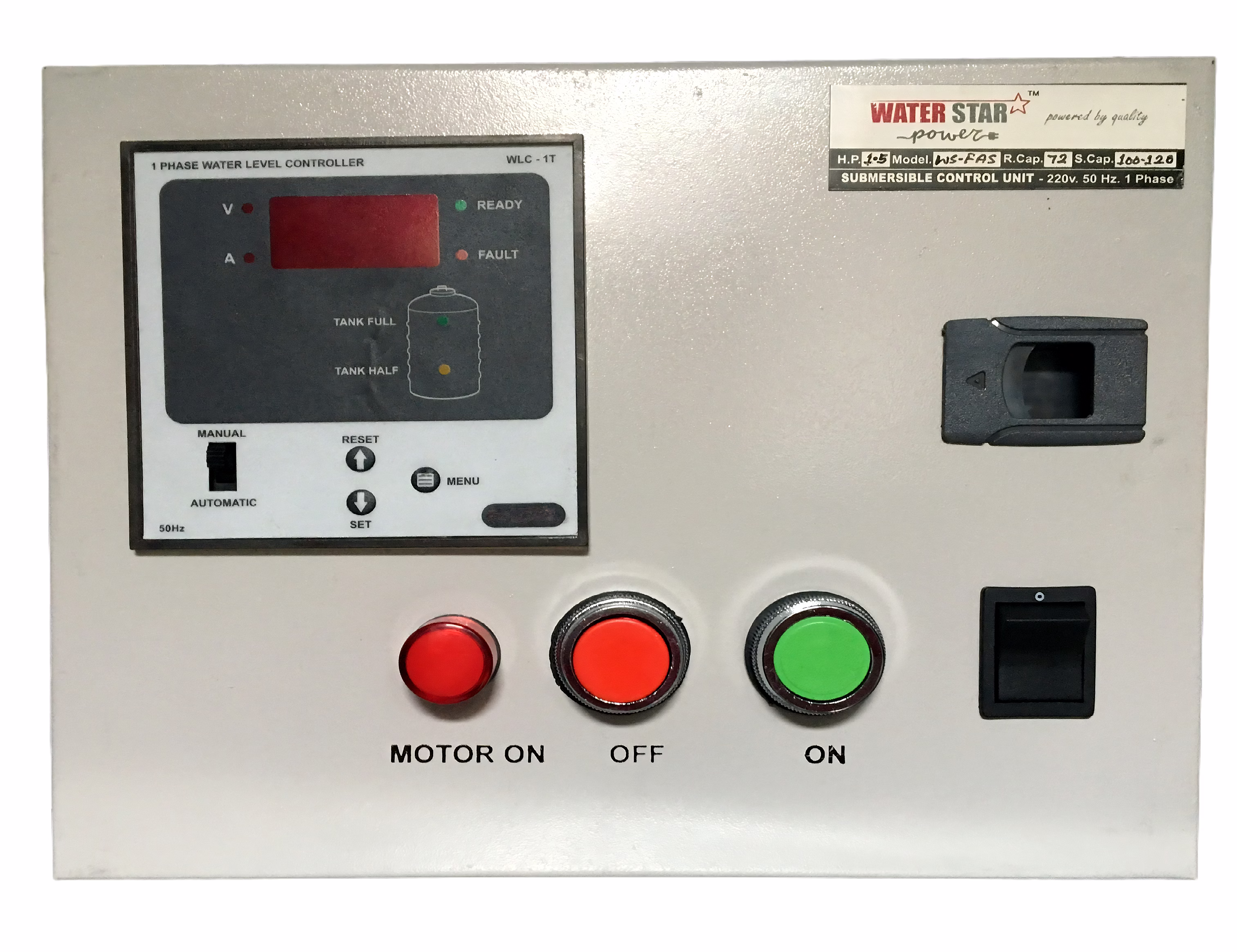

The Fully Automatic Submersible Panel with Water Level Controller is a state-of-the-art electrical control panel designed for efficient and automated operation of submersible water pumps. This product is ideal for industrial, agricultural, and commercial water pumping applications that require precise water level management without manual intervention. The panel integrates advanced electronic circuitry to automatically start and stop the submersible pump based on the water level signals received from sensors installed in the tank or borewell. It helps in preventing dry running of the pump and overflow situations, thereby saving energy and extending pump life. The panel is equipped with robust safety features such as overload protection, short circuit protection, and phase failure indication, ensuring reliable and safe operation. Its user-friendly interface and compact design facilitate easy installation and maintenance. This fully automatic system enables seamless water management in borewell and water tank setups, enhancing operational efficiency for users in farming, manufacturing, and municipal water supply sectors.
Key Features
| Features | Description |
|---|---|
| Automation | Fully automatic control for submersible pump operation based on water level |
| Water Level Control | Integrated water level sensors to start/stop pump to prevent dry run and overflow |
| Protection Features | Includes overload, short circuit, and phase failure protection |
| Compatibility | Suitable for borewell and tank water pumping systems |
| Ease of Use | Simple interface for easy installation and maintenance |
| Durability | Rugged construction for long-lasting performance in various environments |
| Energy Efficiency | Reduces energy consumption by automating pump operation |
| Safety | Safe operation ensured through multiple electrical protections |
| Application | Ideal for agricultural irrigation, industrial water systems, and municipal water management |
| Attributes | Description |
|---|---|
| Input Voltage | 220V/230V AC, Single Phase |
| Output Voltage | 220V AC |
| Pump Type Supported | Submersible pumps up to 5 HP |
| Control Type | Fully automatic with water level sensors |
| Protection | Overload relay, short circuit breaker, low voltage and phase failure protection |
| Material | ABS plastic or metal enclosure (depending on model) |
| Dimensions | Standard panel size approx. 300mm x 200mm x 150mm |
| Installation | Wall mounting with easy wiring terminals |
| Water Level Sensors | Float switch or probe-type sensors compatible |
| Operating Temperature | 0°C to 50°C |
| Certifications | ISI mark or equivalent electrical safety certification (varies by manufacturer) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This specific model supports submersible pumps up to 5 HP. For pumps above 5 HP, customized or higher capacity panels should be considered.
The panel is compatible with float switch sensors and probe-type water level sensors that provide on/off signals for automatic pump control.
Yes, the integrated water level controller automatically stops the pump when the water level is low to prevent dry running and potential pump damage.
This panel is designed primarily for single-phase 220V/230V systems. For three-phase systems, appropriate version or separate panels should be selected.
The panel includes overload protection, short circuit breaker, and phase failure detection to ensure safe and reliable pump operation.
