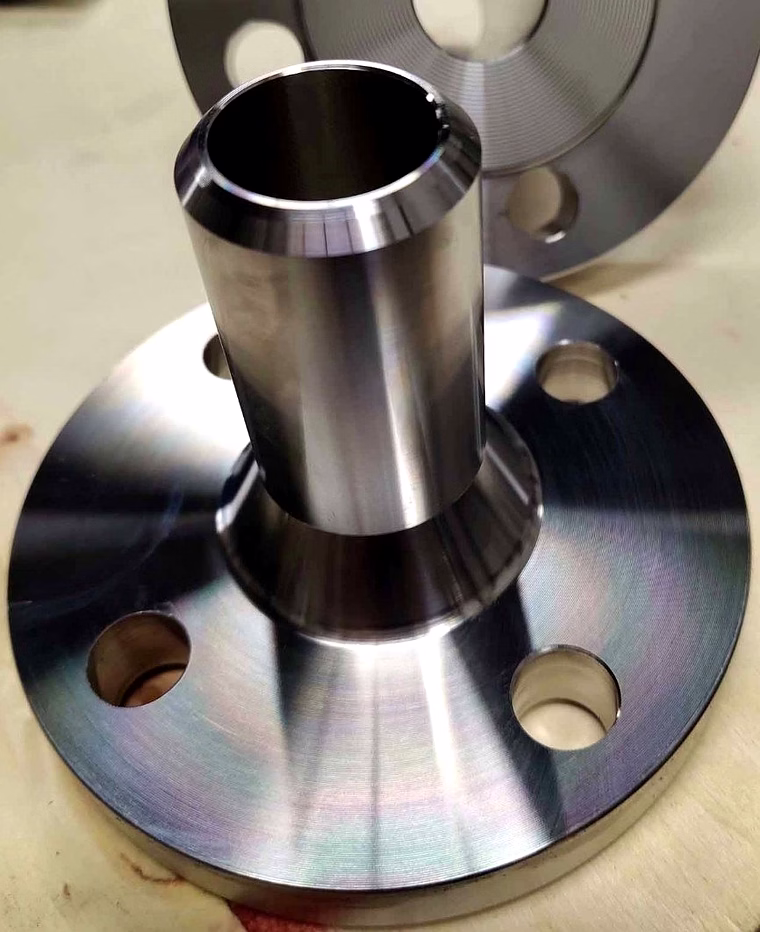

Forged Steel Long Neck Flange – RF Face – ASME B16.5 – Industrial Applications

Name: Forged Steel Long Neck Flange – RF Face – ASME B16.5 – Industrial Applications
Brand: c-way
SKU: 8363881
Availability: InStoreOnly

Sold by c-way engineering exports · Manufacturer, Exporter · Hyderbad, Telangana, India

Price

Price on request

In stock

Minimum order: 1 unit

Export Snapshot

MOQ

1 unit

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HSN Code

On request

Origin

India

Port of dispatch

On request

Export markets served

NG +5 others

Values shown are for c-way engineering exports.

Chamber of Commerce

Suitable for

Importers · Distributors · Wholesalers

Hyderbad Dispatch on request FIEO member

c-way engineering exports

Manufacturer, Exporter · Hyderbad, Telangana, India

Engineering Machinery and Products. Cutting Tools, Hand Tools, Industrial Valves, Pneumatic Valve, Pump, Motor, Pulleys, Drive Belt, MS Flanges

Registered address: Hyderabad, India. Industry: Others > Other.

View profile All products

Established

Not shared

Employees

–

GST

36ACIPT5775H1ZZ

IEC code

Not shared

Export markets

NG +5 others

GlobalLinker Member Since

Jan 2022

Turnover

$5 MM - $10 MM

Incorporation Type

On request

Certifications & Awards

Chamber of Commerce Member of Federation Of Indian Export Organizations Member of Engineering Export Promotion Council, India Member of Chamber of Commerce and Industries, Telangana

Product details

What are the specifications of this product?

Overview

Advantages of Long Neck Joint Flange Enhanced Strength: The longer neck provides additional reinforcement to the pipe joint, improving its strength and resistance to pressure and temperature fluctuations. Reduced Welding Stress: The extended length of the neck reduces the proximity of the weld to the flange face, minimizing heat-affected zones and weld distortion during welding. Improved Flow Characteristics: The smooth transition between the pipe and the flange neck reduces flow turbulence and pressure drop, improving overall system efficiency. Versatility: Long neck weld flanges can accommodate a wide range of pipe sizes and pressure ratings, making them suitable for various industrial applications.

Product Description

Specification and Material

Flanges Types:Long Neck Flange

Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75

Size: 1/2? (15 NB) to 48? (1200 NB)

Standard: ANSI/ASME B16.5, ANSI/ASME B16.47 Series A and Series B, MSS SP44, ASA, API 605, API 6A, AWWA, As per Custom Drawings

Pressure Rating: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc

Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove

Grades

Stainless Steel: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Duplex Steel: ASTM/ASME A/SA 789, 790 � UNS NO S 31803, S 32205, S 32550, S 32750, S 32760.

Carbon Steel: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Alloys Steel Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Flanges: Duplex, Super Duplex, Nickel Alloys

Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/Surface Treatment: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Nickel Alloys: Nickel Alloys 200, Nickel Alloys 201

Hastelloy: Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G

Inconel: Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L

Description provided by c-way engineering exports.

Specifications

Flanges Types	Long Neck Flange
Class Ratings	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Sizes Available	1/2″ (15 NB) to 48″ (1200 NB)
Standards	ANSI/ASME B16.5, B16.47 Series A & B, MSS SP44, API 605
Pressure Rating	Class 150, 300, 400, 600... PN6 to PN64
Face Types	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Material Grades	ASTM A182, A105, A694, Duplex Steel, Stainless Steel...
Coating/Surface Treatment	Nickel Alloys and Hastelloy options available.

Use cases

Category	machinery and tools > tools and hardware > hardware fittings > flanges
Primary application	Wholesale, distribution, and international sourcing
Brand	c-way
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	1 unit
Lead time	On request
Payment terms	As per negotiated commercial agreement.

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Forged Steel Long Neck Flange – RF Face – ASME B16.5 – Industrial Applications. Answers compiled from verified sellers' commercial terms and platform data.

Q: What are the benefits of using Long Neck Flanges in pipeline systems?

A: Long Neck Flanges offer enhanced strength, reduced welding stress, improved flow characteristics, and versatility to accommodate various sizes and materials.

Q: What materials are available for Long Neck Flanges?

A: Available materials include stainless steel, carbon steel, duplex steel, and special alloys such as Inconel and Hastelloy.

Q: What standards do Long Neck Flanges adhere to?

A: They comply with ANSI/ASME B16.5, B16.47 Series A and B, MSS SP44, API 605, among others.

Q: Can Long Neck Flanges be customized for specific applications?

A: Yes, Long Neck Flanges can be manufactured according to custom drawings to meet specific application requirements.

Q: What pressure ratings are available for Long Neck Flanges?

A: Pressure ratings range from Class 150 to Class 2500 and correspond with PN ratings from PN6 to PN64.
