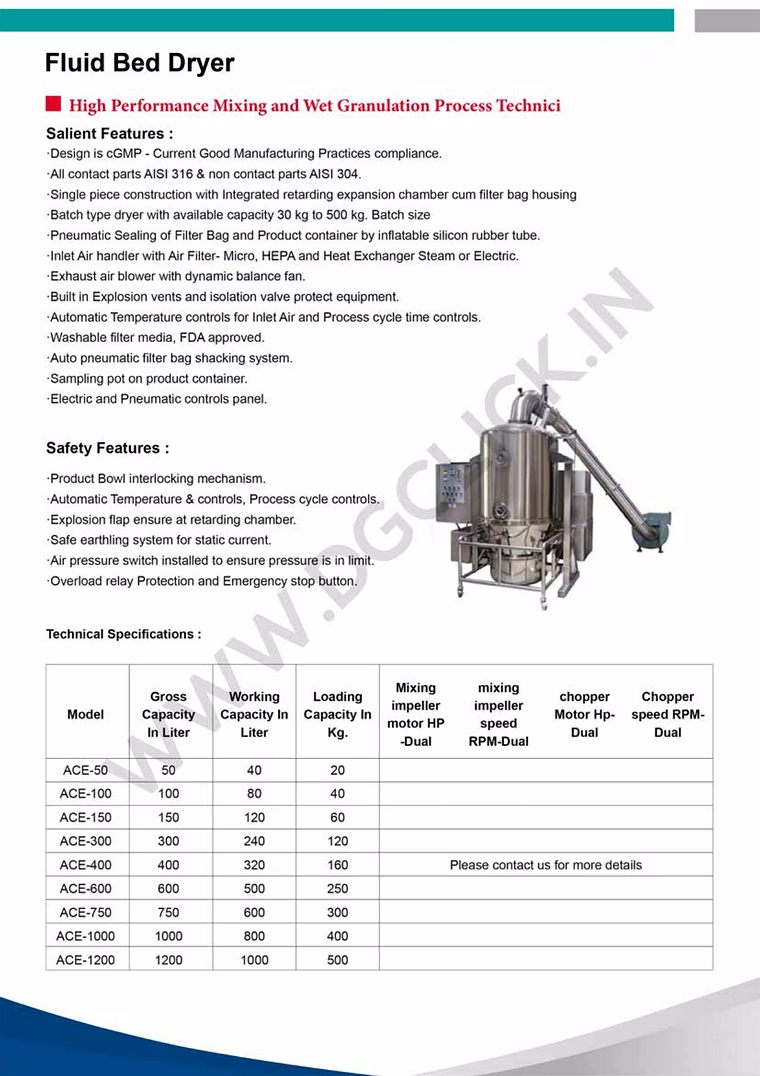

High Performance Mixing and Wet Granulation Process Technic

Salient Features :

•Design is cGMP - Current Good Manufacturing Practices compliance.

•All contact parts AISI 316 & non contact parts AISI 304.

•Single piece construction with Integrated retarding expansion chamber cum filter bag housing

•Batch type dryer with available capacity 30 kg to 500 kg. Batch size

•Pneumatic Sealing of Filter Bag and Product container by inflatable silicon rubber tube.

•Inlet Air handler with Air Filter- Micro, HEPA and Heat Exchanger Steam or Electric

•Exhaust air blower with dynamic balance fan.

•Built in Explosion vents and isolation valve protect equipment.

•Automatic Temperature controls for Inlet Air and Process cycle time controls.

•Washable filter media, FDA approved.

•Auto pneumatic filter bag shacking system.

•Sampling pot on product container.

•Electric and Pneumatic controls panel.

Safety Features :

•Product Bowl interlocking mechanism.

•Automatic Temperature & controls, Process cycle controls.

•Explosion flap ensure at retarding chamber.

•Safe earthling system for static current.

•Air pressure switch installed to ensure pressure is in limit.

•Overload relay Protection and Emergency stop button.
