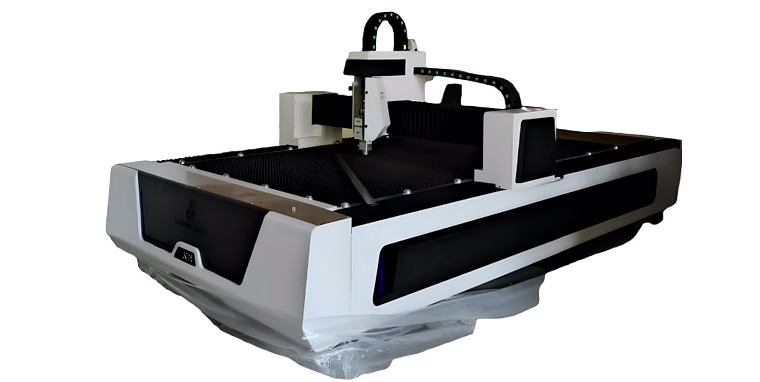

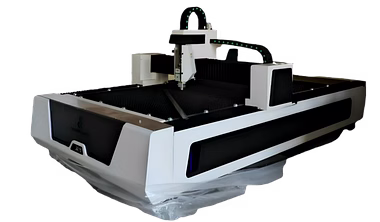

The Fiber Metal Laser Cutting Machine offers unparalleled precision and powerful performance tailored for industrial metal fabrication, signage cutting, and steel & aluminum component manufacturing. This advanced laser cutting system supports large cutting sizes up to 3000×1500 mm and laser powers ranging from 1000W to 3000W with trusted laser sources like RECI, MAX, RAYCUS, and IPG. Equipped with a Swiss Auto Focus BM110 laser head and high-end control systems such as CYPCUT2000 or FSCUT2000, the machine guarantees ultra-precise X and Y axis positioning accuracy of ±0.01 mm, enabling clean, detailed cuts at high speeds of up to 120 meters per minute. The machine cuts stainless steel up to 22mm thick and supports versatile file formats including PLT, DXF, DWG, AI, and LAS for seamless integration with design workflows. Complementary equipment like a water chiller, automatic oil pump, and servo motors by YASKAWA or FUJI enhance operational efficiency and reliability. This fiber laser cutting machine is ideal for businesses requiring precision, speed, and durability in their metal processing applications.
Key Features
| Features | Description |
|---|---|
| Cutting Size | Up to 3000×1500 mm |
| Laser Power | 1000W to 3000W (RECI / MAX / RAYCUS / IPG) |
| Laser Head | Auto Focus BM110 (Switzerland) |
| Control System | CYPCUT2000 / FSCUT2000 |
| Positioning Accuracy | Ultra-Precise ±0.01 mm (X, Y axes) |
| Max Cutting Speed | 120 meters per minute |
| Maximum Cutting Thickness | Up to 22mm stainless steel |
| Supported File Formats | PLT, DXF, DWG, AI, LAS |
| Included Accessories | Water chiller, automatic oil pump, YASKAWA/FUJI servo motors, advanced control panels |
| Attributes | Description |
|---|---|
| Machine Type | Fiber Laser Cutting Machine |
| Cutting Area | 3000 mm x 1500 mm |
| Laser Source Brands | RECI, MAX, RAYCUS, IPG |
| Laser Power Range | 1000W to 3000W |
| Laser Head Model | Auto Focus BM110 (Switzerland) |
| Control Systems | CYPCUT2000, FSCUT2000 |
| Positioning Accuracy | ±0.01 mm |
| Max Cutting Speed | 120 m/min |
| Max Cutting Thickness | 22mm stainless steel |
| Supported File Formats | PLT, DXF, DWG, AI, LAS |
| Cooling System | Water chiller |
| Lubrication System | Automatic oil pump |
| Servo Motors | YASKAWA / FUJI |
| Application Areas | Industrial metal fabrication, signage cutting, steel & aluminum component manufacturing |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The machine can cut stainless steel up to 22 mm thick with high precision.
Laser power options range from 1000W to 3000W, including high-quality laser sources such as RECI, MAX, RAYCUS, and IPG.
The machine supports PLT, DXF, DWG, AI, and LAS file formats for compatibility with popular CAD and design software.
This machine is equipped with CYPCUT2000 or FSCUT2000 control systems, offering advanced operation and reliable cutting performance.
It includes a water chiller for thermal management, an automatic oil pump for lubrication, and reliable servo motors from YASKAWA or FUJI for precision movement.
It provides ultra-precise positioning accuracy of ±0.01 mm on both X and Y axes for detailed and clean cuts.
Country Of Origin: India
Power Meets Precision. Performance Beyond Compare.
✔️ Cutting Size: Up to 3000×1500 mm
✔️ Laser Power: 1000W to 3000W (RECI / MAX / RAYCUS / IPG)
✔️ Laser Head: Auto Focus BM110 (Switzerland)
✔️ Control System: CYPCUT2000 / FSCUT2000
✔️ Ultra-Precise X, Y Positioning: ±0.01 mm
✔️ Max Speed: 120m/min | Cutting Thickness: Up to 22mm SS
✔️ Supports PLT, DXF, DWG, AI, LAS formats
🧱 Used In:
Industrial metal fabrication, signage cutting, steel & aluminum component manufacturing.
🌡 Includes water chiller, automatic oil pump, servo motors (YASKAWA / FUJI), and advanced control panels.
