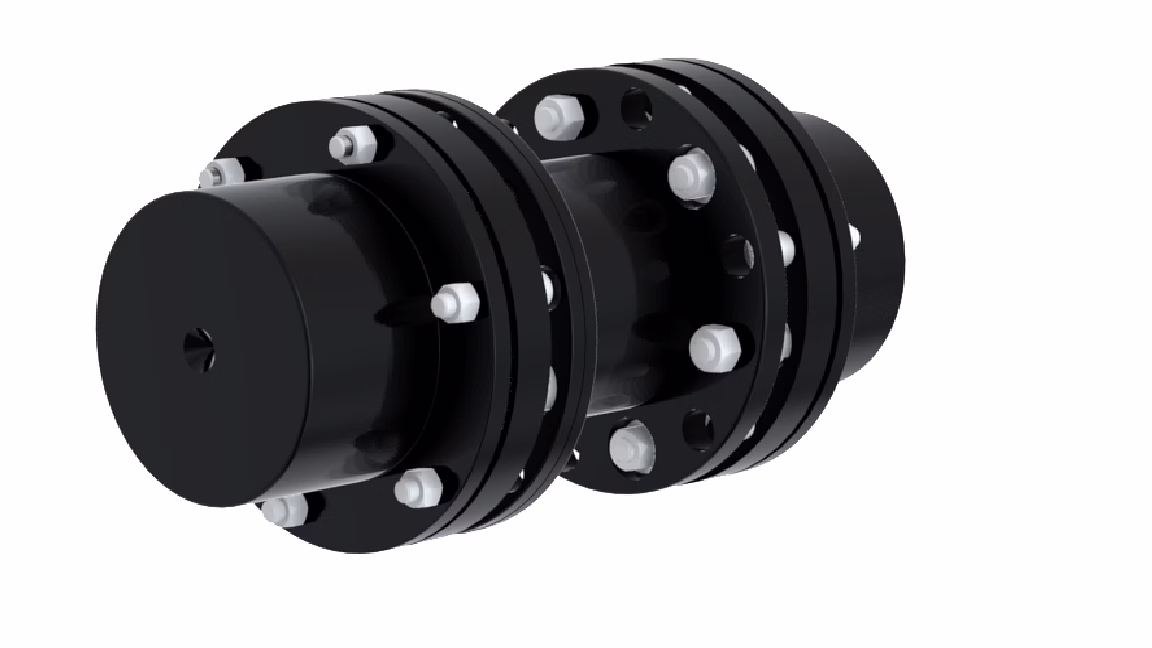

The Esco Disc Coupling DPU Series is a robust, maintenance-free coupling solution designed for high torque transmission applications. Featuring a non-lubricated, all-metal disc pack assembly made of full hard AISI 301 stainless steel, this coupling provides exceptional torsional stiffness and durability. The torque is transferred through alternating discs positioned between drive and driven flanges, securely fastened on the same bolt circle. With a torque capacity of up to 23,100 Nm and bore sizes reaching 220 mm, the DPU series is engineered to handle demanding industrial applications. Its flexible twin element and spacer design offer inherent dynamic balancing properties, eliminating the need for additional balancing at motor speeds and ensuring smooth operation. The coupling’s misalignment capability is influenced by disc pack thickness, disc material, number and layout of drive bolts, making it versatile for diverse operational requirements. It operates efficiently within a temperature range of -40°C to 270°C and complies with API 610 standards, cementing its suitability for heavy-duty industrial equipment. By integrating the proven ESCO Couplings disc pack design, the DPU series enhances reliability, boosts performance, and extends equipment lifespan, making it ideal for power transmission systems in industries such as manufacturing, power plants, and heavy machinery.
Key Features
| Features | Description |
|---|---|
| Torque Capacity | Up to 23,100 Nm |
| Bore Diameter | Up to 220 mm |
| Material | AISI 301 Full hard stainless steel discs |
| Temperature Range | -40°C to 270°C |
| Design Type | Non-lubricated, all-metal disc pack |
| Maintenance | Maintenance free |
| Balancing | Inherent balancing with no additional balancing needed at motor speeds |
| Compliance | Meets API 610 standards |
| Flexible Elements | Two flexible disc elements plus spacer for misalignment absorption |
| Torque Transmission Method | Torque transmitted via alternating discs between drive and driven flanges on the same bolt circle |
| Attributes | Description |
|---|---|
| Model Series | Esco Disc Coupling DPU Series |
| Disc Material | AISI 301 full hard stainless steel |
| Maximum Torque | 23,100 Nm |
| Maximum Bore Size | 220 mm |
| Temperature Operating Range | -40°C to 270°C |
| Number of Flexible Elements | Two plus spacer |
| Maintenance Requirement | Maintenance free |
| Balancing Requirement | Inherent balancing, no additional balancing needed |
| Standards Compliance | API 610 |
| Coupling Type | Disc coupling, all-metal, non-lubricated |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The misalignment capacity depends on disc pack thickness, disc material, number of drive bolts, and spacing between bolts in the DPU series couplings.
No, the Esco Disc Coupling DPU Series is a non-lubricated and maintenance-free coupling designed for ease of long-term operation.
The DPU series uses two flexible disc elements and a spacer to provide inherent balancing properties, often eliminating the need for additional balancing at motor speeds.
The Esco Disc Coupling DPU Series complies with API 610 standards, ensuring suitability for heavy-duty industrial applications.
It can operate efficiently within a temperature range of -40°C to 270°C, suitable for various industrial environments.
The maximum bore size available is up to 220 mm, accommodating a wide range of shaft diameters.
Country Of Origin: India

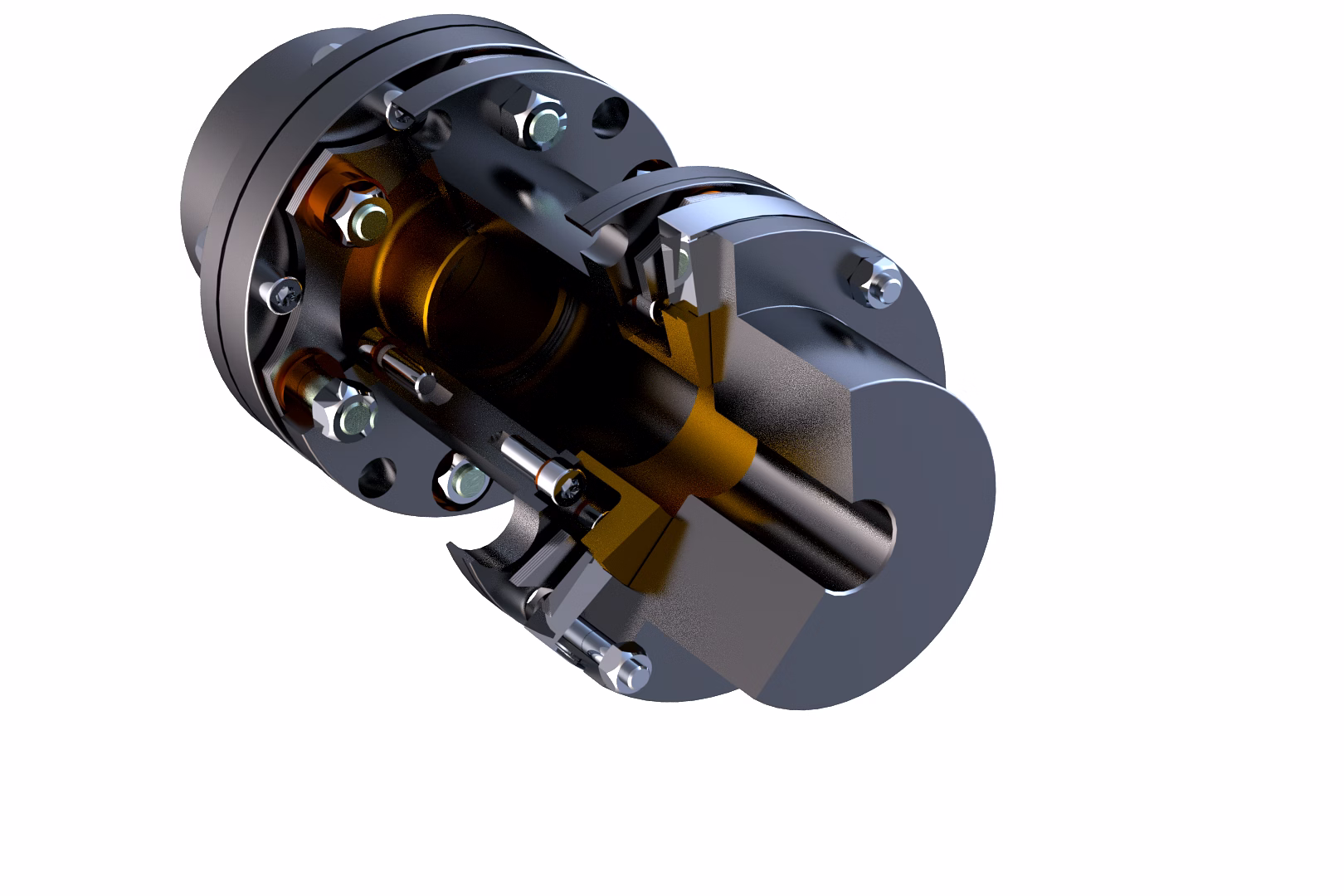

Disc couplings are non-lubricated, all-metal components known for their remarkable torsional stiffness. They rely on torque transmission through discs, which alternate between the drive and driven flanges on the same bolt circle within the disc pack assembly. The coupling's misalignment capacity hinges on factors like pack thickness, disc material, the number of drive bolts, and the span between them. The total torque capacity, on the other hand, is determined by the disc pack thickness, total drive bolts, and their arrangement.
Escodisc couplings usually feature two flexible elements and a spacer, ensuring excellent inherent balancing properties and often negating the need for additional balancing at motor speeds. These couplings comply with API 610 standards. The ESCODISC DPU series leverages ESCO Couplings' original disc pack design, enhancing reliability, performance, and equipment longevity.
Features:
Temperature range -40°C to 270°C
AISI 301 Full hard stainless-steel discs
Torque up to 23,100 Nm
Bore up to 220 mm
Maintenance Free
