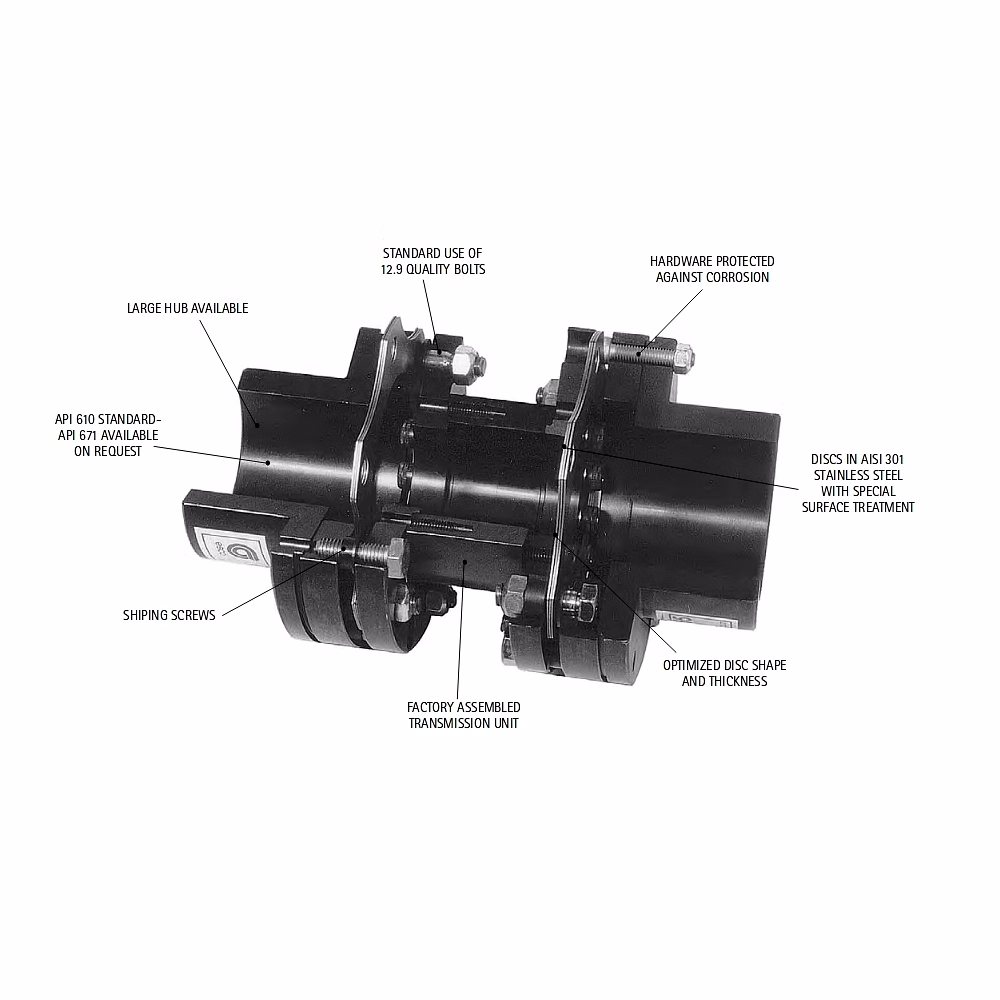

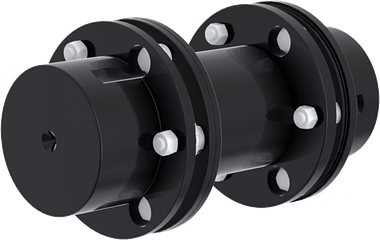

The Esco Disc Coupling DMU Series is a high-performance, non-lubricated, all-metal disc coupling designed for efficient torque transmission with superior torsional stiffness. This coupling utilizes alternating discs positioned between the drive and driven flanges on the same bolt circle, ensuring optimized torque transfer across the disc pack assembly. The coupling accommodates misalignment based on critical design parameters such as pack thickness, disc material, number and placement of drive bolts, allowing it to maintain operational reliability in diverse industrial conditions. Capable of handling torque loads up to 260,000 Nm and bore sizes reaching 370 mm, the DMU Series provides exceptional balance up to AGMA class 9 for sizes up to 85, significantly reducing maintenance requirements and lowering lifecycle costs. The coupling incorporates special plated hardware, with black oxidized and oiled steel components to resist corrosion and extend product durability, making it a highly versatile solution for a myriad of demanding industrial coupling applications.
Key Features
| Features | Description |
|---|---|
| Maximum Torque Capacity | Up to 260,000 Nm |
| Bore Diameter | Up to 370 mm |
| Material & Finish | Black oxidized steel parts with oil protection and special plated hardware |
| Torsional Stiffness | High torsional stiffness through disc pack assembly |
| Misalignment Compensation | Dependent on disc pack thickness, material, number and arrangement of drive bolts |
| Balance Quality | Up to AGMA Class 9 for sizes up to 85 |
| Maintenance | Maintenance-free operation |
| Attributes | Description |
|---|---|
| Torque Capacity | Up to 260,000 Nm (custom sizes available upon request) |
| Maximum Bore Size | 370 mm |
| Material Composition | All-metal disc packs with black oxidized steel, oiled and plated hardware |
| Coupling Type | Disc Coupling (Non-lubricated) |
| Misalignment Tolerance | Dependent on pack thickness, disc material, drive bolt number and spacing |
| Balance Standard | Up to AGMA Class 9 (sizes up to 85) |
| Maintenance Requirement | Maintenance-free |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The misalignment capacity depends on the disc pack thickness, disc material, number of drive bolts, and the spacing between these bolts.
Yes, it achieves a high degree of inherent balance up to AGMA class 9 for sizes up to 85, making it suitable for precision-critical applications.
No, the DMU Series is a non-lubricated, maintenance-free coupling ensuring reduced lifecycle cost and minimal maintenance.
The steel parts are black oxidized and oiled for corrosion protection, and the hardware is specially plated for enhanced durability.
Yes, larger torque capacities beyond 260,000 Nm can be accommodated upon request.
Country Of Origin: India

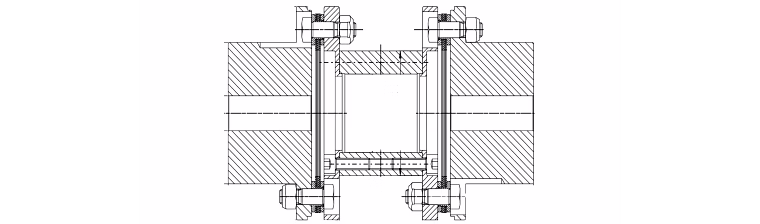

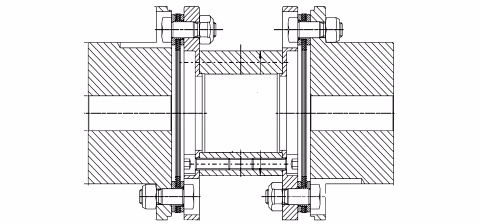

Disc couplings are non-lubricated, all-metal components known for their remarkable torsional stiffness. They rely on torque transmission through discs, which alternate between the drive and driven flanges on the same bolt circle within the disc pack assembly. The coupling's misalignment capacity hinges on factors like pack thickness, disc material, the number of drive bolts, and the span between them. The total torque capacity, on the other hand, is determined by the disc pack thickness, total drive bolts, and their arrangement.
ESCODISC DMU series is a versatile solution, suitable for various applications up to 260,000 Nm (and even larger on request). With impressive torque, bore, and misalignment capabilities, and a high degree of inherent balance (up to AGMA class 9 for sizes up to 85), it excels in reducing maintenance and life cycle costs, making it an ideal choice for a wide range of industrial needs.
